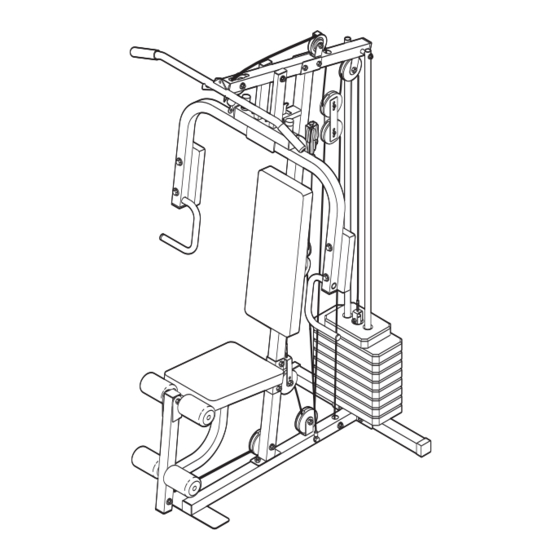

Weider 8950 User Manual

Uk manual
Hide thumbs Also See for 8950:

Advertisement

Quick Links

Model No. WEEMSY18220
Serial No.
Write the serial number in the
space above for future reference.
Serial Number Decal (Under Seat)
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you have
questions, or if there are missing
parts, please call:
08457 089 009
Or write:
ICON Health & Fitness, Ltd.
Unit 4
Revie Road Industrial Estate
Revie Road
Beeston
Leeds, LS118JG
UK
email: csuk@iconeurope.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL
Visit our website at
www.iconeurope.com

Advertisement

loading

Related Manuals for Weider 8950

Summary of Contents for Weider 8950

  • Page 1 Model No. WEEMSY18220 USER'S MANUAL Serial No. Write the serial number in the space above for future reference. Serial Number Decal (Under Seat) QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction. If you have questions, or if there are missing parts, please call: 08457 089 009 Or write:...

  • Page 2: Table Of Contents

    Note: A PART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING are attached in the centre of this manual. Remove the PART IDENTIFICATION CHART and the PART LIST/EXPLODED DRAWING before beginning assembly. WEIDER is a registered trademark of ICON Health & Fitness, Inc.

  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read the following important precau- tions before using the weight system. 1. Read all instructions in this manual and in 12. Make sure that the cables remain on the pul- the accompanying literature before using the leys at all times.

  • Page 4: Before You Begin

    (see the front tem, the WEIDER ® 8950 weight system will help you to cover of this manual for the location of the decal). achieve the results you want. Before reading further, please review the drawing...

  • Page 5: Assembly

    ASSEMBLY • As you assemble the weight system, make sure Make Things Easier for Yourself all parts are oriented as shown in the drawings. Everything in this manual is designed to ensure • For help identifying small parts, use the PART that the weight system can be assembled suc- IDENTIFICATION CHART.
  • Page 6 2. Attach the Upright (3) to the Base (1) with the two M8 x 63mm Carriage Bolts (58) and two M8 Nylon Locknuts (69). Do not tighten the Locknuts yet. Press a 25mm x 50mm Inner Cap (25) into the tube on the Upright (3).
  • Page 7 4. Slide the eight Weights (15) onto the Weight Guides (10), with the slot for the Weight Pin (not shown) on the bottom and on the side away from the Upright (3). Insert the Weight Tube Bumper (13) into the bot- tom of the Weight Tube (12).
  • Page 8 ARM ASSEMBLY Lubricate 7. Press two 45mm Square Inner Caps (24) into the Warning Leg Lever (9). Decal Lubricate an M10 x 73mm Bolt (74) with grease. Attach the Leg Lever (9) to the Seat Frame (8) with the Bolt and an M10 Nylon Locknut (68). Make sure the warning decal is in the indicat- ed position.
  • Page 9 10. Insert the post on the Left Arm (7) through the hole in the Press Frame (5). Be sure the Arm is behind the indicated bracket on the Press Frame. Slot Slide a 25mm Washer (29) over the post on the Left Arm (7).
  • Page 10 14. Wrap the High Cable (50) over a 90mm Pulley (34). Attach the Pulley and a pair of Pulley Covers (35) to the bracket on the Top Frame (4) with an M10 x 52mm Bolt (52) and an M10 Nylon Locknut (68).
  • Page 11 18. Wrap the Press Cable (49) under a 90mm Pulley (34). Attach the Pulley and a pair of Pulley Covers (35) to the Offset Double “U”-bracket (42) with an M10 x 52mm Bolt (52) and an M10 Nylon Locknut (68). Make sure the small tabs on the Pulley Covers are on top.
  • Page 12 22. Wrap the Short Cable (47) over a 90mm Pulley (34). Attach the Pulley and a pair of Pulley Covers (35) to the Offset Double “U”-bracket (42) with an M10 x 52mm Bolt (52) and an M10 Nylon Locknut (68). Make sure the small tabs on the Pulley Covers are on bottom.
  • Page 13 26. Wrap the Low Cable (48) under a 90mm Pulley (34). Attach the Pulley and a pair of Pulley Covers (35) to the bracket on the Base (1) with an M10 x 52mm Bolt (52) and an M10 Nylon Locknut (68). Make sure the small tabs on the Pulley Covers are on top.
  • Page 14 SEAT ASSEMBLY 30. Attach the Backrest (18) to the Upright (3) with two M6 x 63mm Screws (67) and two M6 Washers (73). 31. Attach the Seat (19), oriented as shown, to the Seat Frame (8) with four M6 x 16mm Screws (40).

  • Page 15: Adjustments

    ADJUSTMENTS This section explains how to adjust the weight system. Refer to the accompanying exercise guide to see the cor- rect form for each exercise. Make sure all parts are properly tightened each time the weight system is used. Replace any worn parts immediate- ly.

  • Page 16: Weight Resistance Chart

    WEIGHT RESISTANCE CHART The chart below shows the approximate weight resistance at each exercise station. “Top” refers to the 6-lb. top weight. The other numbers refer to the 12.5-lb. weight plates. Weight resistance shown for the butterfly arm sta- tion is for each butterfly arm. Note: The actual resistance at each station may vary due to differences in individual weight plates as well as friction between the cables, pulleys, and weight guides.

  • Page 17: Cable Diagram

    CABLE DIAGRAMS The cable diagrams below show the proper routing of the Short Cable (47), the Low Cable (48), the Press Cable (49), and the High Cable (50). Use the diagrams to make sure that the cables have been assembled correctly. If the cables have not been correctly routed, the weight system will not function properly and damage may occur.

  • Page 18: Troubleshooting And Maintenance

    TROUBLESHOOTING AND MAINTENANCE TIGHTENING THE CABLES Woven cable, the type of cable used on the weight system, can stretch slightly when it is first used. If there is slack in the cables before resistance is felt, the cables should be tightened. Slack can be removed by moving a 90mm Pulley (not shown) and a pair of Pulley Covers (35) to a set of holes closer to the centre of the two Pulley Plates...
  • Page 19 NOTES...

  • Page 20: Ordering Replacement Parts

    Fax: 0 (044) 113 387 7125 Please provide the following information when ordering replacement parts: • The MODEL NUMBER of the product (WEEMSY18220) • The NAME of the product (WEIDER 8950 weight system) ® • The SERIAL NUMBER of the product (see the front cover of this manual) •...
  • Page 21 This chart is provided to help you identify the small parts used in assembly. The number in parenthesis below each part refers to the key number of the part from the PART LIST in the centre of this manual. Important: Some parts may have been pre-assembled for shipping purposes.
  • Page 22 PART IDENTIFICATION CHART—Model No. WEEMSY18220 R0504A M8 Nylon Locknut (69) M10 Nylon Locknut (68) 19mm Round Inner Cap (22) M6 Nylon Locknut (72) M10 x 22mm Spacer (51) 25mm Round Outer Cap (27) M10 x 12.5mm Spacer (37) 25mm Round Inner Cap (23) 25mm x 50mm Inner Cap (25) 38mm x 50mm Round Bushing (28) 45mm Square Inner Cap (24)
  • Page 23 M6 x 63mm Screw (67) M8 x 63mm Bolt (66) M6 x 58mm Bolt (65) M8 x 64mm Shoulder Bolt (56) M10 x 65mm Bolt (55) M10 x 52mm Bolt (52) M6 Washer (73) M8 x 63mm Carriage Bolt (58) M10 x 50mm Bolt (53) M8 x 68mm Bolt (63) M8 x 45mm Bolt (60)
  • Page 24 REMOVE THIS PART LIST/EXPLODED DRAWING FROM THE MANUAL. SAVE THIS PART LIST/EXPLODED DRAWING FOR FUTURE REFERENCE...
  • Page 25 PART LIST—Model No. WEEMSY18220 R0504A Key No. Qty. Description Key No. Qty. Description Base M6 x 16mm Screw Stabiliser 50mm Square Outer Cap Upright Offset Double “U”-bracket Top Frame “U”-bracket Press Frame Pulley Plate Right Arm Pad Tube Left Arm M10 x 100mm Bolt Seat Frame Short Cable...
