QuickSpecs
Overview
1.
Dual microphone array
2.
2.0 MP Webcam (optional)
3.
Webcam Activity LED (only on models with Webcam)
4.
21-inch diagonal Full HD capable screen
5.
Optical drive opening
6.
Power button
7.
Capacitive Controls for Brightness, Volume, Mic Mute, Speaker Mute
8.
Stand (can be configured with no stand, basic stand, or height adjustable/reclining stand)
HP COMPAQ PRO 6300 ALL-IN-ONE PC
DA - 14351 Worldwide — Version 35 — November 21, 2013
HP COMPAQ PRO 6300 ALL-IN-ONE PC

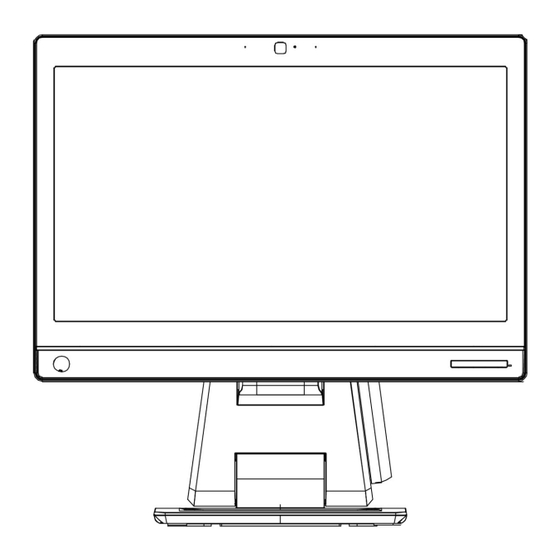

FRONT
Page 1

Advertisement

Table of Contents
loading

Related Manuals for HP PC

Summary of Contents for HP PC

  • Page 1 QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Overview HP COMPAQ PRO 6300 ALL-IN-ONE PC FRONT Dual microphone array 2.0 MP Webcam (optional) Webcam Activity LED (only on models with Webcam) 21-inch diagonal Full HD capable screen Optical drive opening Power button...
  • Page 2 QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Overview HP COMPAQ PRO 6300 ALL-IN-ONE PC BACK Vent slots Side venting SD Media Card Reader (optional) (2) USB 3.0 ports Mic input jack Headphone jack Access panel latches Rear port cover DA - 14351 Worldwide — Version 35 — November 21, 2013...
  • Page 3 QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Overview HP COMPAQ PRO 6300 ALL-IN-ONE PC REAR PORTS (BEHIND COVER) Security lock slot Power connector PS/2 mouse and keyboard connectors (2) USB 2.0 ports (2) USB 3.0 ports DisplayPort connector RJ-45 Gigabit Ethernet port Stereo line out DA - 14351 Worldwide —...
  • Page 4 QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Overview HP COMPAQ PRO 6300 ALL-IN-ONE PC SIDE Slim tray-load optical drive Security screw Optional serial port Power button DA - 14351 Worldwide — Version 35 — November 21, 2013 Page 4...
  • Page 5 QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Overview At A Glance Windows 7 or Windows 8 UEFI BIOS developed and engineered by HP for better security, manageability and software image stability Integrated all-in-one form factor 21.5-inch Full HD (1920 x 1080) diagonal widescreen WLED backlit anti-glare LCD...

  • Page 6: Operating System

    QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Standard Features and Configurable Components (availability may vary by country) OPERATING SYSTEM Preinstalled Windows 8 Pro (64-bit)* Windows 8 (64-bit)* Windows® 7 Ultimate (32-bit)** Windows® 7 Ultimate (64-bit)** Windows® 7 Professional (32-bit)** Windows® 7 Professional (64-bit)** Windows®...
  • Page 7 QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Standard Features and Configurable Components (availability may vary by country) Intel® Core™ i5-3475S Up to 3.6 GHz Max. Turbo Frequency (2.9 GHz base frequency), 6 MB cache, 4 cores, 4 threads Intel HD Graphics 4000...
  • Page 8 QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Standard Features and Configurable Components (availability may vary by country) Intel® Pentium® G860 3.0 GHz base frequency, 3 MB cache, 2 cores, 2 threads Intel HD Graphics Supports DDR3 memory up to 1333 MT/s data rate Intel®...
  • Page 9 QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Standard Features and Configurable Components (availability may vary by country) CHIPSET Intel® Q75 INTEL® STANDARD MANAGEABILITY Includes DASH 1.0/1.1 compliance plus: System Defense Agent Presence SOL/IDE Redirection CISCO NAC/SDN support ME Wake on LAN...

  • Page 10: Wireless Display

    QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Standard Features and Configurable Components (availability may vary by country) NVIDIA GeForce GT 630M 2GB DDR3 MXM Graphics Graphics controller NVIDIA GF108 Core clock 675MHz Memory clock 900MHz Memory frame buffer 2GB, DDR3, 128-bit wide...
  • Page 11 QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Standard Features and Configurable Components (availability may vary by country) Anti-glare Default color temperature Warm (6500K) NOTE: All performance specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower.
  • Page 12 QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Standard Features and Configurable Components (availability may vary by country) Media Card Reader (optional) 4-in-1 PCIe Interface Supports Secure Digital (SD, SDHC), Memory Stick, Memory Stick Pro MEMORY Type Non-ECC, DDR3 SDRAM, 1600 MT/s, SODIMM...
  • Page 13 QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Standard Features and Configurable Components (availability may vary by country) AUDIO/MULTIMEDIA SRS Premium Sound™ (optional) IDT 92HD91 Audio - 16 & 24-bit PCM High performance integrated stereo speakers Volume control and mute buttons...
  • Page 14 Key features of the HP BIOS include: Deployment and manageability - HP BIOS provides several technologies that help integrate the HP Compaq Pro 6300 Business PC into the enterprise, such as PXE, remote configuration, remote control, and F10 Setup support for 12 languages.
  • Page 15 POWER Internal 180W, 90% efficient, active PFC 100-240V AC HP Power Assistant software (optional) Provides real-time reporting of how system settings impact the energy consumed by the PC and the potential savings over time. SOFTWARE Included Windows 8 Windows 7...
  • Page 16 QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Standard Features and Configurable Components (availability may vary by country) Camera News Sports Weather Maps Finance Bing (Search) Productivity Buy Office Buy Office MS Office 2013***** MS Office 2013***** HP Additions SRS Premium Sound*****...

  • Page 17: Weights And Dimensions

    QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Standard Features and Configurable Components (availability may vary by country) *** Requires an Internet connection to HP web-enabled printer and HP ePrint account registration (for a list of eligible printers, supported documents and image types and other HP ePrint details, see www.hp.com/go/eprintcenter).Requires optional broadband module.
  • Page 18 QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Standard Features and Configurable Components (availability may vary by country) Height adjustable/reclining stand Height adjustable/reclining stand (12 units) 40.92 lbs 491.10 lbs 18.56 kg 222.72 kg Without stand Without stand (18 units) 26.24 lbs 503.80 lbs...
  • Page 19 QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Standard Features and Configurable Components (availability may vary by country) DA - 14351 Worldwide — Version 35 — November 21, 2013 Page 19...
  • Page 20 QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Standard Features and Configurable Components (availability may vary by country) HEIGHT ADJUSTABLE/RECLINING STAND DIMENSIONS TEMPERATURE, HUMIDITY, ALTITUDE Temperature Operating 50° to 95° F (10° to 35° C) Non-operating -22° to 140° F(-30° to 60° C)
  • Page 21 Provides a direct connection between the PC's DisplayPort interface to the display's DisplayPort interface DisplayPort To DVI-D Adapter Provides a connection from the PC's DisplayPort interface to the display's DVI-D interface; adapts the DP output to the DVI-D input DisplayPort To HDMI Adapter Provides a connection from the PC's DisplayPort interface to the display's HDMI interface;...

  • Page 22: Service And Support

    QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Standard Features and Configurable Components (availability may vary by country) SERVICE AND SUPPORT On-site Warranty : Three-year (3-3-3) limited warranty delivers three years of on-site, next business day service for parts and labor and includes free telephone support 24 x 7.

  • Page 23: Technical Specifications - Graphics

    QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Technical Specifications - Graphics Intel HD Graphics VGA Controller Integrated DisplayPort 1.1a; integrated, multimode capable; supports HDCP and audio over DisplayPort Bus Type PCI Express x16 RAMDAC Integrated, 350 MHz Memory Intel graphics do not have dedicated memory but utilizes some of the computer's system memory The amount of memory used for graphics depending on the amount of system memory installed, BIOS settings, operating system, and system load.
  • Page 24 QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Technical Specifications - Graphics Full AVC/VC1/MPEG2 HW Decode Advanced Scheduler 2.0, 1.0, XPDM support Windows 7, XP, Windows Vista, OSX, Linux OS Support DirectX 10.1, DirectX 10, DirectX 9 support OpenGL 3.0 support...
  • Page 25 QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Technical Specifications - Graphics AMD Radeon HD 7650A Graphics Card Form Factor MXM 3.0 Graphics Controller AMD Radeon HD 7650A Core Clock 600MHz Memory Clock 800MHz Memory 2GB, DDR3, 128-bit wide Bus Type Max.
  • Page 26 QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Technical Specifications - Graphics Supported Display Resolutions and Refresh Rates NOTE: other resolutions may be available but are not recommended as they may not have been tested and qualified by HP Resolution Refresh Rates...

  • Page 27: Technical Specifications - Hard Disk And Solid State Storage

    A next-generation technology, the SATA interface connects hard drives to the PC platform enabling easy aggregation of multiple hard drives into a single PC. This offers you the additional benefits of dedicated bandwidth, the ability to more easily identify device failures and scalability.
  • Page 28 QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Technical Specifications – Hard Disk and Solid State Storage HP 250-GB 7.2K SATA 6.0Gb/s 3.5" Hard Disk Drive Capacity 250,059,350,016 bytes Rotational Speed 7,200 rpm Interface Serial ATA 3.0 (6.0 Gb/s) Buffer Size...
  • Page 29 QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Technical Specifications – Hard Disk and Solid State Storage HP 1-TB 7.2K rpm SATA 6.0Gb/s 3.5” Hard Disk Drive Capacity 1,000,204,886,016 bytes Rotational Speed 7,200 rpm Interface Serial ATA 3.0 (6.0 Gb/s) Buffer Size...
  • Page 30 QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Technical Specifications – Hard Disk and Solid State Storage HP 500-GB 7.2K SATA 6.0Gb/s 2.5" Hard Disk Drive Capacity 500,107,862,016 bytes Rotational Speed 7,200 rpm Interface Serial ATA 2.0 (3.0 Gb/s) Buffer Size...
  • Page 31 QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Technical Specifications – Hard Disk and Solid State Storage HP 128 GB Solid State Drive Unformatted Capacity 128 GB* Architecture Multi Level Cell (MLC) NAND Interface SATA 6 GB/sec Dimensions (W x H x D) 2.75 x 0.276 x 3.96 in (6.985 x 0.7 x 10.05 cm)

  • Page 32: Technical Specifications - Removable Storage

    QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Technical Specifications - Removable Storage HP Slim SuperMulti DVD Writer Drive Height 12.7mm height Orientation Either horizontal or vertical Interface type SATA/ATAPI Disc recording capacity Up to 8.5 GB DL or 4.7 GB standard Dimensions (W x H x D) 5.0 x 0.5 x 5.0 in (128 x 13.6 x 129 mm)
  • Page 33 QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Technical Specifications - Removable Storage DC Power Requirement 5 VDC ± 5%-100 mV ripple p-p 12 VDC ± 5%-200 mV ripple p-p Power DC Current 5 VDC (< 1000 mA typical, 1600 mA maximum) 12 VDC (<...
  • Page 34 QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Technical Specifications - Removable Storage Total Drive Power < 2.5 Watt (standby mode) Line-Out 0.7 VRMS Audio output Signal-to-Noise Ratio 74 dB Channel Separation 65 dB Temperature 41° to 122° F (5° to 50° C)

  • Page 35: Memory Configurations

    System Memory Support The HP Compaq Pro 6300 Business PC supports the 2nd and 3rd generation Intel® Core™ processor families. Based on a new PC micro- architecture, the processor is designed for a two-chip platform consisting of a processor and Platform Controller Hub (PCH). Unlike previous generations, the processor includes an integrated memory controller (IMC).

  • Page 36: Technical Specifications - Communications

    QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Technical Specifications - Communications Intel 82579LM GbE Network Connection (integrated) Connector RJ-45 System Interface Integrated on PCA Controller Intel 82579LM GbE platform LAN connect networking controller Memory 24 KB FIFO packet buffer memory...
  • Page 37 QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Technical Specifications - Communications Data Rates 802.11b: 1, 2, 5.5, 11 Mbps 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n: 66 possible data rates, ranging from 6 Mbps to 300 Mbps, depending on the combination of Bandwidth, Modulation Coding Scheme, and Guard Interval used, as defined in IEEE 802.11n...

  • Page 38: Configuration Utility

    Platform/WLAN Mode Power Consumption Not configured (PC on and NIC is powered. 160 mW Adaptor not configured.) Disabled (PC on and NIC is powered. Adaptor is 86 mW configured but disabled) Tx (Average power consumption measured while HT20 - 1670 mW adaptor is transmitting a packet.)
  • Page 39 QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Technical Specifications - Communications HP 802.11a/b/g/n Wireless Minicard with Bluetooth Combo Dimensions (L x H) 1.18 x 1.06 in (30 x 26.8 mm) Controller Broadcom BCM43228 + BCM20702 System interface PCI Express x1 Network standard 802.11 b/g/n...

  • Page 40: Technical Specifications - Audio

    QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Technical Specifications - Audio IDT 92HD91Audio Type Integrated HD Stereo Codec IDT92HD91 4-channel codec Ports Line-In/Microphone input ports are 50K (nominal) at the pin Line-Out intended to drive an external 10K load (nominal) and an on board shunt resistor of 20-47K...

  • Page 41: Technical Specifications - Keyboards And Pointing Devices

    QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Technical Specifications – Keyboards and Pointing Devices HP USB Keyboard Keys 104, 105, 106, 107, 109 layout (depending upon country) Dimensions Physical characteristics 18.12 x 6.47 x 0.96 in (46.03 x 16.43 x 2.44 cm)
  • Page 42 QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Technical Specifications – Keyboards and Pointing Devices Keyboard Installation Guide Kit contents Warranty Card Safety and Comfort Guide HP PS/2 Keyboard Keys 104, 105, 106, 107, 109 layout (depending upon country) Dimensions 18.12 x 6.47 x 0.96 in (46.03 x 16.43 x 2.44 cm)
  • Page 43 QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Technical Specifications – Keyboards and Pointing Devices Drop (in box) 30 in (107 cm) on concrete, 16-drop sequence Approvals UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, KC Ergonomic compliance...
  • Page 44 QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Technical Specifications – Keyboards and Pointing Devices System interface USB Type A plug connector Electrical CE level 4, 15-kV air discharge EMI - RFI Conforms to FCC rules for a Class B computing device...
  • Page 45 QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Technical Specifications – Keyboards and Pointing Devices Electro-magnetic standards Europe 2004/108/EC USAFCC part 15 Approvals CE-Mark, UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC, EMV2000, USB-IF Ergonomic Compliance ISO 9241-4, TUVGS...
  • Page 46 CE Mark EN 55022:2010; EN 55024; EN 301489-1; EN 61000 System Requirements Design Guidelines for PCs PC 99 - connector overmold colors; PC 2001 - full functionality Telecom All local telecom requirements and approvals for intended markets FCC Title 47 CFR, Par 15, Subpart C; other local requirements...
  • Page 47 QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Technical Specifications – Keyboards and Pointing Devices Estonia, Hungary, Ireland, Latvia, Lithuania, Luxemburg, Malta, Romania, Slovakia, Slovenia, Vietnam, HK, Australia, NZ, Malaysia, Singapore, Indonesia, Philippines, Thailand, Canada, China, Japan, Korea, Taiwan, India, Venezuela, Ecuador, Russia,...
  • Page 48 QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Technical Specifications – Keyboards and Pointing Devices Mechanical Switch life 3,000,000 operations (using Hasco modified tester) Switch type Low force micro-switches Tracking mechanism life 80 km Cable length 6 ft (1.8 m) Microsoft PC99 - 2001...
  • Page 49 QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Technical Specifications – Keyboards and Pointing Devices Mechanical Resolution 1000dpi Tracking Speed 45 cm/sec Cable Length 70.9 in (180 cm) HP USB PS/2 Washable Mouse Dimensions (H x L x W) 1.56 x 2.44 x 4.61 in (3.95 x 6.21 x 11.7 cm) Weight 4.44 oz (126 g)
  • Page 50 QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Technical Specifications – Keyboards and Pointing Devices Regulatory approvals Compliant UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC Compatibility Operating system support Windows 7, Windows Vista Business 64*, Windows Vista Business 32*, Windows Vista Home Basic 32*, Windows 2000, Windows XP Professional or Windows XP Home 32* (No driver is required for this device.

  • Page 51: Environmental Data

    QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Environmental Data Environmental Data Eco-Label Certifications & This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks: Declarations US ENERGY STAR®...
  • Page 52 The PLASTIC/EPE-Expanded Polyethylene packaging material is made from 0% recycled content RoHS Compliance Hewlett-Packard is committed to compliance with all applicable environmental laws and regulations, including the European Union Restriction of Hazardous Substances (RoHS) Directive. HP's goal is to exceed compliance obligations by meeting the requirements of the RoHS Directive on a worldwide basis.

  • Page 53: Hewlett-Packard

    Reduce size and weight of packages to improve transportation fuel efficiency. Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards. End-of-life Management Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic areas. To recycle your product, please go to: http://www.hp.com/go/reuse-recycle...

  • Page 54: Options And Accessories (Sold Separately)

    QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Options and Accessories (sold separately) AFTER MARKET OPTIONS: MEMORY Part Number HP 2GB DDR3-1600 (PC3-12800) SODIMM B4U38AA HP 4GB DDR3-1600 (PC3-12800) SODIMM B4U39AA HP 8GB DDR3-1600 (PC3-12800) SODIMM B4U40AA DATA STORAGE DRIVES AND ACCESSORIES Part Number 1 TB, 7200 rpm, SATA -6.0 Gb/s...
  • Page 55 QuickSpecs HP COMPAQ PRO 6300 ALL-IN-ONE PC Options and Accessories (sold separately) STANDS AND MONITOR ARMS Part Number AiO Height Adjustable and Reclining Stand C1N43AA HP Single Monitor Arm BT861AA HP (Flat Panel Monitor) Quick Release EM870AA All rights reserved. Microsoft, Windows and Windows 7 are registered trademarks or trademarks of Microsoft Corporation in the U.S.
