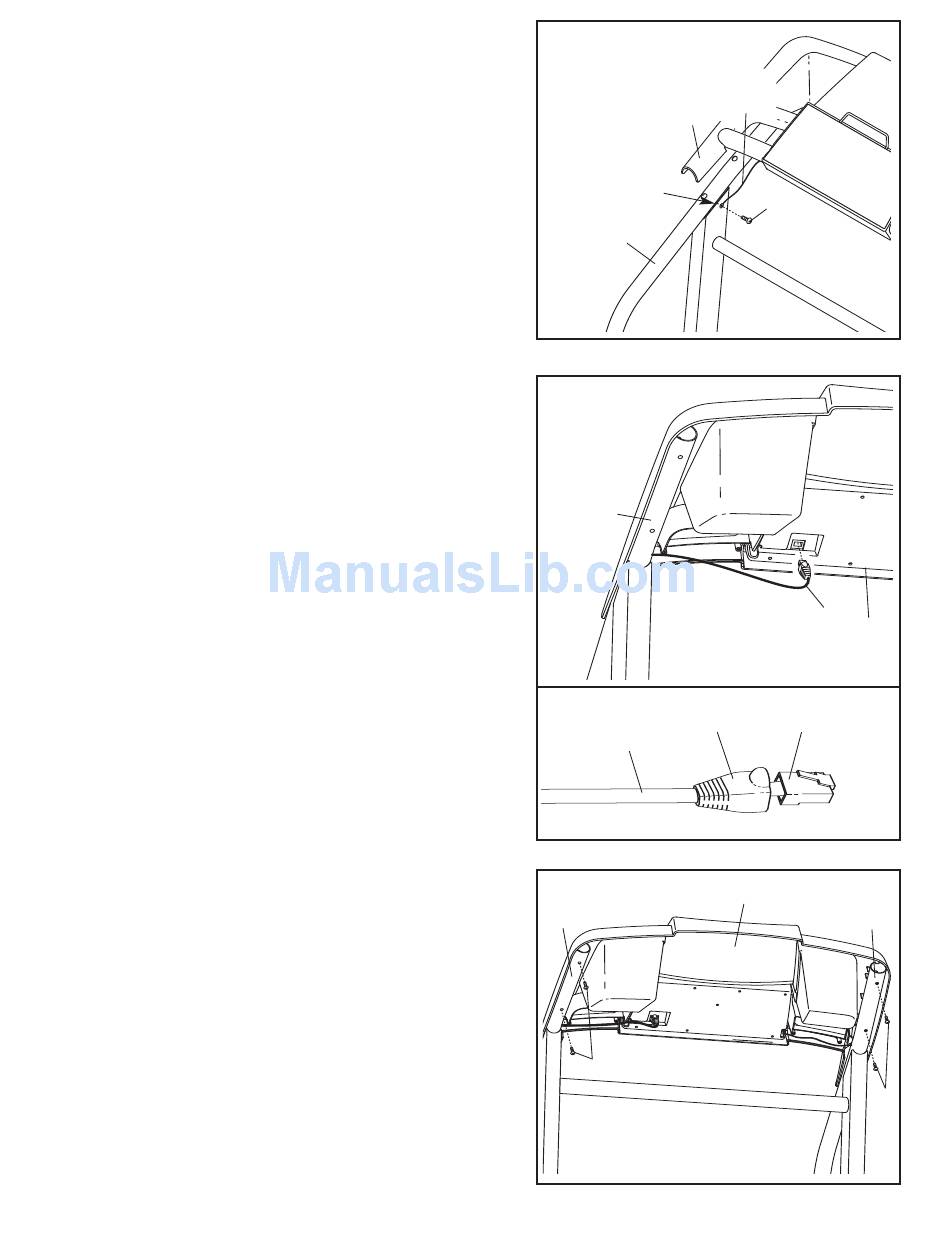

5. Hold the Console Base (47) near the Left Handrail (71).
Attach the end of the ground wire on the Console Base
to the indicated small hole in the Left Handrail with the
Silver Ground Screw (75).
6. Touch the Right Handrail (72) to discharge any static.
Slide the sleeve off the connector as shown in the inset
drawing. Press the end of the Upright Wire (42) into the
socket in the bottom of the Console Base (47). The con-
nector should slide easily into the socket and snap
into place. If the connector does not slide easily and snap
into place, turn the connector and then insert it. Slide the
sleeve back over the connector.
7. Set the Console Base (47) on the Right Handrail (72) and
the Left Handrail (71). Attach the Console Base with four
1/2" Screws (48). Start all four Screws before tighten-
ing them; do not overtighten the Screws.
5
Small
Hole
71
6
72
42
7
72
48
8
Ground
Wire
47
75
42
47
Sleeve Connector
47
71
48
