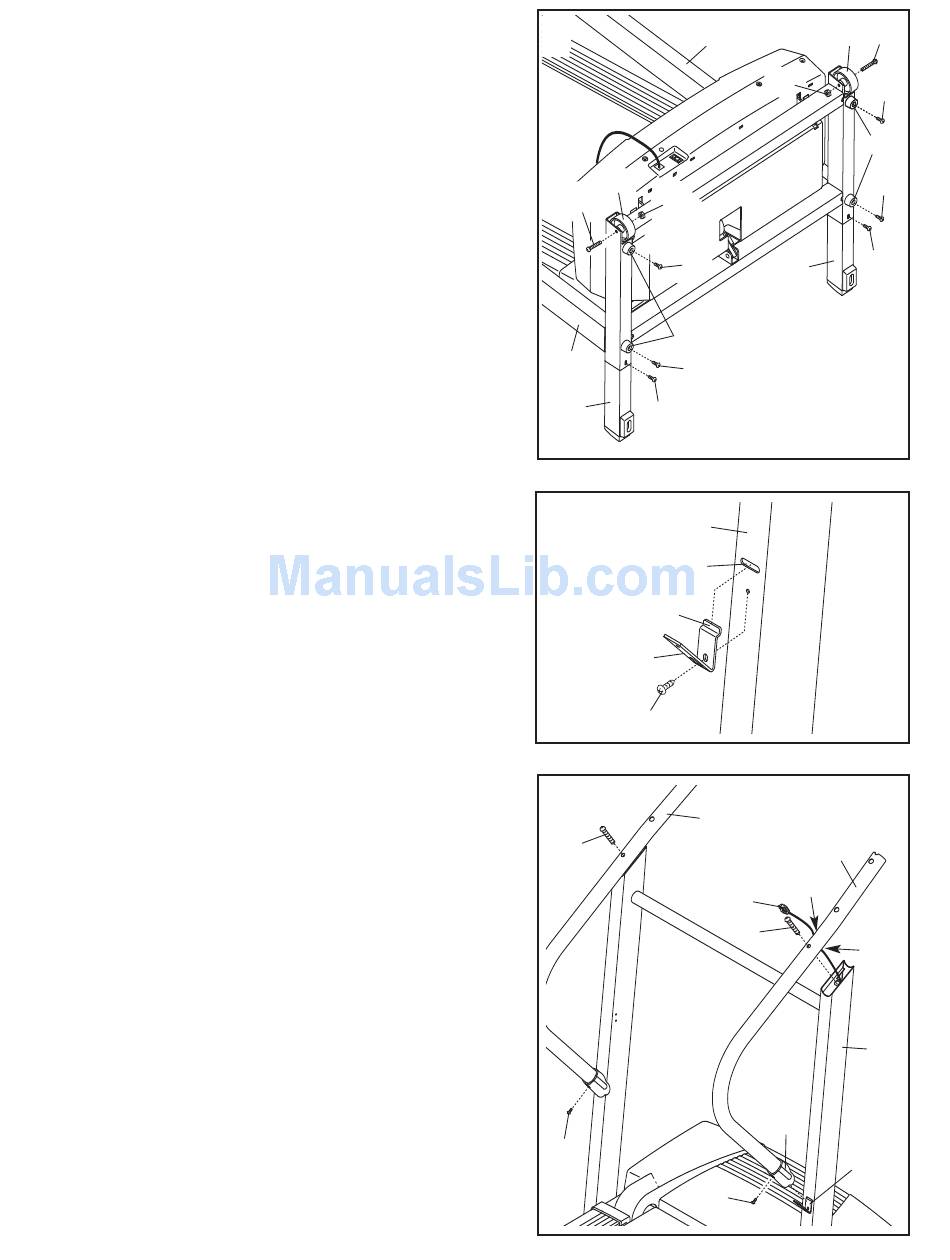

2. With the help of another person, carefully lower the
Uprights (69) to the position shown. Note: It may be
helpful to place one foot on one of the Extension Legs
(63) as you lower the Uprights. Make sure that the
Extension Legs remain in the Uprights.
Attach each Extension Leg (63) with an Extension Leg
Screw (9) in the location shown.
Next, attach four Round Base Pads (57) to the base of
the Uprights (69) with 1" Tek Screws (39) as shown.
Note: One replacement Round Base Pad may be in-
cluded. If a Round Base Pad becomes worn and needs
to be replaced, use the replacement Round Base Pad.
Attach the two Wheels (66) with two 2" Bolts (64) and
two Wheel Nuts (32) as shown. Do not overtighten the
Wheel Nuts; the Wheels should turn freely.
3. With the help of a second person, raise the Uprights (69)
to the vertical position.
Insert the tab on one of the Handrail Brackets (67) into the
slot in the right Upright (69). Attach the Handrail Bracket
with a 3/4" Screw (2). Attach the other Handrail Bracket to
the left Upright (not shown) in the same way.
4. Identify the Right Handrail (72), which has a large hole in
the left side. Feed the Upright Wire (42) into the indicated
hole in the bottom of the Right Handrail and out of the
large hole in the side. Note: It may be helpful to use
needlenose pliers to pull the Upright Wire out of the hole.
Press a Handrail Cap (25) onto the lower end of the
Right Handrail (72) as shown. Set the Right Handrail on
the right Upright (69), and slide the lower end of the
Right Handrail onto the right Handrail Bracket (67).
Attach the Right Handrail (72) with an Upright Bolt (37) in
the upper end and a 3/4" Screw (2) in the lower end.
Attach the Left Handrail (71) as described above. Note:
There is not a wire on the left side.
