Monitor connections

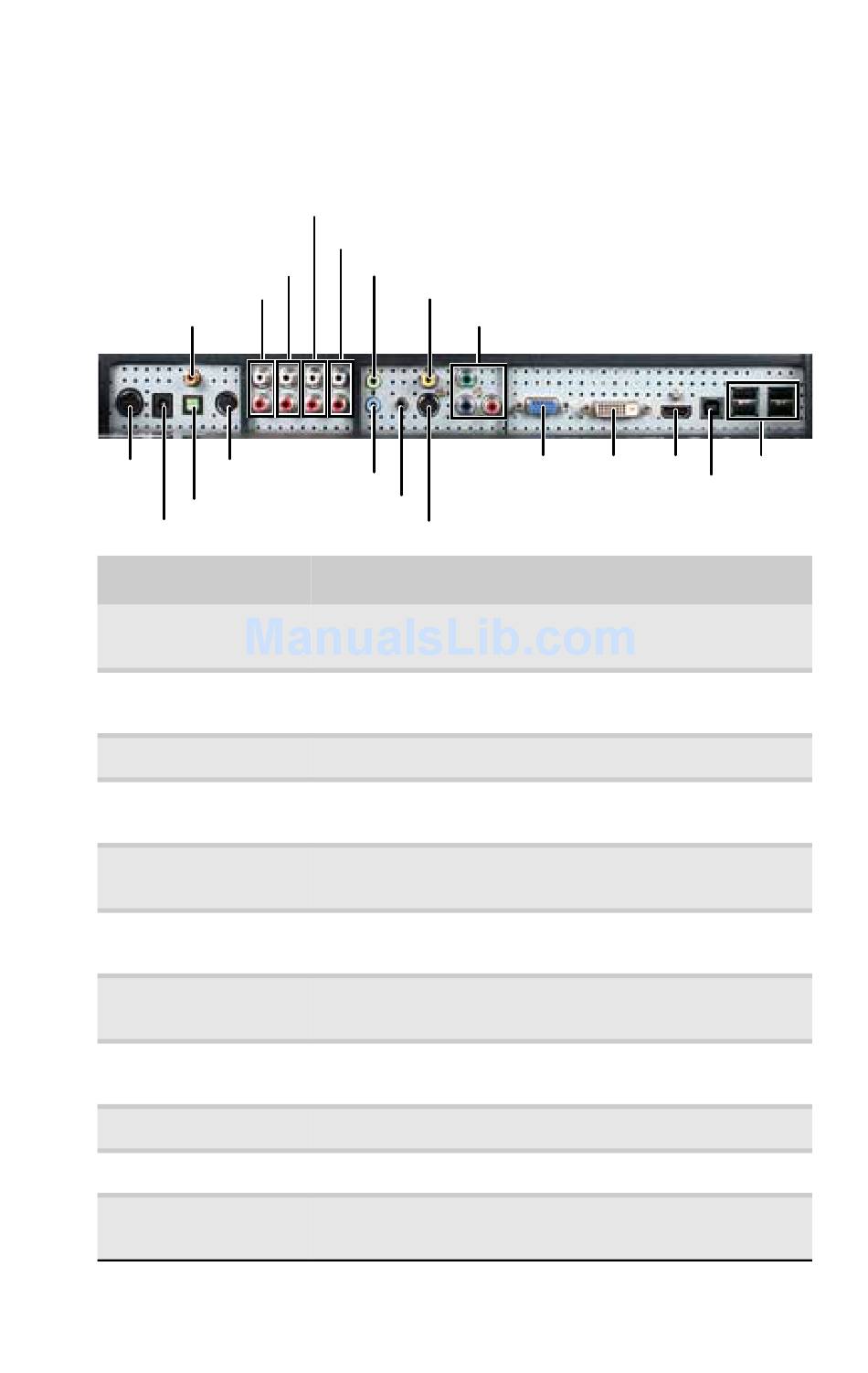

Although this guide covers basic setup, refer to the following
illustration for advanced audio and video setup help.
L/R audio in (composite)
L/R audio in (S-Video)
L/R audio out
S/PDIF coaxial output
Monitor
Speaker bar audio
power
S/PDIF TOSLINK output
Speaker bar power
Connector
S/PDIF coaxial output
L/R audio out
L/R audio in (S-Video)
L/R audio in
(composite video)
L/R audio in
(component video)
DVI mode audio
Composite video
Component video
Monitor power
Speaker bar power
S/PDIF TOSLINK
output
www.gateway.com
L/R audio in (component)
DVI mode audio
Composite video
Component video
VGA mode audio
IR blaster
S-Video
Use
Connect to the S/PDIF (digital) coaxial in jacks on a
device to play the audio on that device.
Connect to the audio in jacks on a standard two-channel
stereo device to play the audio on that device.
Connect to the L/R audio out jacks on the S-Video device.
Connect to the L/R audio out jacks on the composite
video device.
Connect to the L/R audio out jacks on the component
video device.
Connect to the headphone/speakers jack on your
computer for the DVI display mode's audio source.
Connect to the composite video out jacks on a composite
video source, such as a VCR.
Connect to the component video out jacks on a
component video source, such as a high-end DVD player.
Connect to the monitor's AC power adapter.
Connect to the optional speaker bar.
Connect to the S/PDIF TOSLINK (digital optical) audio in
jacks on a device to play the audio on that device.
VGA DVI HDMI
(connect to
computer)
USB-A
(connect to
USB-B
USB
devices)
5
