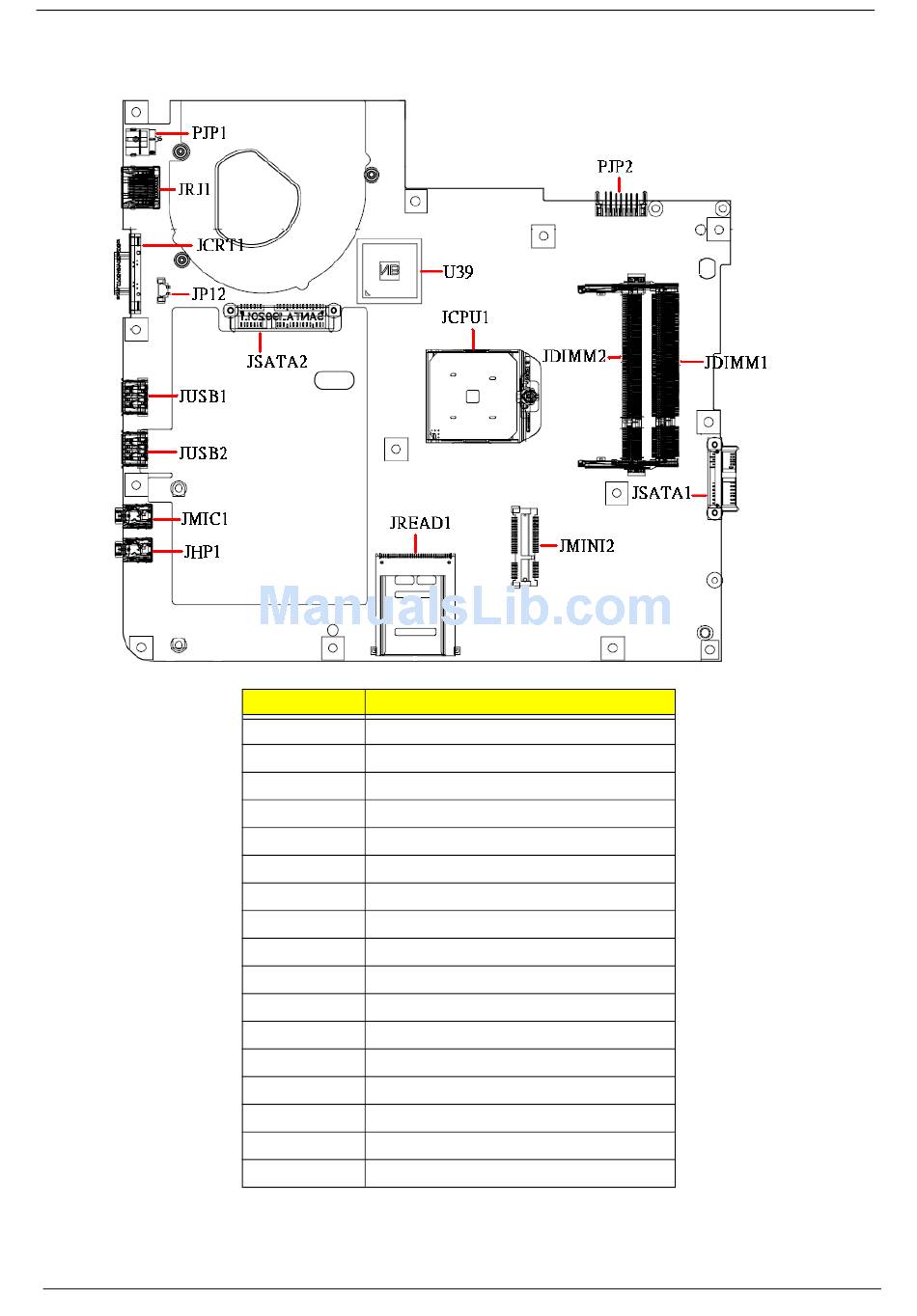

Bottom View
140
ITEM
PJP1
JRJ1
JCRT1
JP12
JUSB1
JUSB2
JMIC1
JHP1
JSATA2
U39
JCPU1
JREAD1
PJP2
JDIMM2
Memory DIMM2 Connector
JDIMM1
Memory DIMM1 Connector
JSATA1
JMINI2
Wireless Card Connector
DESCRIPTION
AC-IN Connector
RJ45 Connector
CRT Connector
Fan Connector
USB Connector
USB Connector
MIC-In Jack
Head-Phone Jack
HDD Connector
North Bridge
CPU Socket
Card Reader Socket
Battery Connector
ODD Connector
Chapter 5
