Gigabit Ethernet ports using QSFP breakout cables. this Cisco Nexus 6004 chassis along with the LEMs
offers incredible flexibility for scaling deployments, making it the only fully extensible fixed 10 and 40
Gigabit Ethernet platform in the industry.

Chassis

The Cisco Nexus 6004 switch chassis is 4 RU, 6.97 inches (17.7 cm) tall, 17.3 inches (43.9 cm) wide,
and 30 inches (76.2 cm) deep.
It is designed to be mounted in a standard 19-inch wide rack. The front of the switch, shown in
Figure

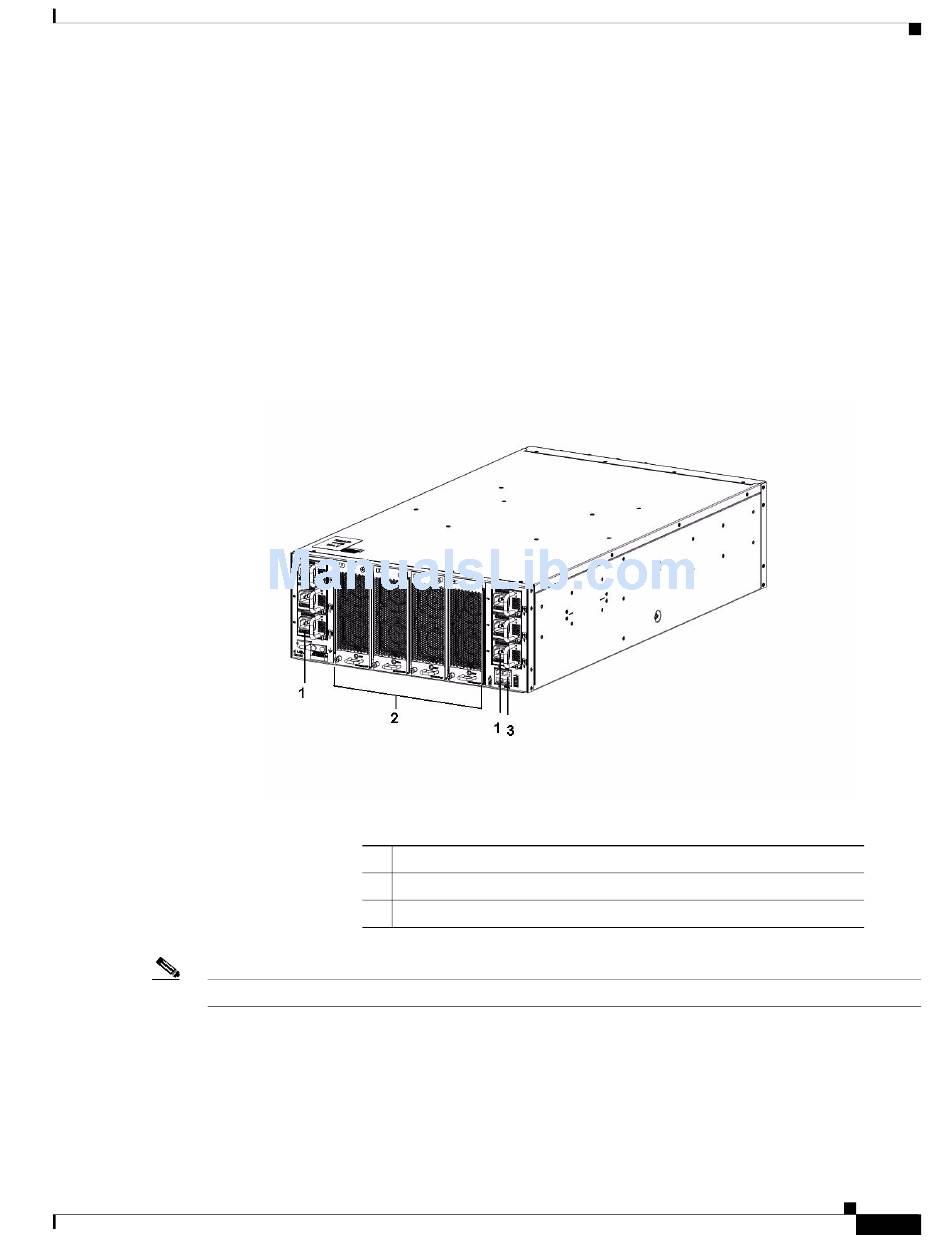

Figure 1-3 Front View of the Cisco Nexus 6004 switch
The fans and power supplies need to be configured.
Note
The rear of the Cisco Nexus 6004 switch (N6K-C6004-96Q) chassis , shown in
10/40-Gigabit Ethernet ports, and four slots for expansion modules.
OL-15902-01
1-3, has a console management port and USBport, six power supplies, and four fan modules.
1 Six power supplies with 3+3 grid redundancy
2 Four fan module with 3+1 redundancy
3
Console Mgmt0 port and USBport
Cisco Nexus 6000 Series Hardware Installation Guide
Cisco Nexus 6004 Switch
Figure 1-4, has 48 fixed
1-7
