Bosch AutoDome100 User Manual

Hide thumbs Also See for AutoDome100:
Table of Contents

Advertisement

Quick Links

Download this manual
Firmware Update Manual
AutoDome 100/600/700/800 and MIC Series 550
en
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Bosch AutoDome100

Summary of Contents for Bosch AutoDome100

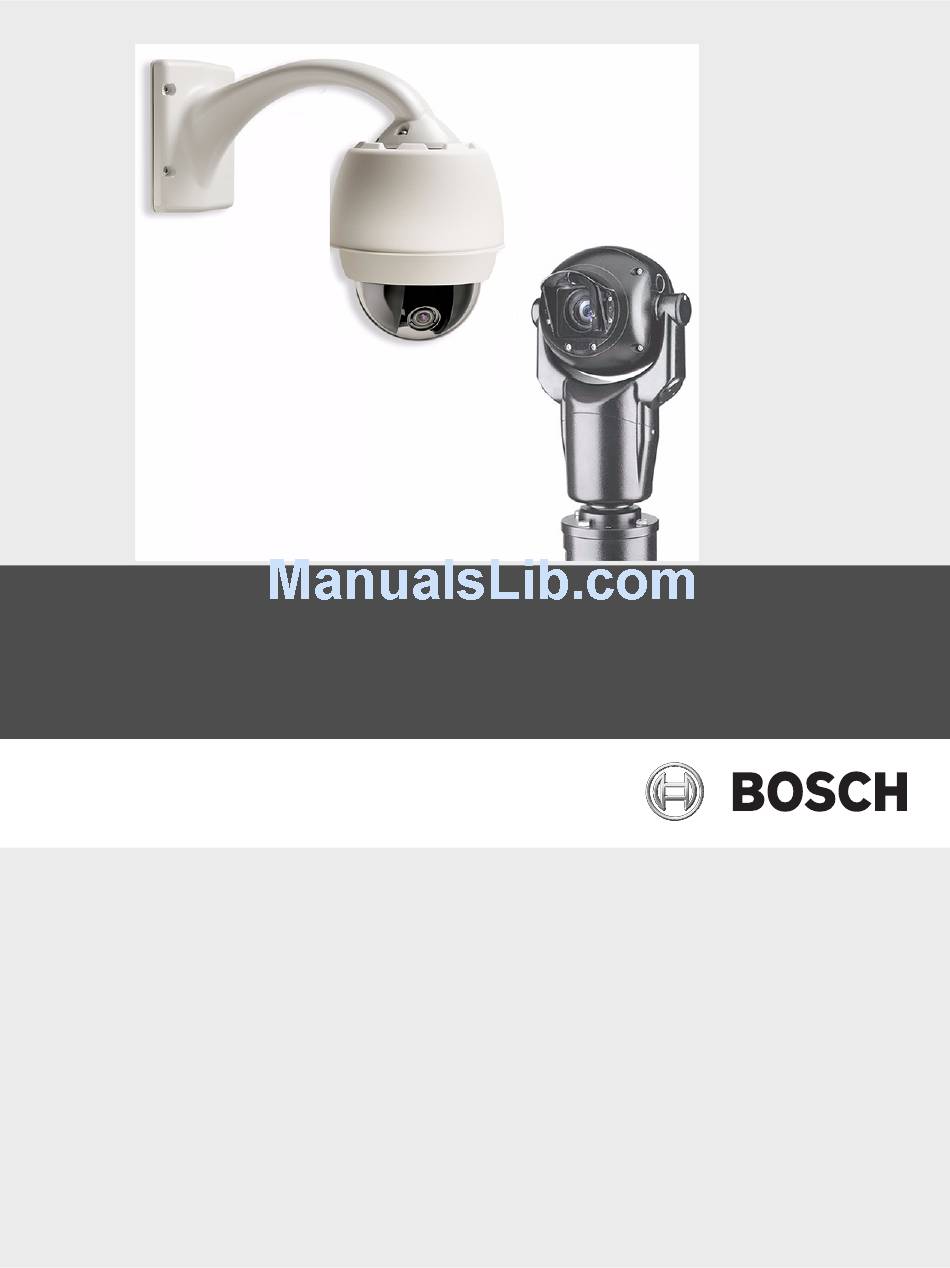

  • Page 1 Firmware Update Manual AutoDome 100/600/700/800 and MIC Series 550 User Manual...

  • Page 3: Table Of Contents

    CTFID does not Connect ........................... 24 3.3.2 BILINX ................................ 25 3.3.3 Serial (RS232 or RS485)..........................25 3.3.4 Firmware Upgrade via CTFID Fails......................25 Auto Tracker Does not Activate with ON 78 ENTER................... 26 Bosch Security Systems, Inc. Firmware Update Manual F.01U.097.269 | 4.0 | 2012.02...
  • Page 4 | Table of Contents F.01U.097.269 | 4.0 | 2012.02 Firmware Update Manual Bosch Security Systems, Inc.

  • Page 5: Ip Autodome Firmware Updates Via A Tcp/Ip Network

    If the direct-connect method is not practical you can also update the IP AutoDome through a Local Area Network (LAN). You cannot, however, update the IP AutoDome through a Wide Area Network (WAN) or via the Internet. Bosch Security Systems, Inc. Firmware Update Manual F.01U.097.269 | 4.0 | 2012.02...

  • Page 6: Beginning The Firmware Update Process

    Click the SETTINGS link, located at the top of the page. Figure 1.1 Select SETTINGS link Click the Service link in the left pane. Figure 1.2 Select the Service link F.01U.097.269 | 4.0 | 2012.02 Firmware Update Manual Bosch Security Systems, Inc.
  • Page 7 AutoDome 700/800 IP AutoDome Firmware Updates via a TCP/IP Network | en Click the Maintenance link below the Service link. Figure 1.3 Service Settings Maintenance option Bosch Security Systems, Inc. Firmware Update Manual F.01U.097.269 | 4.0 | 2012.02...

  • Page 8: Updating The Autodome 700 Or Autodome 800 Firmware

    AutoDome 700/800 Updating The AutoDome 700 or AutoDome 800 Firmware The latest firmware is available on the Bosch Security Systems Web site. A firmware update contains one file (typically a .fw file) and updates the communications module inside the AutoDome.
  • Page 9 Note: Once the progress bar reaches 100% the system opens the reset page. Allow the reset page to complete its action. Figure 1.8 System Reset Once the reset is complete, the upgrade is complete. Bosch Security Systems, Inc. Firmware Update Manual F.01U.097.269 | 4.0 | 2012.02...
  • Page 10 | IP AutoDome Firmware Updates via a TCP/IP Network AutoDome 700/800 F.01U.097.269 | 4.0 | 2012.02 Firmware Update Manual Bosch Security Systems, Inc.

  • Page 11: Analog Camera Firmware Updates Via The Ctfid

    (coaxial or passive UTP). For a Bilinx connection, the CTFID is connected to an analog camera using a BNC to USB converter (Bosch part VP-USB). For a serial connection, the analog camera is connected to a computer through the DB9 Com port.

  • Page 12: Hardware Connections

    To create a Bilinx interface between a PC and an AutoDome 600 or MIC Series 550 you must have a Bosch VP-USB connector. The connector has a USB connector on one end and a female BNC on the other end. Figure 2.3 illustrates the interface connections: Figure 2.3 PC to AutoDome Bilinx Connections...

  • Page 13: Serial Connections

    Bilinx signal from the AutoDome. Once connected, the CTFID displays the Main Screen: Figure 2.5 CTFID Main Screen Proceed to Section 2.4 Uploading AutoDome or MIC Series 550 Firmware Files, on page 12. Bosch Security Systems, Inc. Firmware Update Manual F.01U.097.269 | 4.0 | 2012.02...

  • Page 14: Launching With An Rs232/Rs485 Serial Connection

    Note: If unable to connect, make sure the AutoDome AutoBaud setting is turned on. Figure 2.8 Select Interface dialog box NOTICE! The VP-RS2BLNX device is not available in the United States. F.01U.097.269 | 4.0 | 2012.02 Firmware Update Manual Bosch Security Systems, Inc.
  • Page 15 Proceed to Section 2.4 Uploading AutoDome or MIC Series 550 Firmware Files, on page 12. Note: The CTFID typically connects to an AutoDome in approximately 15 seconds, but it can continue to attempt a connection for up to one minute. Bosch Security Systems, Inc. Firmware Update Manual F.01U.097.269 | 4.0 | 2012.02...

  • Page 16: Uploading Autodome Or Mic Series 550 Firmware Files

    | Analog Camera Firmware Updates via the CTFID Uploading AutoDome or MIC Series 550 Firmware Files The service packs are available on the Bosch Security Systems Web site. Refer to the next section for instructions to upload firmware files to an AutoDome 100. Skip to Section 2.4.2 Uploading an AutoDome 600 or MIC Series 550 Service Pack, on page 14, for...
  • Page 17 Click OK to confirm the message. The CTFID reloads the settings from the camera and displays the Device Information screen. Ensure that the Firmware Version field reflects the new firmware version. Bosch Security Systems, Inc. Firmware Update Manual F.01U.097.269 | 4.0 | 2012.02...

  • Page 18: Uploading An Autodome 600 Or Mic Series 550 Service Pack

    FPGA: This file is uploaded along with the G5 Main or MIC Main file. Language: Certain service packs include an optional language upgrade file used to update the camera’s on-screen display menus. Upload this firmware file last. F.01U.097.269 | 4.0 | 2012.02 Firmware Update Manual Bosch Security Systems, Inc.

  • Page 19: Selecting And Uploading Firmware Files

    Check the version of the SC Boot firmware file to determine the service pack that you must start with. See Section 2.1 Selecting the Service Pack, on page 7. Download the service pack from the Bosch Security Systems Web site. See Section 2.4 Uploading AutoDome or MIC Series 550 Firmware Files, on page 12 Click the Upload Firmware button on the right side of the CTFID Main Screen.

  • Page 20: Updating The Sc Boot File

    The Select Firmware Upload dialog box displays the firmware files that the CTFID determines are updated files. Figure 2.15 Service Pack subcomponents F.01U.097.269 | 4.0 | 2012.02 Firmware Update Manual Bosch Security Systems, Inc.
  • Page 21 Figure 2.16 Firmware Update Warning The AutoDome disconnects from the CTFID; then restarts into the BootLoader mode and reconnects to the CTFID. Figure 2.17 BootLoader Mode Bosch Security Systems, Inc. Firmware Update Manual F.01U.097.269 | 4.0 | 2012.02...

  • Page 22: Updating The G5Main Or Micmain Files

    The Select Firmware Upload dialog box displays the firmware files that the CTFID determines are updated files. F.01U.097.269 | 4.0 | 2012.02 Firmware Update Manual Bosch Security Systems, Inc.
  • Page 23 The camera disconnects and proceeds through its homing process, and then restarts. During this time DO NOT CLICK ANYTHING! The camera reconnects automatically to the CTFID. Bosch Security Systems, Inc. Firmware Update Manual F.01U.097.269 | 4.0 | 2012.02...
  • Page 24 Configuration dialog box. Disregard this dialog box; the CTFID removes the dialog box once the camera reconnects to the CTFID. Confirm that the CTFID Main Screen displays the new firmware version for the camera. Figure 2.22 Confirm firmware version F.01U.097.269 | 4.0 | 2012.02 Firmware Update Manual Bosch Security Systems, Inc.

  • Page 25: Additional Language Option

    Check the Language Table box in the Select Firmware Upload dialogue window. Note: You must check the Language Table box in the sub-components list to select the additional language file for upload. Bosch Security Systems, Inc. Firmware Update Manual F.01U.097.269 | 4.0 | 2012.02...

  • Page 26: Changing The Osd Language

    From the AutoDome 600 OSD menu: Enter ON-46-ENTER from a control keyboard to open the Main window. From the Main window select Language menu. Select the appropriate Language from the menu. F.01U.097.269 | 4.0 | 2012.02 Firmware Update Manual Bosch Security Systems, Inc.

  • Page 27: Troubleshooting

    The AutoDome displays the current firmware levels for the AutoDome files. Compare these version numbers to the latest versions identified in the Release Notes, included with the Service Pack to determine if the AutoDome requires an upgrade. Bosch Security Sys. AutoDome(r) 600 Series 5.00.00.03/1.05.00.02 Day/Night 36X 1.00.00.00...

  • Page 28: Autodome 700 / Autodome 800

    Figure 3.2 IP Firmware Upgrade URL Click Browse and navigate to the IP directory. Select the IP firmware file and click OK. Then click Upload to attempt the IP firmware upload again. If the upgrade fails again, contact Bosch technical support for assistance.

  • Page 29: Bilinx

    – Ensure the AutoDome AutoBaud is turned on. 3.3.4 Firmware Upgrade via CTFID Fails Try to repeat the upgrade a second time. If the upgrade continues to fail, contact Bosch tech- nical support. Bosch Security Systems, Inc. Firmware Update Manual...

  • Page 30: Auto Tracker Does Not Activate With On 78 Enter

    AutoDome Firmware Updates via a TCP/IP Network, page 1 for detailed steps to install the firmware updates). Once the VCA_boot.g4i and the VCA_App.g4i files are successfully installed, the AutoDome will restart and the Auto Tracker will operate correctly. F.01U.097.269 | 4.0 | 2012.02 Firmware Update Manual Bosch Security Systems, Inc.
  • Page 32 Bosch Security Systems, Inc. 850 Greenfield Road Lancaster, PA 17601 www.boschsecurity.us © Bosch Security Systems, Inc.; 2012...

This manual is also suitable for:

Autodome600Autodome700Autodome800Autodome 100Autodome 600Autodome 700 ... Show all
