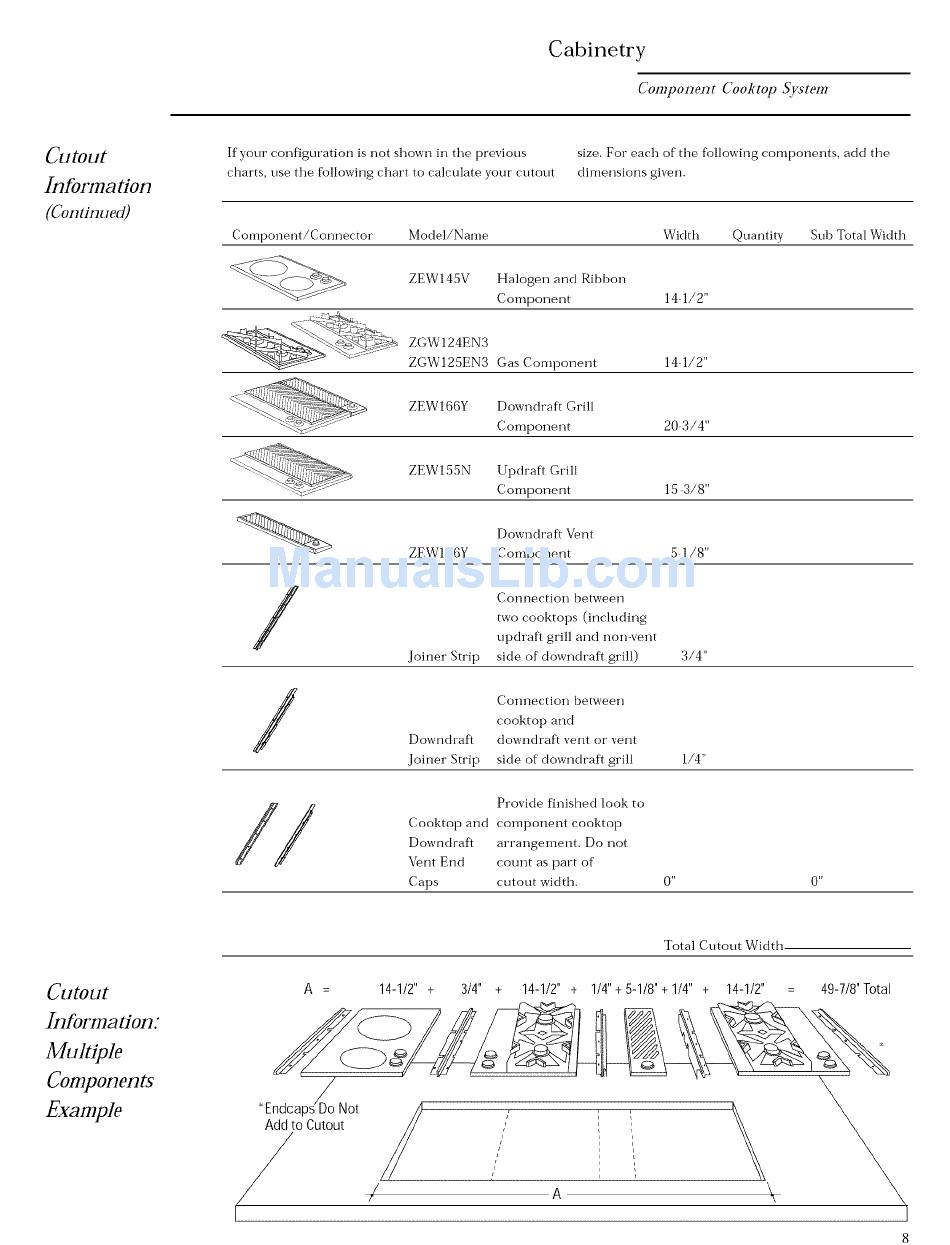

Cabinetry
Conlponent Cooktop _vstem
Cutout
Information
(dontint,ed)
If your configuration is not shown in the previous size. For each of the following components, add the
charts, use tile following chart to calculate your cutout dimensions given.
Component/Connector Model/Name
Width Quantity Sub Total Width
ZEW 145V
_": <'_ ZGW124EN3
"_-- ZGW125EN3
Halogen and Ribbon
Component
14 1/2"
Gas Component 14 1/2"
ZEW166Y Downdraft Grill
Component
20-3/4"
ZEW155N Updraft Grill
Component
15 3/8"
/
/
Downdraft Vent
ZEW176Y Component
5 1/8"
Joiner Strip
Connectioi1 between
two cooktops (including
updraft grill and nonwent
side of downdrafl grill)
3/4"
Downdraft
Joiner Strip
Connectioi1 between
cooktop and
downdraft vent or vent
side of downdrafl grill
1/4"
Provide finished look to
Cooktop and component cooktop
Downdrafl arrangement. Do not
Vent End count as part of
Caps cutout width.
0"
Total Cutout Width
Cutout
Information:
Multiple
Components
Example
A =
*Endcal /
Add to Cutout
U
14-1/2" + 314" + 14-1/2" + 114" + 5-118" + 1/4" + 14-1/2"
\
= 49-7/8" Total
