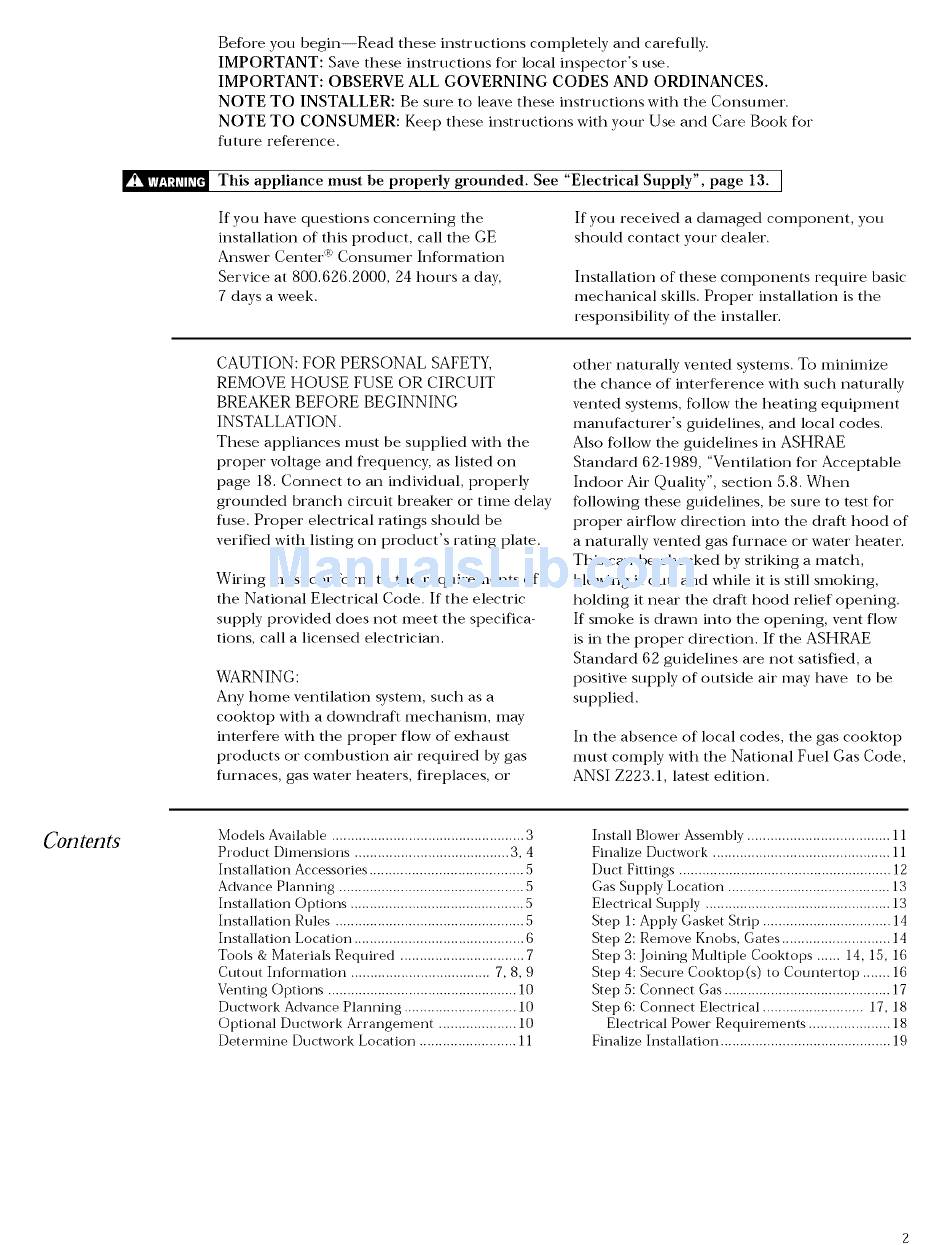

Before you begin--Read these instructions completely and carefully.
IMPORTANT:
Save these instructions for local inspector's use.
IMPORTANT: OBSERVE ALL GOVERNING CODES AND ORDINANCES.
NOTE TO INSTALLER: Be sure to leave these instructions with the Consumer.
NOTE TO CONSUMER:
Keep these instructions with your Use and Care Book for
future reference.
F-!_li!_Tl._l:|_ql?[t'!
This appliance must be properly grounded. See "Electrical Supply", page 13. I
If you have questions concerning tile
installation of this product, call the GE
Answer Center "_:Consumer Information
Service at 800.626.2000, 24 hours a day,
7 days a week.
If you received a damaged component, you
should contact your dealer.
Installation of these components require basic
mechanical skills. Proper installation is the
responsibility of the installer.
CAUTION: FOR PERSONAL SAFETY,
REMOVE HOUSE FUSE OR CIRCUIT
BREAKER BEFORE BEGINNING
INSTALLATION.
These appliances must be suf)plied with the
proper voltage and fi'equency, as listed on
page 18. Connect to an individual, properly
grounded branch circuit breaker or time delay
fuse. Proper electrical ratings should be
verified with listing on product's rating plate.
Wiring must conform to the requirements of
the National Electrical Code. If the electric
supply provided does not meet the specifica-
tions, call a licensed electrician.
WARNING:
Any home ventilation system, such as a
cooktop with a downdraft mechanism, may
interfere with the proper flow of exhaust
products or combustion air required by gas
furnaces, gas water heaters, fireplaces, or
other naturally vented systems. To minimize
the chance of interference with such naturally
vented systems, follow the heating equipment
manufacturer's guidelines, and local codes.
Also follow tim guidelines in
ASHRAE
Standard 62-1989, "Ventilation for Acceptable
Indoor Air Quality", section 5.8. When
following these guidelines, be sure to test for
proper airflow direction into the draft hood of
a naturally vented gas furnace oi" water heater.
This can be checked by striking a match,
blowing it out, and while it is still smoking,
holding it near the draft hood relief opening.
If smoke is drawn into the opening, vent flow
is in tim proper direction. If tim
ASHRAE
Standard 62 guidelines are not satisfied, a
positive supply of outside air may have to be
suf)plied.
In
the absence of local codes, the gas cooktop
must comply with the National Fuel Gas Code,
ANSI Z223.1, latest edition.
Contents
Models Available .................................................. 3
Product Dimensions ........................................ 3, 4
Installation Accessories ........................................ ,5
Advance Planning ................................................ ,5
Installation ()ptions ............................................. ,5
Installation Rules ................................................. ,5
Installation Location ............................................ 6
Tools & Materials Required ................................ 7
Cutout Information .................................... 7, 8, 9
Venting Options ................................................. 10
Ductwork Advance Planning ............................. 10
Optional Ductwork Arrangement .................... 10
Determine Ductwork Location ......................... 11
Install Blower Assembly ..................................... 11
Finalize Ductwork .............................................. 11
Duct Fittings ....................................................... 12
Gas Supply Location .......................................... 13
Electrical Supply ................................................ 13
Step 1: Apply Gasket Strip ................................. 14
Step 2: Remove Knobs, Gates ............................ 14
Step 3: Joining Multiple Cooktops ...... 14, 15, 16
Step 4: Secure Cooktop(s) to Countertop ....... 16
Step 5: Connect Gas ........................................... 17
Step 6: Connect Electrical .......................... 17, 18
Electrical Power Requirements ..................... 18
Finalize Installation ............................................ 19
