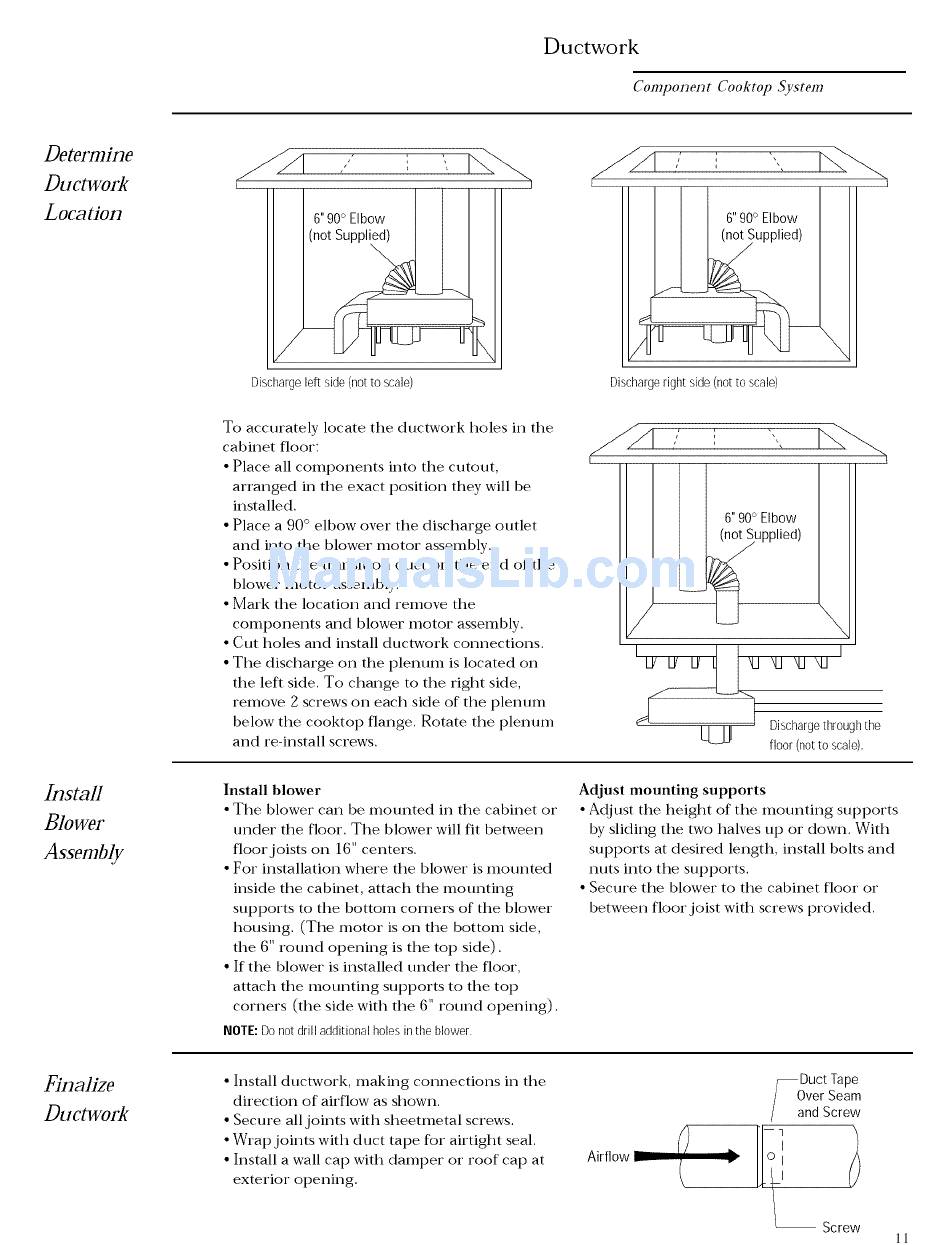

Ductwork
Conlponent Cooktop _vstem
Determine
Ductwork
Location
I
6"90° Elbow
(not
Discharge left side (not to scale)
6"90° Elbow
Dischargeright side (not to scale)
To
accurately locate the ductwork holes in the
cabinet floor:
• Place all components into the cutout,
arranged in the exact position they will be
installed.
• Place a 90 ° elbow over the discharge outlet
and into the blower motor assembly.
• Position tile transition duct on the end of tile
blower motor assembly.
• Mark tile location and remove the
components and blower motor assembly.
• Cut holes and install ductwork connections.
• The discharge on the t)lenum is located on
the left side. To change to the right side,
remove 2 screws on each side of the plenum
below the cooktop flange. Rotate the plenum
and reinstall screws.
Discharge t hrough the
floor(notto scale).
Install
Blower
Assembly
Install blower
• The blower can be mounted in the cabinet or
under tim floor. The blower will fit between
floorjoists on 16" centers.
• For installation where the blower is mounted
inside the cabinet, attach the mounting
supports to the bottom corners of the blower
housing. (The motor is on the bottom side,
the 6" round opening is the top side).
• If the blower is installed under the floor,
attach the mounting suf)ports to the top
corners (the side with the 6" round opening).
NOTE:Donotdrill additional h olesinthe blowe),
Adjust mounting supports
• AdJust tim height of the mounting SUl)t)oi'ts
by sliding tim two halves up or down. With
SUl)t)orts at desired length, install bolts and
nuts into the SUl)t)oi'ts.
• Secure the blower to tim cabinet floor or
between floor joist with screws provided.
Finalize
Puctwork
• Install ductwork, making connections in the
direction of airflow as shown.
• Secure all joints with sheetmetal screws.
• Wrap joints with duct tape for airtight seal.
• Install a wall cap with damper or roof cap at
exterior opening.
Airflow 7-
DUCt T ape
ver Seam
and Screw
H- i
,- O I
, {
Screw
