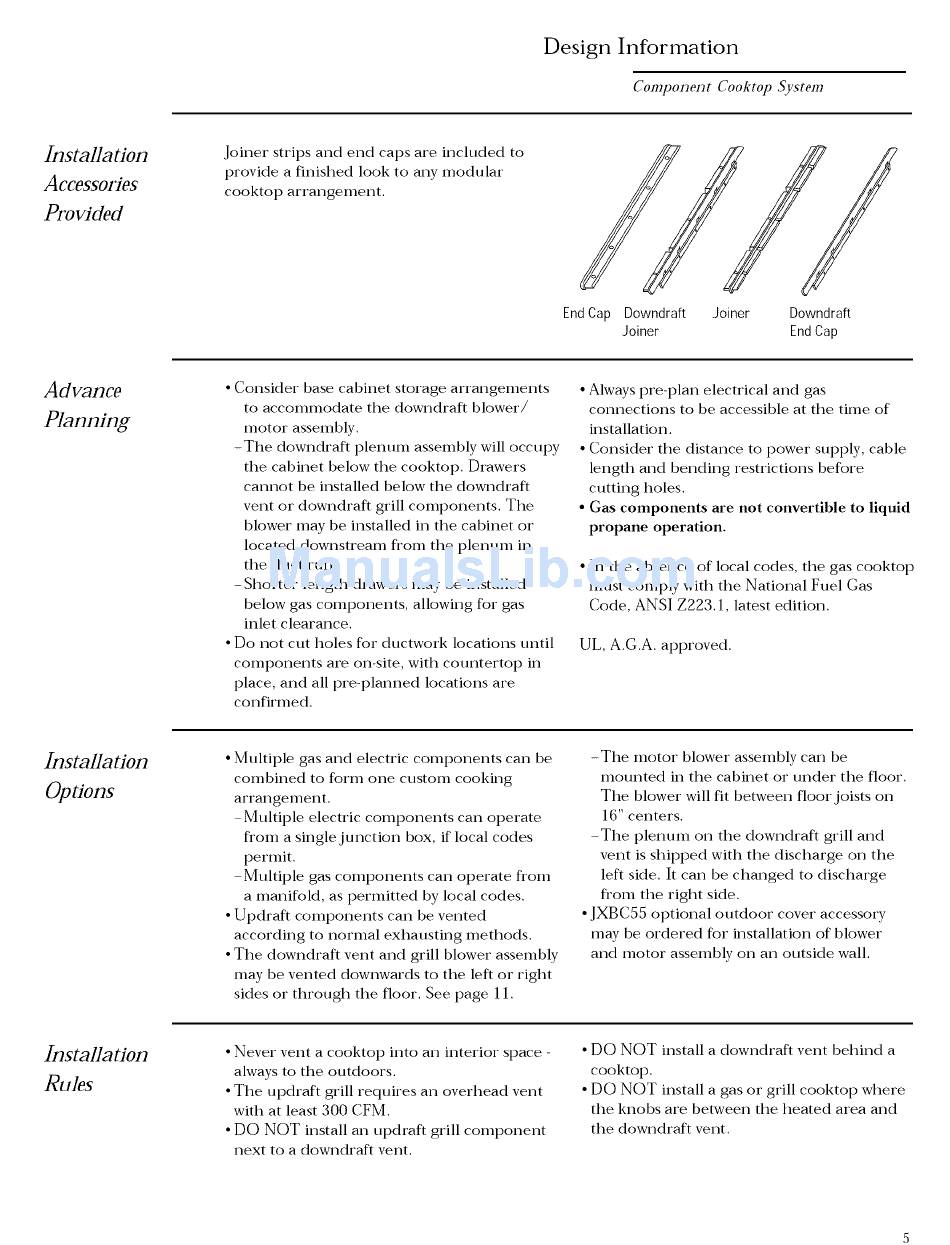

Design Information
Component Cooktop _wtem
Installation
Accessories
Provided
Joinei" sti'ips and end caps are included to
provide a finished look to any modular
cooktop ai,i'angement.
EndCap Downdraft Joiner Downdraft
Joiner EndCap
Advance
Planning
• ConsideI" base cabinet stoi'age ai`i'angements
to accommodate the downdi,aft blowei'/
motor assembly.
-The downdi`aft plenum assembly will occupy
the cabinet below the cooktop. Di'awei's
cannot be installed below the downdi`aft
vent or downdi`aft gi'ill components. The
blower may be installed in the cabinet oi"
located downstream fl'om the plenum in
the duct run.
- Shorter length drawers may be installed
below gas components, allowing foi` gas
inlet clearance.
• Do not cut holes foi` ductwoi`k locations until
components are on-site, with countei`top in
place, and all pi`e-planned locations are
confirmed.
• Always t)i`e-plan electrical and gas
connections to be accessible at the time of
installation.
• Consider the distance to power supply, cable
length and bending restrictions befoi`e
cutting holes.
• Gas components are not convertible to liquid
propane operation.
•
In
the absence of local codes, the gas cooktop
must comply with the National Fuel Gas
Code, ANSI Z223.1,
latest edition.
UL, A.G.A.
appi`oved.
Installation
Opdons
• Multiple gas and electric components can be
combined to form one custom cooking
ai`i`angenlent.
-Multiple electric components can operate
fl'om a singlejunction box, if local codes
permit.
Multiple gas components can operate from
a manifold, as permitted by local codes.
• Updraft components can be vented
according to normal exhausting methods.
• The downdi`aft vent and grill blower assembly
may be vented downwards to the left or right
sides or through the floor. See page 11.
-The motor blower assembly can be
mounted in the cabinet or under the flooi`.
The blower will fit between floor joists on
16" centei`s.
The plenum on the downdi,aft grill and
vent is shipped with the discharge on the
left side. It can be changed to discharge
fl'om the right side.
• JXBC55 optional outdooi` covei` accessory
may be ordered foi` installation of blower
and motor assembly on an outside wall.
Installation
Rules
• Never vent a cooktop into an interior space -
always to the outdooi`s.
• The updraft grill requires an overhead vent
with at least 300
CFM.
• DO NOT install an updraft grill component
next to a downdi`aft vent.
•
DO NOT
install a downdi`afl vent behind a
cooktop.
• DO NOT install a gas or grill cooktop where
the knobs are between the heated ai`ea and
the downdi`aft vent.
