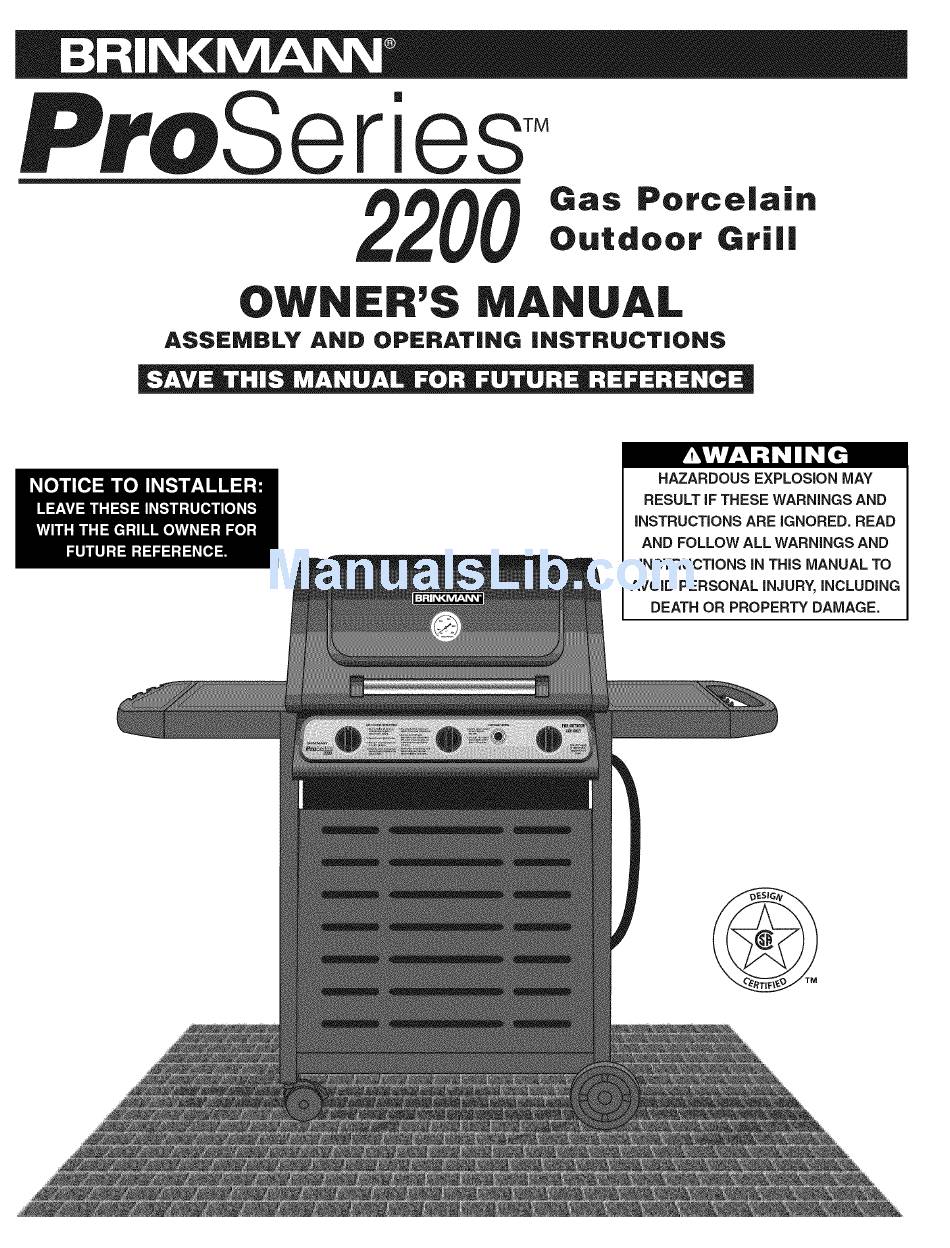

- Page 1 erles Porcelain Outdoor Grill OWNER'S MANUAt ASSEMBLY OPERATING iNSTRUCTiONS HAZARDOUS EXPLOSION MAY RESULT iF THESE WARNINGS AND iNSTRUCTiONS ARE iGNORED. READ AND FOLLOW ALL WARNINGS AND iNSTRUCTiONS iN THiS MANUAL TO AVOID PERSONAL iNJURY, iNCLUDiNG DEATH OR PROPERTY DAMAGE.
-
Page 3: For Your Safety
IMPORTANT SAFETY WARNINGS WE WANT YOU TO ASSEMBLE AND USE YOUR GRILL AS SAFELY AS POSSIBLE. THE PURPOSE OF THiS SAFETY ALERT SYMBOL iS TO ATTRACT YOUR ATTENTION TO POSSIBLE HAZARDS AS YOU ASSEMBLE AND USE YOUR GRILL. WHEN YOU SEE THE SAFETY ALERT SYMBOL PAY CLOSE ATTENTION... - Page 4 • Never use natural gas in a unit designed for liquid propane gas. • Never use charcoal briquets or lighter fluid in a gas grill. • Leak test all connections before first use, even if grill was purchased fully assembled and after each tank refill.
-
Page 5: Installation Information
• FOR OUTDOOR USE ONLY. DO NOT operate in a building, garage or other enclosed area such as a shed or breezeway. Use your grill OUTDOORS in a well ventilated space away from dwellings or other buildings • prevent dangers associated with gas accumulation and toxic vapors. - Page 6 The cylinder must also be equipped with: • A shut-off valve terminating in a Type 1 gas cylinder valve outlet. A Type 1 valve that prevents gas flow until a positive seal is obtained. An arrangement for vapor withdrawal. A collar to protect the cylinder shut-off valve. A safety relief device having direct communication with the vapor space of the cylinder.
-
Page 7: Filling The Lp Gas Cylinder
FiLLiNG THE LP GAS CYLINDER: Allow only qualified LP gas dealers to properly fill or repair your LP gas cylinder. ® New tanks should be purged prior to filling; inform LP gas dealer if you are using a new tank. ®... - Page 8 DO NOT use any other pressure regulator/hose assembly other than the one supplied with your grill. Replacement pressure regulator/hose assembly must be Brinkmann No 155-2200-0, which can be obtained by contacting Brinkmann at 1-800-527-0717. • DO NOT attempt to adjust or repair the regulator. The regulator...
-
Page 9: Leak Testing
LEAK TESTING: To prevent fire or explosion hazard: • DO NOT smoke or permit ignition sources in the area while conducting a leak test. • Perform test OUTDOORS only in a well ventilated area. • Never perform a leak test with a match or open flame. -
Page 10: Pre-Start Checklist
If it is evident there is excessive abrasion or wear, or the hose is cut, it must be replaced prior the grill being used. Replace with hose and regulator, Model No. 155-2200-0, which can be obtained by contacting Brinkmann at 1-800-527-0717. -
Page 11: Lighting Instructions
LiGHTiNG iNSTRUCTIONS: Follow the instructions exactly. OPEN THE GRILL LiD before attempting to light a burner so that fumes do not accumulate inside the grill. An explosion could occur if grill lid is down. Check that all burner control knobs and the cylinder valve are turned to the OFF position. - Page 12 NOTE: Observe flame height when lit: Flame should be a Blue/Yellow color approximately 1" high when burner is on "High." TURNING OFF THE GRILL: Turn OFF the LP tank valve. Turn all burner control knobs to the OFF position. NOTE: Turn off LP cylinder first to prevent gas from being left in the system under pressure.
-
Page 13: Indirect Cooking
• DO NOT leave your grill unattended while in use. • DO NOT move grill when in use. Lock wheels in place to stabilize grill. • DO NOT use water to extinguish flare°ups. • Have fire extinguisher readily accessible suitable for use with gas appliances. TO MiNiMiZE FLARE-UPS: Trim excess fat from meats prior to cooking. -
Page 14: Transporting And Storage
TRANSPORTING AND STORAGE: • Never move a grill when it is hot or when objects are on the cooking surfaces. • Make sure that cylinder valve is shut off. After moving the grill check that all gas connections are free of leaks. Refer to instructions for leak test on Page 7 of this manual. -
Page 15: Cooking Grills
BURNER ASSEMBLY/MAINTENANCE Although your burners are constructed of cast iron, they may rust as a result of the extreme heat and acids from cooking foods. Regularly inspect the burners for cracks, abnormal holes, and other signs of corrosion damage. If found, replace the burner. DO NOT obstruct the flow of combustion and ventilation... -
Page 16: Troubleshooting
TROUBLE SHOOTING: Possible Causes: Problem: Burner will not light Check LP cylinder fuel level. Bad electrode spark. Check to see if the grill will "match light." (See Page 9) Electrode or collector may need adjustment. Burner may not be properly seated, Burner may be obstructed. -
Page 17: Care And Maintenance
PROPER CARE & MAINTENANCE To protect your grill from excessive rust, the unit must be kept clean and covered at all times when not in use. A grill cover may be ordered directly from Brinkmann by calling 1-800-468-5252 or 1-800-527-0717. Wash cooking grills and heat shields with hot, soapy water, rinse well and dry. - Page 18 TWO PEOPLE WORK TOGETHER WHEN ASSEMBLING THIS UNIT. following provided tools are required to assemble this Brinkmann Pro Series 2200 Grill: Flathead Screwdriver He× Nut Wrench PARTS LIST: Grill Body Assembly Grease Cup Electronic Igniter Button Tank Heat Shield Electronic Igniter Spring...
- Page 19 ii_ ¸ ' FOR MISSING PARTS, PLEASE CALL CUSTOMER SERVICE AT 1-800-527-0717. (Proof of purchase will be required.) Inspect contents of the box to ensure all parts are included and undamaged.
-
Page 20: Bag Contents
PARTS BAG CONTENTS Make sure you have all items listed under PARTS LIST and PARTS BAG CONTENTS before you begin the installation process. Your Parts Bag will include: Qty. Qty. Wheel washers 15mm bolts Wheel axle bolts M6 X 12mm bolts Screwdriver AA/1.5V Alkaline... - Page 21 Choose a good, cleared assembly area and get a friend to help you put your grill together. Lay cardboard down to protect grill finish and assembly area. Step With the help of a friend, turn the preassembled cart over. Try to minimize the stress to the bottom plate.
- Page 22 Step 4 Snap wheel hub caps onto the outside of wheels as illustrated. Step With the help of a friend, turn the cart to its upright position. Step 6 Tank Heat Shield Attach tank heat shield to heat shield plate using one #8 self-tapping screw.
- Page 23 Step 7 Attach heat shield plate to back Heat Shield Plate panel using two M6 X 12mm bolts with small star washers. CZZ:::Z:Z:D d_C::::::::::::::::ZD > Heat Shield Plate Step Attach heat shield plate to front panel using three #8 self-tapping screws.
- Page 24 Note: When performing Step 10, Lift grill body from front and .-.-- Grill Body Assembly rear panels to avoid injury to hands and fingers. Be sure to pass hosekegulator assembly above cart frame crossbar. Step 10 With the help of a friend, place grill body assembly on preassembled cart frame.
- Page 25 Step Attach left side table assembly to left side of cart frame assembly. Slide side table assembly onto preattached shoulder bolts. Attach two M8 X 15 mm bolts with large star washers as illustrated and secure. Step Attach right side table assembly to right side of cart frame assembly.
- Page 26 Step Attach the hose heat shield to the right side of the cart frame using Tank two #8 self-tapping screws. Heat Shield Step ® Insert grease tray into opening on backside of grill. Make sure to slide tray onto tracks as illustrated. Grease Tray...
- Page 27 Step _Warming Rack < A_ ..........Place the porcelain coated heat _; ................,:_. tents on lower level of grill body assembly directly above burners. g Grills Heat Tents Step Place porcelain cast iron cooking grills on support ribs directly above porcelain heat tents.
- Page 28 ProSeries 2200 (Assembled) ® ,.) (,...
- Page 29 ACCESSORIES PROFESSIONAL SHISH-KABOB SKEWERS RiB RACK Chrome-plated rack can greatly increase the cooking These heavy-duty, 18" shish-kabob skewers are extra-long for fabulous capacity of your grill. Holds ribs, chicken halves, restaurant style kabobs. Made of rust resistant stainless potatoes and corn vertically to triple cooking capacity. steel to last for years.
- Page 30 ACCESSORIES 2-GALLON PAN & BASKET Restaurant-style aluminum fry pan with nickel plated wire straining basket is an essential tool for frying fish, chicken, french fries, onion rings and more. Strainer basket holder helps drain excess oil. Use outdoors with the Brinkmann Backyard Kitchen and avoid the mess and odor of frying indoors.
- Page 32 The Brinkmann Corporation requires reasonable proof of purchase. Therefore, we strongly recommend that you retain your sales receipt or invoice. To obtain replacement parts for your Brinkmann ProSeries 2200 TM under the terms of this warranty, please call Customer Service Department at 1-800-527-0717. A receipt will be required. The Brinkmann Corporation will not be responsible for any grills forwarded to us without prior authorization.
