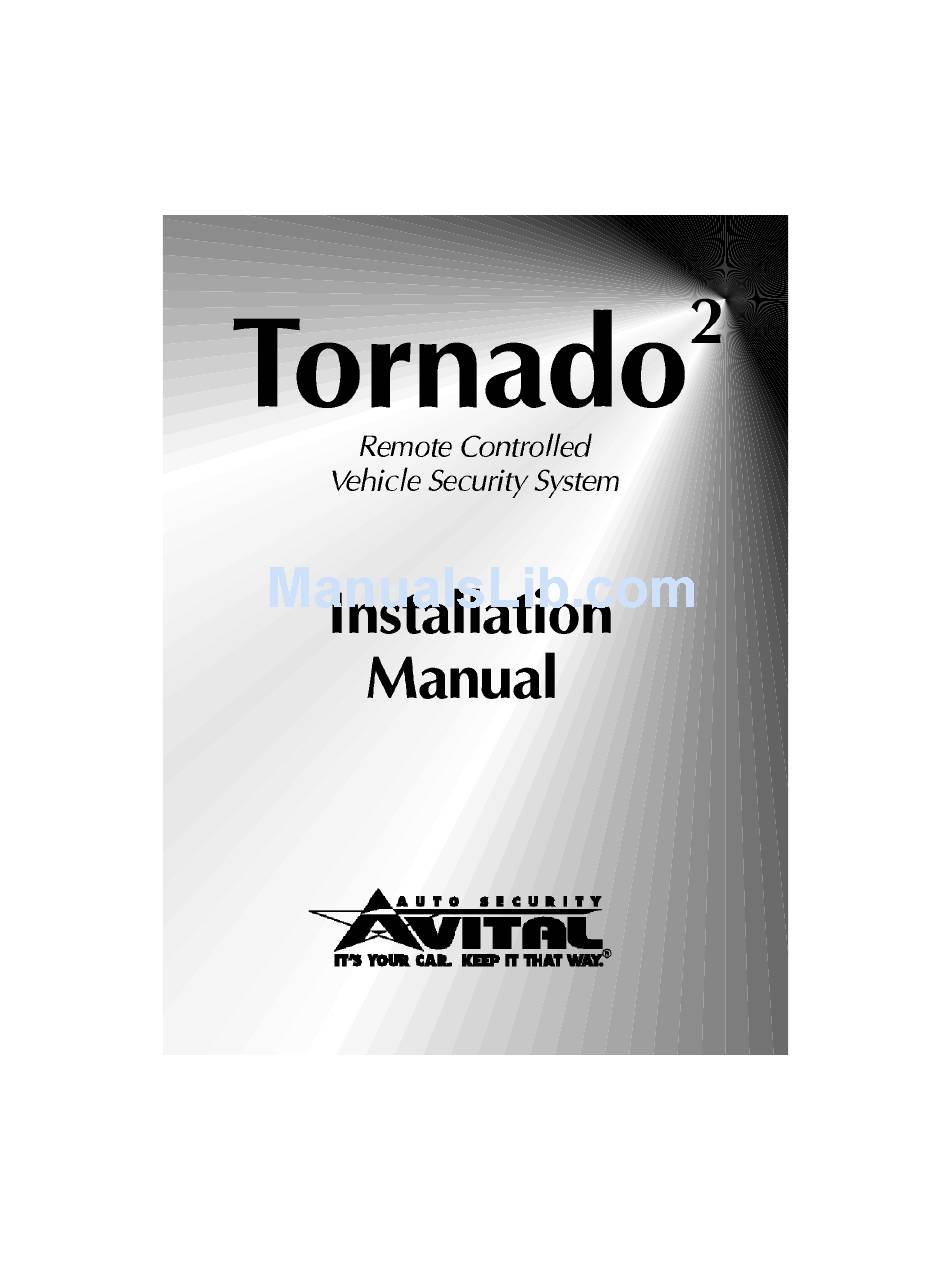

- Page 1 Tornado Installation Manual 1/5/98...
-
Page 2: Table Of Contents
Table of Contents Required Installation Tools ..... . . 2 Important Information ......2 Wiring Diagram . -
Page 3: Required Installation Tools
Required Installation Tools Voltmeter Wire Strippers Electric Drill & Bits Phillips Screw Driver Convoluted Tubing * Solder Gun * Wire Crimpers Shrink Tube or Electrical Tape * Op tional Important Information 1. Test all circuits with a voltmeter. 2. Make all wiring connections with butt connectors. DO NOT twist wires or use "scotch-lok"... -
Page 4: Wiring Diagram
Wiring Diagram Tornado Installation Manual 1/5/98... -
Page 5: Pin Con Nec Tor
11 Pin Con nec tor Wire color De scrip tion Red/Black Parking Light Output Battery (+) Gray (-) Armed Output for Optional Starter Disable Relay Black Battery (-) Violet Siren (-) Output Hood/Trunk (-) Input White/Black Interior Light Illumination (-) Output/Requires Optional Relay Dark Blue Channel 2 (-) Accessory Output White... -
Page 6: Installation Procedures
Installation Procedures Con trol Unit 1. Select a location under the dash that will allow you to use tie wraps to securely fasten the control unit. 2. Mount the control unit as high as possible to ensure maximum range. 3. Do not mount the control unit near moving parts. 4. -
Page 7: Led In Di Ca Tor
LED In di ca tor 1. Discuss placement with the owner. 2. Choose a location that is visible from both sides of the vehicle. 3. Drill a ¼" hole. 4. Route the LED wires through the hole and press LED into place. 5. -
Page 8: Op Tional In Te Rior Light Il Lu Mi Na Tion Out Put
The Tornado interior light trigger wire is programmable to accept a positive (+) or negative (-) input. The module is factory preset for negative (-) door trigger. 1. Connect the alarm WHITE wire to the vehicle door trigger wire(s). 2. If the vehicle door trigger is positive (+) trigger, follow the "Door Trigger Input Polarity"... -
Page 9: Hood/Trunk Pin Switch
The alarm provides a .75 second 300 MA (-) output for lock and unlock. Follow the door lock diagrams on pages 9 - 11. Hood/Trunk Pin Switch 1. Locate the vehicle hood or trunk pin switch that shows ground when the hood or trunk is open only. -
Page 10: Door Lock Diagrams
Tornado Installation Manual 1/5/98... - Page 11 Tornado Installation Manual 1/5/98...
- Page 12 One Wire Door Lock/Unlock (Mer cedes/Audi) Tornado Installation Manual 1/5/98...
-
Page 13: Programming Alarm System Features
Programming Alarm System Features All programmable alarm features are accomplished by turning the ignition key on (or starting the vehicle) and flicking the valet switch on and off a pre-set number of times. 1. Remove the alarm from valet. Programming cannot be accessed while the alarm is in the valet mode indicated by the LED on solid red. -
Page 14: Programming Your Re Mote Con Trols
Programming Your Re mote Con trols The Tornado allows you to add new remote controls in one step, delete lost or stolen remote controls or rearrange the factory preset remote control functions. All remote control programming features are accomplished by turning the ignition key on (or starting the vehicle) and flicking the valet switch on and off a preset number of times. - Page 15 © Copy right 1998 Avi tal Tech nolo gies, Inc. 32-3273/T2IM/98 Tornado Installation Manual 1/5/98...
