Avital Phoenix 2 Installation Manual

Remote controller vehicle security system
Hide thumbs Also See for Phoenix 2:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual

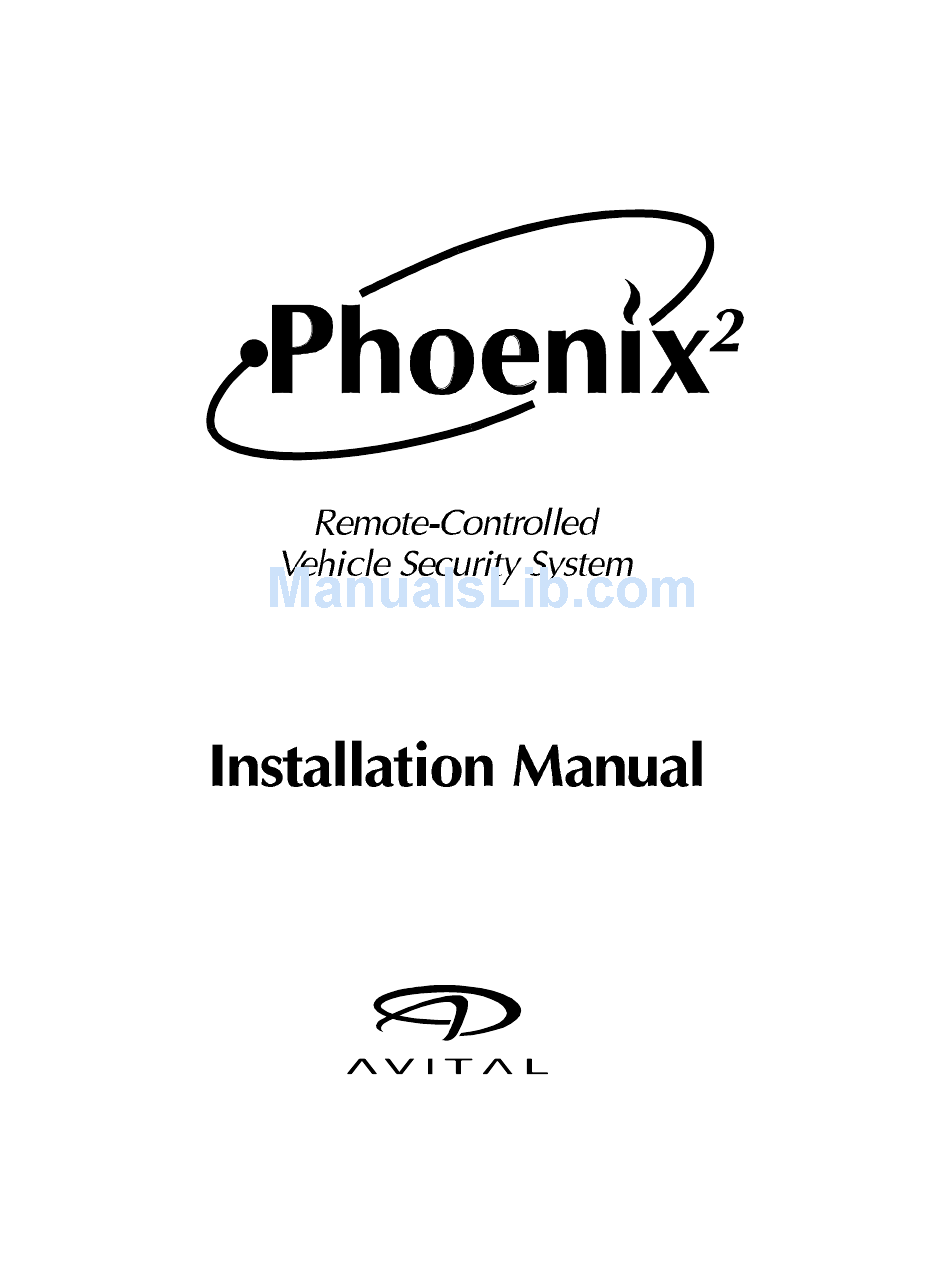

Phownix2 Rev. A - Installation Manual - Front Cover

Advertisement

Table of Contents
loading

Related Manuals for Avital Phoenix 2

Summary of Contents for Avital Phoenix 2

  • Page 1 Phownix2 Rev. A - Installation Manual - Front Cover...

  • Page 3: Table Of Contents

    Table of Contents Important Information ......2 Required Installation Tools ......2 Recommended Procedures .

  • Page 4: Important Information

    Important Information Important Information Required Installation Tools Required Installation Tools Voltmeter Voltmeter Wire Strippers Wire Strippers Electric Drill & Bits Electric Drill & Bits Phillips Screw Driver Phillips Screw Driver Convoluted Tubing * Convoluted Tubing * Solder Gun * Solder Gun * Wire Crimpers Wire Crimpers Shrink Tube or Electrical Tape...

  • Page 5: Wiring Diagram

    Wiring Diagram Phoenix2 Rev. A - Installation Manual 0399...

  • Page 6: 20 Pin Connector

    20 Pin Connector Pin Number Wire Color Description Battery (+) VIOLET Siren (-) Output DARK BLUE Channel 2 (-) Output (Trunk Release) LIGHT BLUE Channel 4 (-) Output BLUE / YELLOW Channel 6 (-) Output GRAY Armed (-) Output Prewired to Starter Disable Relay Hood / Trunk Switch (-) Input PINK Ignition Output...

  • Page 7: Installation Procedures

    Installation Procedures Installation Procedures Control Unit Control Unit 1. Select a location under the dash that will allow you to use the tie wraps to 1. Select a location under the dash that will allow you to use the tie wraps to securely fasten the control unit.

  • Page 8: Valet Switch

    Valet Switch 1. Discuss placement with the vehicle owner. 2. Choose a location for the valet switch that is hidden, but convenient for the owner to access. 3. Drill a ¼" hole and mount the switch. 4. Route the valet switch wires to the control unit. 5.

  • Page 9: Channel 6 Accessory (-) Output

    Channel 6 Accessory (-) Output (Arm/Disarm + Option Buttons) The LIGHT BLUE/YELLOW wire provides a 0.75 second (-) output when activated whether the alarm is armed or disarmed. If the remote control button(s) is continually pressed, the signal will stay at ground as long as the button is held.

  • Page 10: Door Lock/Unlock

    Normally Closed Normally Closed 1. Locate the ignition switch wireloom under the dashboard. 1. Locate the ignition switch wireloom under the dashboard. 2. Use a voltmeter to find the one wire that will show +12 volts while the 2. Use a voltmeter to find the one wire that will show +12 volts while the ignition key is in the cranking cycle only.

  • Page 11: Door Lock Diagrams

    Phoenix2 Rev. A - Installation Manual 0399...
  • Page 12 Phoenix2 Rev. A - Installation Manual 0399...
  • Page 13 Phoenix2 Rev. A - Installation Manual 0399...
  • Page 14 Phoenix2 Rev. A - Installation Manual 0399...

  • Page 15: Hood/Trunk Pin Switch

    Hood/Trunk Pin Switch 1. Locate the vehicle hood or trunk pin switch that shows ground when the hood or trunk is open only. 2. Connect the TAN wire to the vehicle hood or trunk switch wire. 3. If the vehicle does not have a hood or trunk switch, install a pin switch and connect it to the TAN wire.

  • Page 16: Programmable Features

    Programmable Features All system and remote control programmable features are accomplished by turning the ignition key to the "ON" position or starting the engine and flicking the valet switch on and off a preset number of times. The siren will chirp for audible programming confirmation.

  • Page 17: Programming Table For Alarm Features

    Programming Table for System Features Factory No. of Feature Secondary Action Setting Chirps Wait 3 seconds, the siren will chirp Active / Passive Arming Passive once for active, twice passive. Wait 3 seconds, the siren will chirp Passive Door Lock once for Off, twice for On.

  • Page 18: Programming Table For Remote Controls

    Programming Table for Remote Controls No. of Feature Factory Setting Secondary Action Chirps ARM/DISARM Press the ARM/DISARM button, the Arm/Disarm Button siren will chirp 1 time. Remote-Controlled Press the TRUNK button, the siren TRUNK Button Trunk Release Output will chirp 2 times. Remote-Controlled Press the SILENT button, the siren will SILENT Button...
  • Page 19 Phoenix2 Rev. A - Installation Manual 0399...
  • Page 20 © 1999 Avital Technologies, Inc. Part Number: 32-1270 Rev. A Phoenix2 Rev. A - Installation Manual 0399...
  • Page 21 Phoenix2 Rev. A - Installation Manual 0399...
