Tray Module Media Feeder Removal - Lexmark C950 Service Manual

5058-030

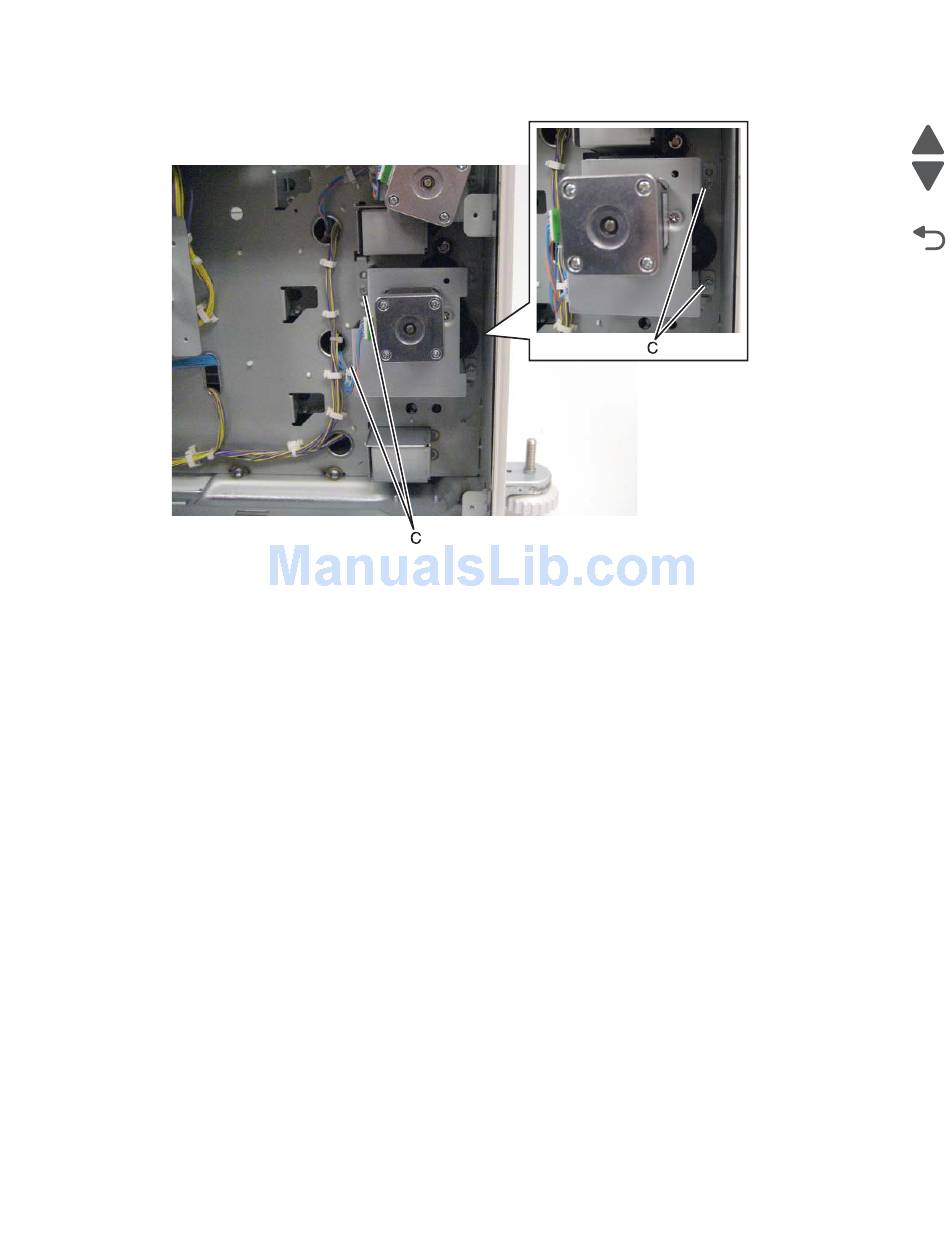

Remove the four screws (C).
4.
Remove the tray module lower transport motor.
5.

Tray module media feeder removal

This removal procedure can be used for the following trays:
•
•
•
•
•
1. Remove the media tray 2.
Open the left door.
2.
Service Manual
4-208
1TM tray module
3TM tray module, tray 2
3TM tray module, tray 3
3TM tray module, tray 4
TTM tray module, tray 2
