10. Slide the server into the rack.
80
ThinkServer RD120 server Machine Types 6444, 6445, 6446, and 6447: Hardware Maintenance Manual
5. Push the tape-drive assembly into the bays, gently pulling the cables farther
into the server as you do so, until the tape-drive assembly stops.
6. Push the tray handle to the closed (locked) position.
7. Connect the cable connectors to the following system-board connectors (see
"System-board internal cable connectors" on page 11 for the location of the
connectors):
v Signal connector: SATA tape drive signal connector, J102
v Power connector: tape-drive power connector, J100

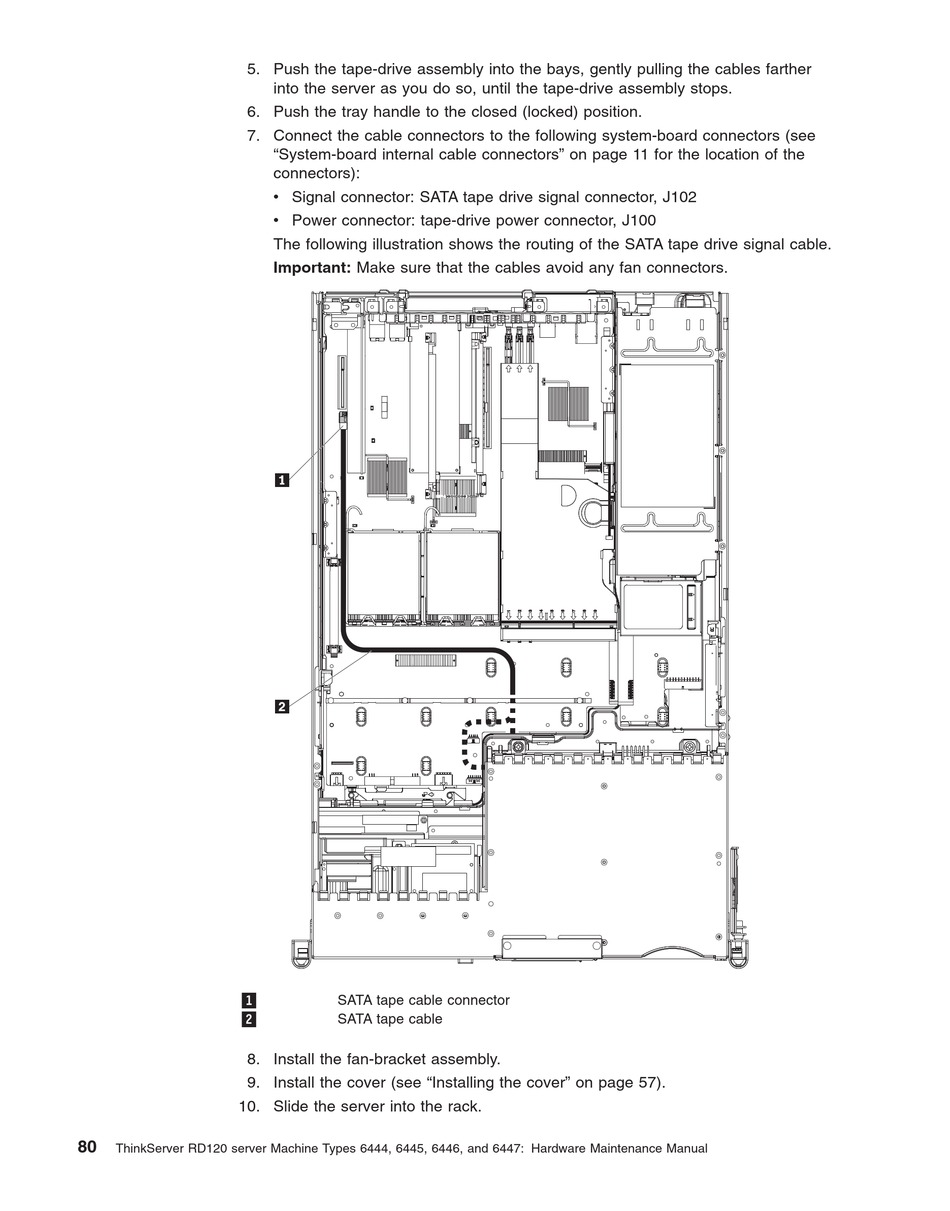

The following illustration shows the routing of the SATA tape drive signal cable.
Important: Make sure that the cables avoid any fan connectors.
1
SATA tape cable connector
2
SATA tape cable
8. Install the fan-bracket assembly.
9. Install the cover (see "Installing the cover" on page 57).
