© 2011 Pella Corporation

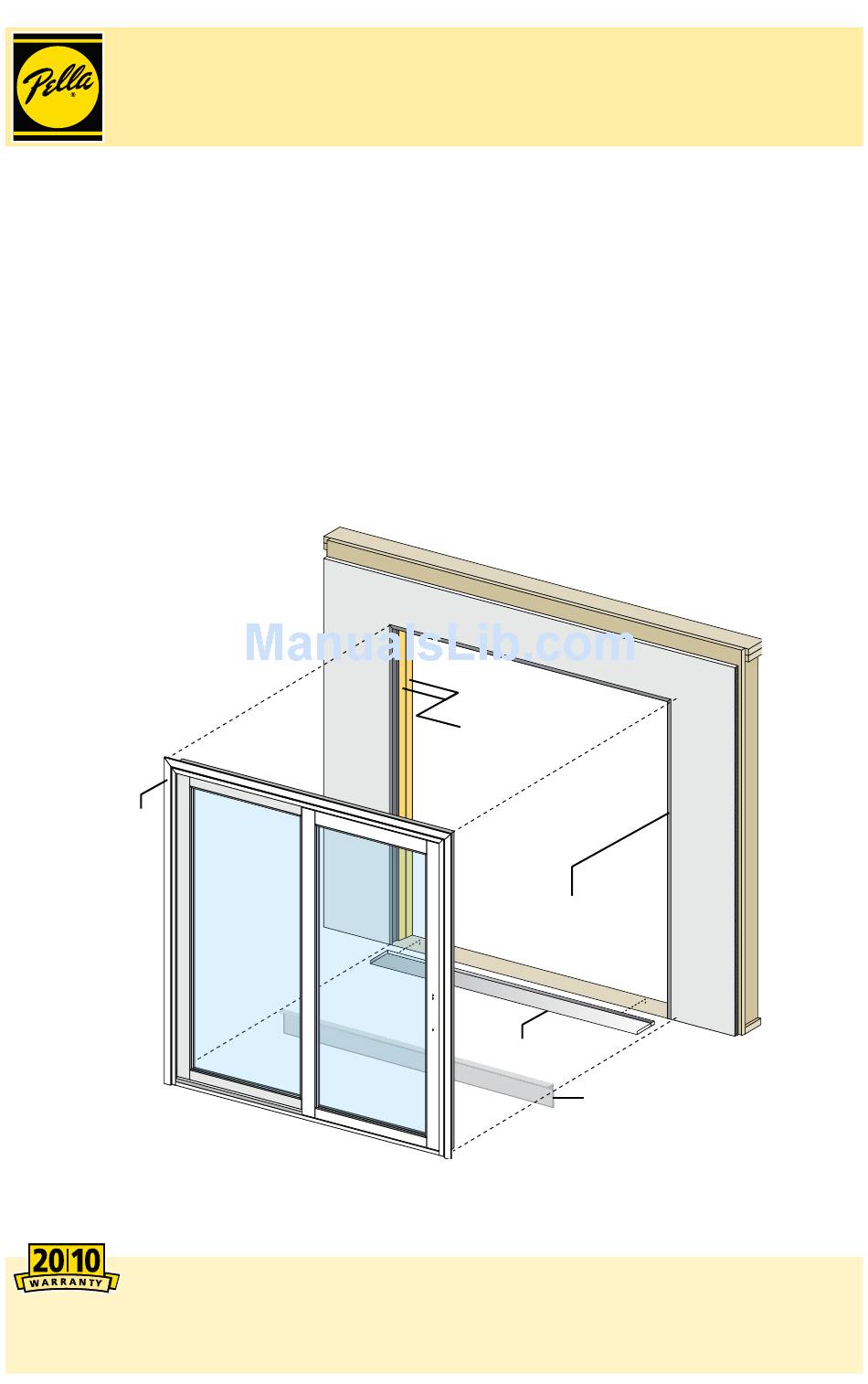

INSTALLATION INSTRUCTIONS - INSTRUCCIONES DE INSTALACION

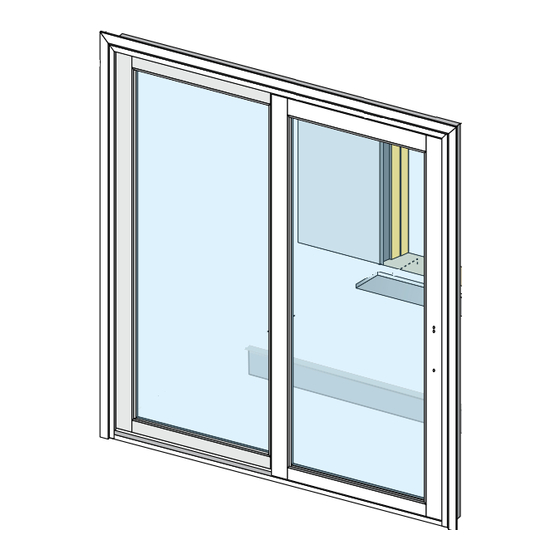

ALUMINUM-CLAD SLIDING PATIO DOORS WITH
FLUSH FLANGE
Lea las instrucciones en español en el reverso
Installation Instructions for Replacement of Aluminum Sliding Doors in Hard Coat Stucco
Applications in arid climates.
These instructions are designed for typical hard coat stucco exterior applications in arid climates.
The installation must leave the existing aluminum door frame and weep system in place. These
instructions are not to be used with any other construction method and rely on the integrity
of the existing aluminum sliding door and flashing system. Building designs, construction
methods, building materials, and site conditions unique to your project may require an installation
method different from these instructions and additional care. Determining the appropriate
installation method is the responsibility of you, your architect, or construction professional. If you
have questions, please contact your local Pella retailer.
REMEMBER TO USE APPROPRIATE PERSONAL PROTECTIVE EQUIPMENT.
Flush
Flange
Always read the Pella
products. By installing this product, you are acknowledging that this Limited
Warranty is part of the terms of the sale. Failure to comply with all Pella installation and
maintenance instructions may void your Pella product warranty.
See Limited Warranty for complete details at http://warranty.pella.com.
Wood
Blocking
®
Limited Warranty before purchasing or installing Pella
Part Number: 81CM0100
Existing Aluminum
Door Frame
Sill Pan
Optional Sill Nose
Advertisement
Table of Contents
Related Manuals for Pella 81CM0100
Summary of Contents for Pella 81CM0100
- Page 1 Limited Warranty before purchasing or installing Pella products. By installing this product, you are acknowledging that this Limited Warranty is part of the terms of the sale. Failure to comply with all Pella installation and maintenance instructions may void your Pella product warranty.
-
Page 2: Before You Start
Utility knife Wood blocking, 3/4" x 4" x 96" (2 or 3 pieces) Screws (#10 x 3-1/2") Wide jaw pliers Pella® SmartFlash™ foil backed butyl flashing Reciprocating saw tape or equivalent. Sill pan 1/8" and 1/4" drill bit... - Page 3 OPENING PREPARATION by removing the venting panel and the glass from the existing fixed side of the aluminum door frame. Note: It may be necessary to cut the divider between the venting panel and fixed glass areas with a reciprocating saw. The existing aluminum frame is left in place so as not to disturb the existing exterior stucco flashing or drainage system.
- Page 4 OPENING PREPARATION (CONTINUED) I. Construct a sill pan for the door. Measure the rough opening width and add 2". Measure 1" up from each end and cut through the vertical leg of the pan material. If there is a step down at the exterior of the door opening, make the sill pan depth equal to the door frame depth - 2-1/8".
- Page 5 OPENING PREPARATION (CONTINUED) K. Apply five lines of 3/8" diameter sealant across the rough opening sill in the location shown. Make sure the lines of the sealant covers the area between the stucco and rough opening. Sealant lines and sill pan if there Sealant lines and sill pan if there is a step down.
-
Page 6: Prepare The Door For Installation
OPENING PREPARATION (CONTINUED) O. Cut two pieces of flashing tape 12" longer than the rough opening width. Place SILL TAPES tape #1 across the sill nosing just up to where the nosing begins to slope down and extending 6" up each jamb. Apply the second piece of flashing tape over-lapping the first piece and the exterior... -
Page 7: Setting And Fastening The Door
Secure the clip by driving #6 x 5/8" corrosion resistant screws through the outer two holes of the three holes shown. 6" 6" Pella SmartFlash Tape extending 6" down each jamb. Place the tape starting on the aluminum cladding and extending onto the wood frame. - Page 8 SETTING AND FASTENING THE DOOR (CONTINUED) the face of the existing door frame jambs and head. TWO OR MORE PEOPLE ARE REQUIRED FOR THE FOLLOWING STEPS the sill of the door onto the sill pan and tilt the door into position, centering it in the opening.
- Page 9 SETTING AND FASTENING THE DOOR (CONTINUED) Frame Screw Method: Note: If using installation clips, proceed to step 4N. Interior Fixed Panel Threshold Exterior in the bottom of the door frame, as indicated above. by drilling pilot holes through the remaining holes in the retainer into the sill support or wood blocking, then apply sealant to the holes and insert a screw into each hole as specified below.
-
Page 10: Reinstall The Sliding Panel
INSTALLING THE INTERIOR INSTALLATION SCREWS into the rough framing through the clearance holes in the top (head) and sides (jambs) of the unit frame. drive #10 x 3-1/2" corrosion resistant wood screws through the door frame into the rough framing. Drive the screws until snug, DO NOT over- tighten the screws. -
Page 11: Interior Seal
APPLY EXTERIOR PERIMETER SEALANT flush flange on top and sides. DO NOT seal the sill of the door frame to the opening. JAMB CROSS SECTION Exterior View INTERIOR ERIOR FIXED JAMB EXTERIOR STUCCO Flush flange INTERIOR SEAL Caution: Ensure use of low pressure polyurethane window and door installation foams and strictly follow the foam manufacturer’s recommendations for application. -
Page 12: Finishing Instructions
Pella will not be responsible for finishing imperfections. The use of unapproved finishes, solvents or cleaning chemicals may cause adverse reactions with door materials. Pella will not be responsible for problems caused by the use of unapproved materials. If in doubt, contact your local retailer or representative. -
Page 13: Care And Maintenance
Pella. Pella products should not be used in barrier wall systems which do not allow for proper management of moisture within the wall systems, such as barrier Exterior Insulation and Finish Systems, (EIFS) (also known as synthetic stucco) or other non-water managed systems.
