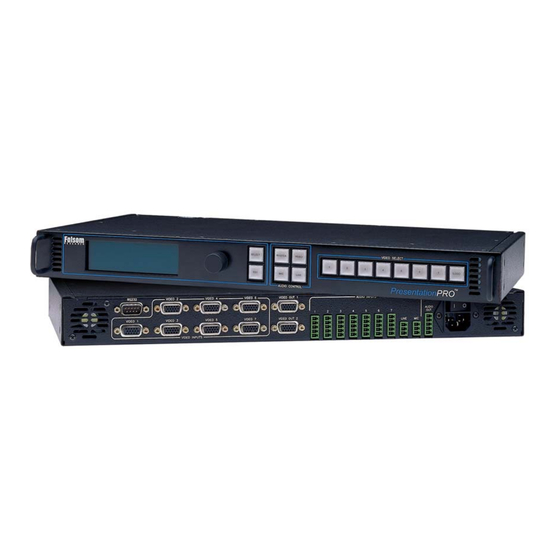

- Page 1 INSTALLATION AND OPERATOR’S MANUAL Model PS-2001 PresentationPRO – Audio and Video Seamless Switcher Manual #26-0006901-00 / Revision E...
- Page 4 RECORD OF CHANGES ECO # REV # DATE DESCRIPTION Approved By 9/18/01 Release to Production David Joyce 9/26/01 Miscellaneous changes David Joyce 10/31/01 Miscellaneous changes David Joyce 5/9/02 Logo limitations, Improved Quick Start Guide, Andreas Yerocostas Miscellaneous small changes 6/20/02 Added handshaking, freeze image, freeze David Joyce mode and TRM remote command.
- Page 5 Operators Safety Summary The general safety information in this summary is for operating personnel. A protective-ground connection by way of the grounding conductor in the Do Not Remove Covers or Panels power cord is essential for safe operation. There are no user-serviceable parts within the unit. Removal of the top cover will expose dangerous voltages.
- Page 6 PresentationPROä Quick Start Guide Illustration of Typical PresentationPRO ä Setup Step 1: Connect PresentationPROä to Output Devices Connect Video Out 1 video output to your projector and the audio output to a set of amplified speakers. Note that the second video output (Video Out 2) may be connected to a local display monitor if the projection screen is not easily viewed by the operator.
- Page 7 For detailed information on the PresentationPRO , please refer to the Installation and Operating Manual supplied with your unit. Folsom Research, Inc. · 11101-A Trade Center Drive, Rancho Cordova CA 95670 · (916) 859-2500 · www.folsom.com...
-
Page 8: Table Of Contents
Table of Contents Chapter 1 – Introduction___________________________________________________________ About the PresentationPRO___________________________________________________ Features__________________________________________________________________ Technical Description________________________________________________________ Chapter 2 – Installation____________________________________________________________ Rear Panel Connectors______________________________________________________ Rack-Mount Installation______________________________________________________ Power Cord/Line Voltage Selection_____________________________________________ Video Input Connections_____________________________________________________ Video Output Connections____________________________________________________ Audio Input Connections_____________________________________________________ Serial Port Connections______________________________________________________ Chapter 3 – Operation_____________________________________________________________ Front Panel Controls________________________________________________________ Source Selection Keys_______________________________________________________ LOGO Key________________________________________________________________... - Page 9 Parity____________________________________________________________________ Handshaking______________________________________________________________ Reset RS-232______________________________________________________________ Tech Support Menu_________________________________________________________ Factory Reset______________________________________________________________ System Save Feature________________________________________________________ Chapter 4 – Remote Commands___________________________________________________ Chapter 5 – Folsom Research Information___________________________________________ Warranty__________________________________________________________________ RMA Information___________________________________________________________ Technical Support/General Contact Information___________________________________ Appendix______________________________________________________________________ Technical Specifications______________________________________________________ Manual # 26-0006901-00 / Revision E PresentationPRO – A/V Seamless Switcher...
-
Page 10: Chapter 1 - Introduction
CHAPTER ONE Introduction What you will find in this chapter… About the PresentationPRO Features Technical Description Manual # 26-0006901-00 / Revision E PresentationPRO – A/V Seamless Switcher... - Page 11 Introduction About the PresentationPRO PresentationPRO is a compact, reliable system that simplifies the task of supporting professional-quality video presentations. The unit combines a seven input A/V router, a high performance video scaler, an audio processor, and a full-featured control panel in a single integrated package. Seven universal A/V inputs accept composite video, s- video, component, computer and video sources with HDTV timing, as well as stereo audio signals.
- Page 12 Manual # 26-0006901-00 / Revision E PresentationPRO – A/V Seamless Switcher...
-
Page 13: Technical Description
Technical Description PresentationPRO is a compact, reliable system that simplifies the task of supporting professional-quality video presentations. The unit combines a seven input A/V router, a high performance video scaler, an audio processor, and a full-featured control panel in a single integrated package. Seven universal A/V inputs accept composite video, s- video, component, computer and video sources with HDTV timing, as well as stereo audio signals. -
Page 14: Chapter 2 - Installation
CHAPTER TWO INSTALLATION What you will find in this chapter… Rear Panel Connectors Rack-Mount Installation Power Cord/Line Voltage Selection Video Input, Audio Input & Output Connections Manual # 26-0006901-00 / Revision E PresentationPRO – A/V Seamless Switcher... - Page 15 Installation Rear Panel Connectors NOTE: Front Panel features are shown on page 14 VIDEO 2 VIDEO 4 VIDEO 6 RS232 VIDEO OUT 1 AUDIO INPUTS AUDIO LINE VIDEO 7 VIDEO 1 VIDEO 3 VIDEO 5 VIDEO OUT 2 VIDEO INPUTS Figure 2-1: PresentationPRO Rear Panel AC Power connector Video Input connectors...
- Page 16 Rack-Mount Installation PresentationPRO units are designed to be rack mounted and are supplied with front rack-mount hardware. Rear rack-mount brackets are available as a kit and are recommended for use when units are mounted in transit cases. When rack mounting the unit, remember that the maximum ambient operating temperature for the unit is 40 degrees C.
-
Page 17: Video Input Connections
Video Input Connections The video input section on the PresentationPRO rear panel provides seven universal inputs. Each input accepts RGB, YUV, S-Video (Y/C), or composite (NTSC or PAL) video signals. The connections for each input channel are made via HD-15 connectors. No adapter cables are required to connect standard computer sources. Adapter cables are available from the factory to facilitate connection to sources that utilize BNC or S-Video connectors. -
Page 18: Video Output Connections
Video Output Connections Two independently buffered RGB outputs are provided. The video on the two output connectors is identical and the signals are designed to connect to projectors and monitors with standard HD-15 cables. One output should be connected to the projection system. The other output may be used for remote monitoring or down-converted to allow the presentation to be recorded. -
Page 19: Audio Input Connections
Audio Input Connections A/V Inputs Each video input has an associated stereo audio input. Mating connectors are provided with the unit to facilitate connection of the audio inputs. The mating connector is FRI P/N 14-9000050-00. The pinout of the connectors is illustrated in the figure below. -
Page 20: Serial Port Connections
Serial Port Connections (Optional) Connection pins on the RS-232 connector are specified below. RS-232 Pin 1 Pin 2 Pin 3 Pin 4 Sig Gnd Pin 5 Pin 6 Pin 7 Pin 8 Pin 9 DB-9 Input Connector Pinout (as viewed from rear of unit) Connection to AC Power Connect PresentationPRO to 115 VAC power using the power cord supplied with the unit. -
Page 22: Chapter 3 - Operation
CHAPTER THREE Operation What you will find in this chapter… Front Panel Controls Source selection, Logo, and Audio Control Keys Menu Control and Operation RBG, S-Video, Composite, Beta, MII, and EBU Color Balance, and Processing Submenus Input Audio/Video Setup Menu Output Video Setup Menu Mic and Line Setup Logo Menu... - Page 23 Manual # 26-0006901-00 / Revision E PresentationPRO – A/V Seamless Switcher...
- Page 24 Operation Front Panel Controls NOTE: Rear Panel features are shown on page 6 SOURCE SELECT MAIN VIDEO LOGO BLACK LINE AUDIO CONTROL Figure 3-1 PresentationPRO Front Panel 1 Main Source Select Keys 2 Logo Storage Key 3 Audio Control Keys 4 Select and Escape Keys 5 Menu Adjust/Control Manual # 26-0006901-00 / Revision E...
-
Page 25: Source Selection Keys
The most current software version is available for download from the Folsom Research web site at ftp://ftp.folsom.com/. If a logo image is stored in non-volatile memory, the image is retrieved and a progress bar is shown with the message “Retrieving Image”. -
Page 26: Menu Operation
The first column of the menu identifies the audio controls and the second column is a graphical “slider” with a marker. The position of the marker represents the volume level of each control. The third column of the menu is a status indicator that may assume three states: ON, OFF, or MUTE. -
Page 27: Save Configuration
INPUT A-V SETUP MENU MODE STANDARD RIGHT EDGE LEFT EDGE TOP EDGE BOTTOM EDGE CONTRAST 100.0% BRIGHTNESS 100.0% INPUT TYPE S-VIDEO COLOR BAL >> PROCESSING >> AUDIO >> UNDO CHANGES RESET CONFIG SAVE CONFIG There are two menu modes, Standard and Advanced. The Standard menus are sufficient for most users. The Advanced menus provide controls for 1:1 pixel sampling features to optimize image quality for critical applications. -
Page 28: Color Balance
scroll to the Input Type menu, select the menu item with the SEL key and then turn the ADJUST control to select the desired format while viewing the output screen. Color Balance The Color Balance menu line calls up a submenu where color balance adjustments are performed. Scroll to the Color Balance menu line and press the SEL key to display the Color Balance Submenu. -
Page 29: Color Balance Submenus
Color Balance Submenus There are 3 different types of Color Balance submenus as described below. Each submenu corresponds to a specific type of input video as selected in the Input Type field of the Input Setup menu. RGB Color Balance Submenu This menu allows the operator to balance the colors on an RGB input source. -
Page 30: Beta 50, Beta 60, Mii And Ebu
Beta 50, Beta 60, MII, and EBU Color Balance Submenus This menu allows the operator to adjust saturation on Beta 50, Beta 60, MII, and EBU input sources. Parameters entered by the operator are saved as part of the input configuration file for the corresponding video input channel. BETA COLOR BALANCE SATURATION 100.0%... -
Page 31: Sequence Detect
3:2 Seq Detect This menu item is applicable only for standard video (component, s-video, composite) video inputs. The default mode is off. The 3:2 Sequence Detect feature should be turned on to process video derived from film source material, which is usually recorded at 24 frames per second. -
Page 32: Operation
sampling errors can cause noise on the output image. Both the sample clock frequency and phase must be correct to obtain a properly sampled image. The unit incorporates automatic adjustments in the 1:1 Sampling mode. 1:1 Sampling Operation To automatically set-up for 1:1 Pixel Sampling, the input image should have non-black data at the edges and have some amount of text or other graphics. -
Page 33: Frame Rate
(1365x768) and (1365x1024). Press SEL to accept the newly entered settings or ESC key to exit without accepting the changes that have been entered. Please note that selections for this menu item do not become active until the SEL key is depressed. Frame Rate The Frame Rate menu item allows the user to select the desired output frame rate. -
Page 34: Effects Menu
Effects Menu The Effects Menu allows the user to adjust the effect duration for transitions as well as the type of transition to be performed. EFFECTS WIPE TYPE RIGHT EDGE ADJ TRANS TIME TRANS MODE IMAGE FREEZE MODE Wipe Type To control the type of wipe transition select the Wipe Type menu item with the SEL key and then turn the adjustment knob to select the desired transition. -
Page 35: Echo
CONFIG SERIAL ECHO BAUD RATE 38.4K DATA BIT STOP BIT PARITY NONE HANDSHAKING RESET RS-232 Echo The user can turn ECHO ON or OFF. When ECHO is ON, commands received by the unit will be transmitted back to the source device. Baud Rate The following baud rate settings are supported 1.2K, 2.4K, 9.6K, 19.2K, and 38.4K. -
Page 36: System Save Feature
Pressing SEL will reset the system to factory configuration and reboot the system. All stored input configuration files are cleared. Pressing ESC will return to the Misc Menu. Startup Menu The STARTUP MENU Menu allows the user to define the startup menu to be AUDIO or SETUP using the SEL button and the adjustment knob. -
Page 38: Chapter 4 - Remote Commands
CHAPTER FOUR Remote Commands What you will find in this chapter… Remote Commands PresentationPRO Command List/Description Manual # 26-0006901-00 / Revision E PresentationPRO – A/V Seamless Switcher... -
Page 39: Remote Commands
Remote Commands AUDEN op n Audio Enable: op[M|V|C|L|1..7] n[0|1] MUTE|ON AUDEN? op Querry Audio Enable: op[M|V|C|L|1..7] Returns mode [0|1] AVT op n A-V Type: op[1..7] n[0|1] Pro|Consumer AVT? op Query A-V Type: Returns op[1..7] n[0|1] Pro|Consumer DL op n Download CFG: op[I] n[1..7] ECHO Echo Enable/Disable: n[0|1] DISABLE|ENABLE ECHO? - Page 40 RTE n Router Switch Command: n[1..7] RTE? Query Router Switch Command: Returns [1..7] STAT? System Status STATS? Print system log SYSAVE Save System Parameters TRNE nn Transition Edge Width: n[2..32] TRN? Query Transition Edge Width: Returns [2..32] TRNM n Transition Mode: n[0-8] 0- Cut, 1-Dissolve, 2-Right Wipe, 3-Left Wipe, 4-Down Wipe, 5-Up Wipe 6-Curtain Open, 7-Curtain Close, 8-Mosaic TRNM? Query Transition Mode: n[0-8] 0- Cut, 1-Dissolve, 2-Right Wipe, 3-Left Wipe, 4-...
- Page 41 PresentationPRO Command List/Description Command: AUDEN op n Description: Audio Enable Mode for selected audio input Parameters: op - Audio input; [M|V|C|L|1-7], Main|Video|Mic|Line|Input 1-7 Input Mode; [0|1], Mute|Enable Query: AUDEN? op Returns the audio enable mode for the selected audio input in the format: Example: AUDEN 2 0 (Set Audio Input Source 2 to Mute.)
- Page 42 LOCKED. SOURCE KEYS ACTIVE FPLOCK D (The Front Panel is unlocked.) FPLOCK? (Returns front panel lock out mode.) Command: FREEZ n Description: Enable/Disable Freeze Parameters: Enable/Disable; n[0/1], OFF|ON Example: FREEZ 1 (Enables freeze on the display.) Command: FSB n Description: Force Scaler Black Parameters: force scaler black mode;...
- Page 43 Query: ICNT? Returns the Input Contrast of the Common, Red, Green, and Blue of the current source in the format: =ccc.c rr.r gg.g bb.b Example: ICNT C 100 (Adjusts the Common Input Contrast value as 100%.) ICNT? (Returns the input Contrast for Common, Red, Green and Blue.) Command: ICPHO nn...
- Page 44 Example: ICSP 0: Adjusts the Input Color Space to RGB. Command: IHUE nnn Description: Adjusts the Input Hue setting (only applicable if input is NOT RGB) of the current source. Parameters: nnn - Input Hue Selection; [0 - 360] degrees Query: IHUE? Returns the Input Hue of the current source in the format:...
- Page 45 Example: LINET 0 (Sets the line type to professional mode.) LINET? (Returns the line type mode.) Command: LOADR Description: Places unit into loader mode. This mode is used to perform field upgrades Parameters: None. Command: MADB n Description: Bypass the Motion Adaptive De-Interlacing feature for the current source. This will reduce delay thru the system.
- Page 46 OFRATE? (Returns the output frame rate.) Command: OSYNC n Description: Adjusts the Output Sync. Parameters: Sync mode; [1|2|3|4|5], -C|+H+V|+H-V|-H+V|-H-V Query: OSYNC? Returns the Output Sync mode in the format: Example: OSYNC 3 (Adjusts the Output Sync value to be +H-V.) OSYNC? (Returns the Output Sync mode.) Command:...
- Page 47 Description: Selects the video input source and switches to this input using the currently selected transition type. An input source selection of 8 will display the Logo if one is stored in non-volatile memory, or black if no logo has been stored. Parameters: Input Source;...
- Page 48 8 = Mosaic Query: TRNM? Returns the transition type in the format: Example: TRNM 2 (Dissolve using transition # 2, wipe right effect) TRNM? (Returns the transition type.) Command: TRNT n.n Description: Transition Time for dissolve and wipe-type transitions. Parameters: n.n - time;...
- Page 49 VPK n Description: Selects Video Peaking mode for the current source. Parameters: mode; [0|1|2|3] Minimum|Nominal|Increasing|Maximum Query: VPK? Returns the Video Peaking Mode in the format: Example: VPK 0 (Set for minimum video peaking.) VPK? (Returns video peaking mode.) Command: VRBOS n Description: Enables or Disables verbose mode for queries.
-
Page 50: Chapter 5 - Folsom Research Information
CHAPTER FIVE Folsom Research Information What you will find in this chapter… Warranty RMA Information Technical Support/General Contact Information Manual # 26-0006901-00 / Revision E PresentationPRO – A/V Seamless Switcher... -
Page 51: Folsom Research Warranty
(drop/crush), and/or other unusual damages. The customer shall pay shipping charges when unit is returned for repair. Folsom Research will cover shipping charges for return shipments to customers. -
Page 52: Appendix
APPENDIX Technical Specifications Manual # 26-0006901-00 / Revision E PresentationPRO – A/V Seamless Switcher... -
Page 53: Technical Specifications
Technical Specifications Video Input Router Input Channels: 8. Video Bandwidth: 350 MHz. Input Sync Signals: Sync-on-Video; Separate C or H, V. Connections: HD-15. Type High-Resolution Video: Supports conversion of RGB videos with horizontal scan rates up to 100 KHz and resolutions up to 1600x1200. -
Page 54: User Controls
Setup Controls: A vacuum fluorescent display, control knob, and (8) keys provide a menu-based front panel interface to support all setup functions. Remote Control Reconfigurable RS-232 port for real-time control. Serial command format is compatible with Folsom/Vista Control Systems "SmartShow" format. Physical Height: 1.75";...
