Dimensions
Plastic-cover model dimensions
(See Figure 5)
Height: 5.375 in. (137 mm)
Width: 6.875 in. (175 mm)
Depth: 2.0 in. (51 mm)
Metal-cover model dimensions
(see Figure 6)
Height: 9.0 in. (25 mm)
Width: 10.37 in. (263 mm)
Depth: 2.25 in. (58 mm)

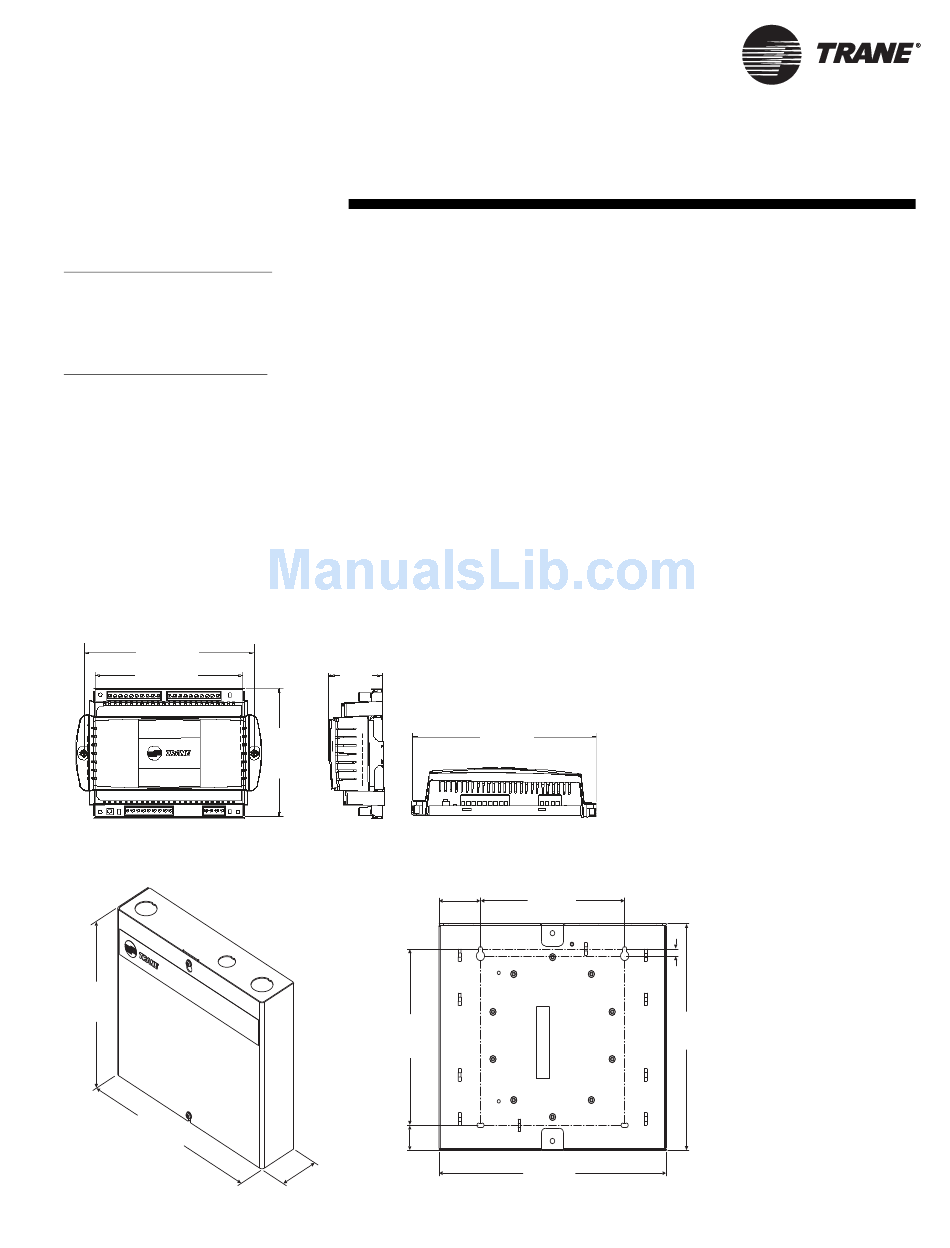

Figure 5: Tracer ZN511 and ZN521 plastic-cover model dimensions
6.3 in
(160 mm)
5.625 in.
(143 mm)
Figure 6: Tracer ZN511 and ZN521 metal-cover model dimensions
9.0 in.
(229mm)
10.37 in.
(263 mm)
with cover
BAS-PRC006-EN

Dimensions and specifications

Power
Supply: 19–30 Vac (24 Vac nominal) at
50/60 Hz
Consumption: 14 VA plus 12 VA
(maximum) per binary output
Operating environment
Temperature:
From 32 to 140°F (0 to 60°C)
Relative humidity:
From 5 to 95% noncondensing
Storage environment
Temperature:
From –40 to 185°F (–40 to 85°C)
Relative humidity:
From 5 to 95% noncondensing
2.0 in.
(51 mm)
5.375 in.
(137 mm)
1.875 in.
(48 mm)
7 .0 in.
(178 mm)
1.0 in.
(25 mm)
2.25 in.
(58 mm)
Agency listings/compliance
CE—Immunity:
CE—Emissions:
UL and C-UL listed:
UL 94-5V (UL flammability rating for
plenum use)
FCC Part 15, Class A
LonMark
(SCC) profile
6.875 in.
(175 mm)
6.5 in.
(165 mm)
10.25 in.
(260 mm)
without cover
EN 50082-1:1997
EN 50082-2:1995
EN 50081-1:1992 (CISPR 22)
Energy management system
®
Space Comfort Controller
0.28 in.
(7 mm)
9.0 in.
(229 mm)
