Summary of Contents for Trane Tracer ZN511

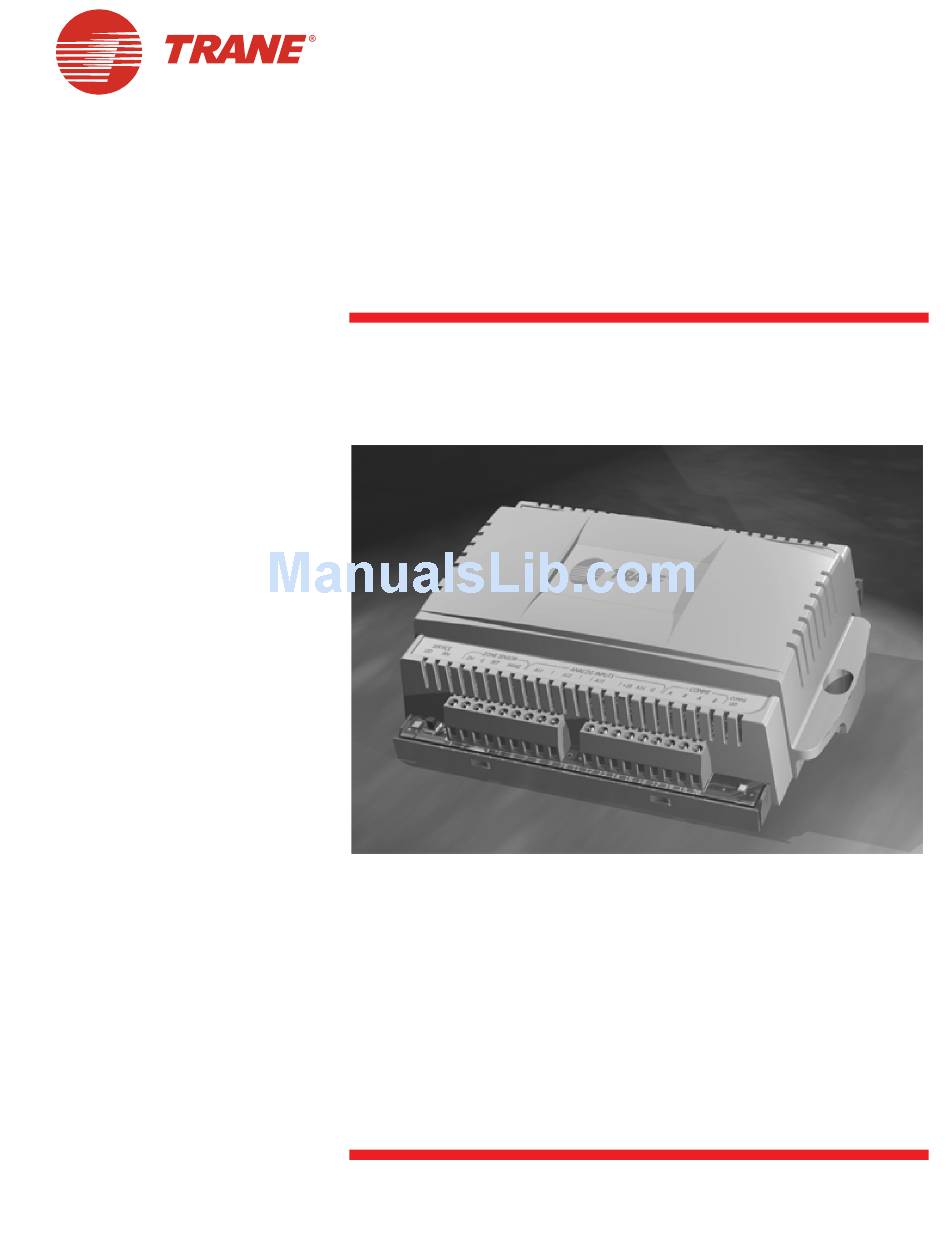

  • Page 1 ™ Tracer Controls Tracer ZN511 and ZN521 Zone Controllers January 2005 BAS-PRC006-EN...
  • Page 2: Introduction

    ™ ® The following are trademarks or registered trademarks of their respective com- panies: Windows from Microsoft Corporation; LonTalk and LonMark from Echelon Cor- poration; Integrated Comfort, Rover, Tracer, and Tracer Summit from Trane. © 2005 American Standard Inc. BAS-PRC006-EN...
  • Page 3: Table Of Contents

    Introduction ......2 Tracer ZN511 zone controller... 4 Inputs and outputs .
  • Page 4: Tracer Zn511 Zone Controller

    The Tracer ZN511 zone controller the temperature is taken. This feature Interoperability provides digital control of fan coils and allows the use of two-way control valves The Tracer ZN511 conforms to the ® water-source heat pumps. The Tracer to provide accurate two-pipe system LonMark...
  • Page 5: Wiring Diagram For The Zn511 Zone Controller

    Wiring diagram for the ZN511 zone controller Figure 1 shows a general wiring diagram for the Tracer ZN511 zone controller. Figure 1: Tracer ZN511 wiring diagram Binary inputs Binary outputs 24 Vac STATUS AC POWER BINARY INPUTS BINARY OUTPUTS ZONE SENSOR...
  • Page 6: Tracer Zn521 Zone Controller

    The controller can be installed in existing the time. If the temperature exceeds the Trane and competitive HVAC equipment Random start setpoint by more than 2°F (1°C), the without major wiring changes, and...
  • Page 7 Automatic ventilation reset Water valve override Two-stage electric heat Because ensuring proper ventilation This function causes all of the water The Tracer ZN521 supports 1- or 2-stage rates is so important for indoor air valves in every unit to open electric heat operation for heating.
  • Page 8: Wiring Diagram For The Zn521 Zone Controller

    Figure 2: Tracer ZN521 wiring diagram Binary outputs Binary inputs 24 Vac STATUS AC POWER BINARY INPUTS BINARY OUTPUTS ZONE SENSOR ANALOG INPUTS COMM5 SERVICE COMM5 ZN GND FAN GND Comm5 (LonTalk) Analog inputs Cancel Comm5 (LonTalk) Trane zone sensor BAS-PRC006-EN...
  • Page 9: Network Architecture

    Network architecture Tracer zone controllers, shown in The Rover service tool can configure the Figure 3, can operate on a Tracer controllers through the communication Summit building automation system, on jack in a zone sensor or at any accessible a peer-to-peer network, or as stand- location on the LonTalk communication alone devices.
  • Page 10: Zone Sensor Options

    Zone sensors are available in a variety of configurations. Table 1 describes Trane zone sensors available for Tracer zone controllers. Figure 4 shows three types of zone sensors for the Tracer ZN511 and ZN521 zone controllers. Table 1: Trane zone sensor options Timed override...
  • Page 11: Dimensions And Specifications

    LonMark Space Comfort Controller From –40 to 185°F (–40 to 85°C) (SCC) profile Relative humidity: From 5 to 95% noncondensing Figure 5: Tracer ZN511 and ZN521 plastic-cover model dimensions 6.3 in (160 mm) 2.0 in. (51 mm) 5.625 in. (143 mm) 6.875 in.
  • Page 12 The Trane Company An American Standard Company www.trane.com Since The Trane Company has a policy of continuous product and product data improvement, it For more information contact reserves the right to change design and specifications without notice. your local district office or...
