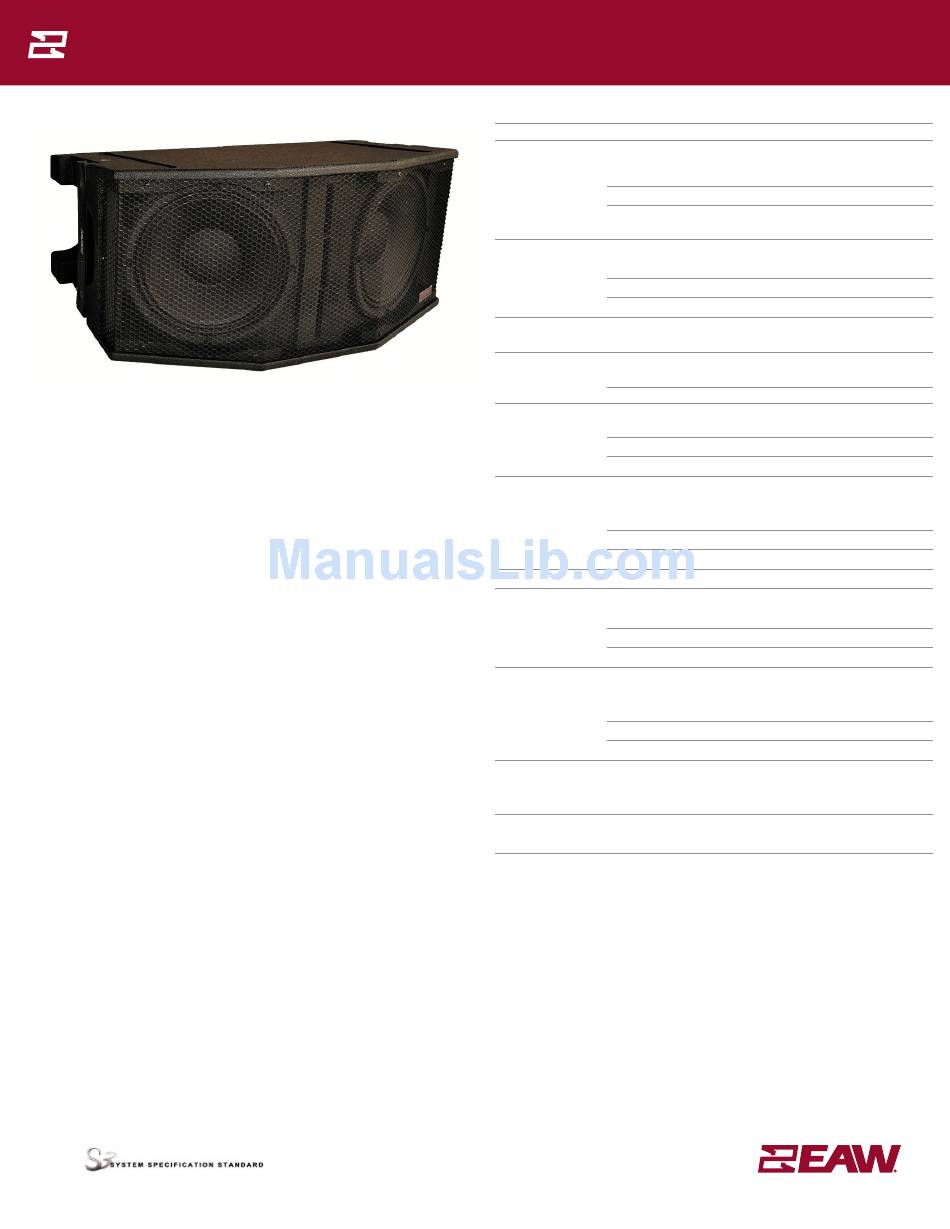

EAW JFL213 Specifications

JFL213
FEATURES
• Two-way, constant curvature line array module
• Compact and light; a "one-person lift"
• Easy to mount, fly or ground stack
• Two-module, pole-mounted arrays or up to five modules flown
• Classic EAW output, pattern control and fidelity
DESCRIPTION
The JFL213 compact, two-way line array module features a range of EAW's
most innovative line array technologies within a mobile, light-weight package
appropriate in a wide range of small- to medium-sized venues. With its
companion subwoofer, the JFL118, this easy-to-use system solves problems in
both portable and permanently installed applications.
The JFL213's two-way design mounts dual 10-in cone transducers in an
optimally vented enclosure and spaced to extend pattern control into the
low frequency range. Three horn-loaded, 0.75-in exit / 1.75-in voice coil
compression drivers deliver even dispersion of high frequency information
over the entire 110° horizontal coverage area.
EAW engineers optimized the JFL213's size, shape and weight for easy transport
and setup by a single person, with side handles designed as part of the rigging
system and aligned with the enclosure's center of balance. Users can mount up
to two JFL213s on a loudspeaker stand with a 35mm/1.38-in diameter pole. The
cleverly-designed, dual-angle pole mount cup allows the bottom enclosure to
be aimed 0° or -15°. (A two-module array with the lower modules aimed at -15°
aims the upper module at 0°.) The JFL118 features an integrated pole mount
cup, letting it serve as a large, stable base for pole mounting.
The JFL213's ultra-strong rigging system allows users to hang up to five modules
with a 10:1 safety factor, which meets or exceeds all standards enforced
throughout the world. A single person can easily connect the modules to the
accessory FB221 Fly Bar as well as to each other. The FB221 also doubles as
a ground stack base for up to four JFL213s. For permanent installation, each
JFL213 provides a pair of M10 threaded mounting points.
The JFL213 allows users to switch between single- or bi-amp powering modes.
The JFL213 delivers optimal performance when operated in bi-amp mode
with an EAW UX Series digital processor. In addition to the HF shading filters,
UX Series digital processor deliver EAW Focusing™ setting, which correct for
anomalies that occur in the time domain of any loudspeaker or transducer.
Enclosures are protected by our tough, scratch-resistant RoadCoat™ finish and
durable, foam-backed steel grilles protect the transducers. Six year warranty.
Eastern Acoustic Works • One Main Street • Whitinsville, MA 01588 • tel 800 992 5013 / 508 234 6158 • fax 508 234 8251 • www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice.
Specifications
2-WAY FULL-RANGE LOUDSPEAKER 110° × 15°
See NOTES TABULAR DATA for details
CONFIGURATION
Subsystem:
Transducer
LF 2× 10 in cone
HF 3× .75 in exit, 1.75 in voice coil
compression driver
Operating Mode:
Amplifier Channels
Single-amp LF/HF
Bi-amp LF,HF
PERFORMANCE
Operating Range:
65 Hz to 20 kHz
Nominal Beamwidth: (rotatable)
Horz 110°
Vert 15°
Axial Sensitivity (whole space SPL):
LF/HF 95 dB
LF 96 dB
HF 102 dB
Input Impedance (ohms):
Nominal
LF/HF 8
LF 8
HF 8
High Pass Filter: High Pass =>60 Hz, 12 dB/octave Butterworth
Accelerated Life Test:
LF/HF 79.9 V
LF 79.9 V
HF 35.7 V
Calculated Axial Output Limit (whole space SPL):
Average
LF/HF 124 dB
LF 125 dB
HF 124 dB
ORDERING DATA
Description
EAW JFL213 Black
Optional Accessories
Eye Bolt Forged Shoulder M10 X 1.5 X 37mm
Flybar JFL & HDA Black [FB221]
Part Number: RD0732 Rev 100
Loading
Vented
Horn-loaded
External Signal Processing
High pass filter
DSP w/2-way filters
65 Hz to 20 kHz
65 Hz to 1520 Hz
1320 Hz to 20 kHz
Minimum
6.4 @ 200 Hz
6.5 @ 630 Hz
11.9 @ 20 kHz
800 W @ 8 ohm
800 W @ 8 ohm
160 W @ 8 ohm
Peak
130 dB
131 dB
130 dB
Part Number
2039885-90
0029818
2036411
August 2012
