EAW JFL210 Declaration Of Conformity

PRODUCT
Product Model:
Description:
Dimensions (h x w x d): 314 mm x 631 mm x 397 mm / 12.4 in x 24.8 in x 15.6 in
Material:
Supplied Accessories: 2x Connecting Pin
Accessories:
COUNTRY OF ORIGIN FOR THE PRODUCT AND COMPONENTS
China
TECHNICAL SPECIFICATIONS
The JFL210 and JFL118 loudspeakers are to be suspended below the FB121 Fly Bar or JFL118
loudspeaker. When used in accordance with the JFL Series Owner's Manuals the Working Load Limits
(WLL) and Design Factor are:
Nominal Weight of JFL210
Nominal Weight of JFL118
Nominal Weight of FB121
WLL (for Fly Bar mixed array)
WLL (for Fly Bar JFL210 only array)
Ultimate Strength Design Factor
STANDARDS CONFORMITY
The JFL210 loudspeakers are designed and intended to be suspended from the FB121 Fly Bar, JFL118
loudspeaker or M10 Eye Bolts in accordance with the JFL Series Owner's Manual.

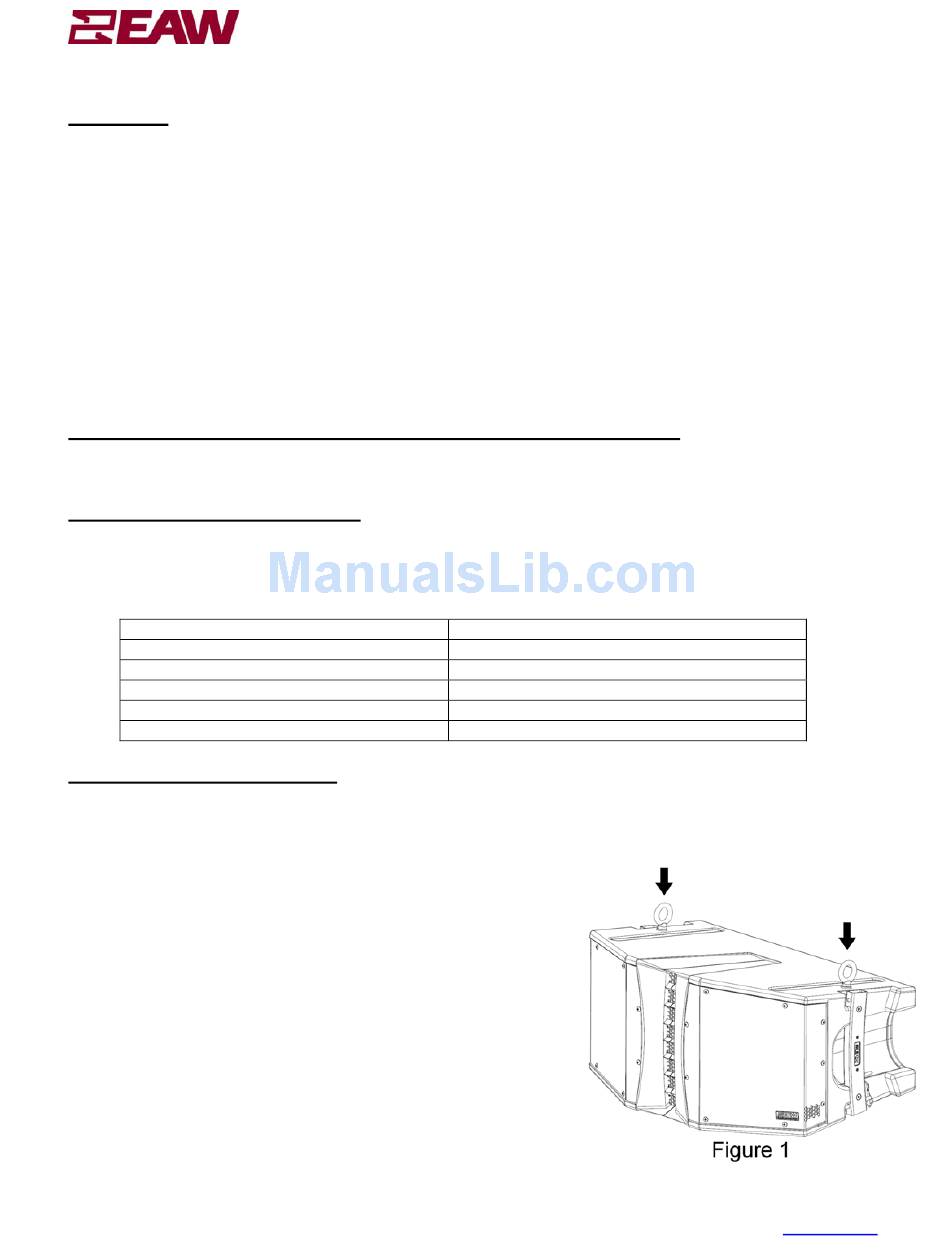

Up to six (6) JFL210/JFL118 loudspeakers may be vertically
suspended in a column below either the FB121 Fly Bar or M10
Eye Bolts. JFL210 loudspeakers must be flown below JFL118
loudspeakers in a mixed array. Two (2) M10 Eye Bolts must be
installed in the PI points of the top loudspeaker of Eye Bolt
suspended arrays (Figure 1). Two (2) M10 Eye Bolts may be
installed in the PI points of the bottom loudspeaker and bridled
together to be used as pullback points to set the desired array tilt
angle (Figure 2).
The total weight of any combination of JFL210/JFL118 must not
exceed the WLL of the integral rigging components or that of the
FB121 Fly Bar. For combinations of JFL210 and JFL118, use the
following formulas to determine maximum quantities of each. This
keeps the total weight of the JFL210/JFL118 combination within
the above-specified WLL.
Eastern Acoustic Works
One Main Street
Whitinsville, Ma 01588

CE DECLARATION OF CONFORMITY

JFL210 Loudspeaker
Loudspeaker
A513 steel tubing
4140 steel bar stock
Spare Connecting Pin
M10 Eye Bolt
FB121 Fly Bar
JFL118 Loudspeaker
Page 1 of 3 March 2009
p/n 0029139-90
p/n 0031237-90
p/n 0031298-01
p/n 0031298-01
p/n 0029818
p/n 0031170
p/n 0032275
p/n 0030529-90
p/n 0032250-90
24 kg / 52 lb
44 kg / 97 lb
13 kg / 29 lb
264 kg / 582 lb
142 kg / 312 lb
>10:1
