PRODUCT
Product Model:
Description:
Dimensions (h x w x d): 508 mm x 631 mm x 740 mm / 20.0 in x 24.8 in x 29.1 in
Material:
Supplied Accessories: 3x Connecting Pin
Accessories:
COUNTRY OF ORIGIN FOR THE PRODUCT AND COMPONENTS
China
TECHNICAL SPECIFICATIONS
The JFL118 and JFL210 loudspeakers are to be suspended below the FB121 Fly Bar or JFL118
loudspeaker. When used in accordance with the JFL Series Owner's Manuals the Working Load Limits
(WLL) and Design Factor are:
Nominal Weight of JFL210
Nominal Weight of JFL118
Nominal Weight of FB121
WLL (for Fly Bar)
Ultimate Strength Design Factor
STANDARDS CONFORMITY
The JFL118 loudspeakers are designed and intended to be
suspended from the FB121 Fly Bar or M10 Eye Bolts in accordance
with the JFL Series Owner's Manual.
Up to six (6) JFL118/JFL210 loudspeakers may be vertically
suspended in a column below either the FB121 Fly Bar or M10 Eye
Bolts. JFL210 loudspeakers must be flown below JFL118

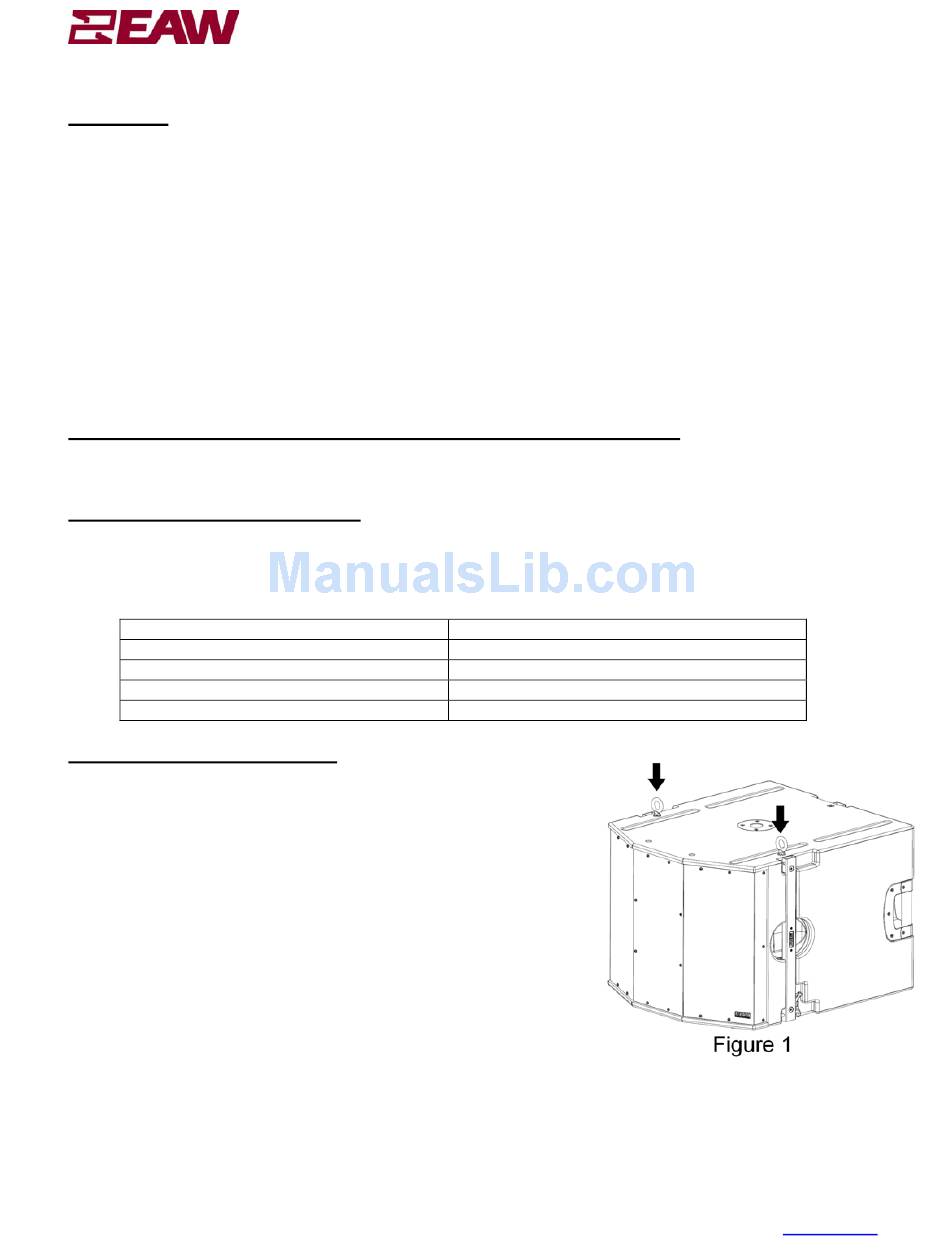

loudspeakers in a mixed array. Two (2) M10 Eye Bolts must be
installed in the front PI points of the top loudspeaker of Eye Bolt
suspended arrays (Figure 1). For a JFL118 only array, one (1) M10
Eye Bolt may be installed in the rear PI point of the bottom
loudspeaker as a pullback point to set the desired array tilt angle
(Figure 2).
For a mixed array, two (2) M10 Eye Bolts may be
installed in the PI points of the bottom JFL210 loudspeaker and
bridled together to be used as pullback points to set the desired
array tilt angle (Figure 3).
Eastern Acoustic Works
One Main Street
Whitinsville, Ma 01588
CE DECLARATION OF CONFORMITY
JFL118 Loudspeaker
Loudspeaker
A513 steel tubing
4140 steel bar stock
Spare Connecting Pin
M10 Eye Bolt
FB121 Fly Bar
JFL210 Loudspeaker
Page 1 of 3 October 2008
p/n 0030529-90
p/n 0032250-90
p/n 0031196-01
p/n 0031196-01
p/n 0029818
p/n 0031170
p/n 0032275
p/n
0029139-90
p/n 0031237-90
27 kg / 52 lb
44 kg / 97 lb
13 kg / 29 lb
264 kg / 582 lb
>10:1
Tel: 800 992 5013
e-mail:
info@eaw.com
www.eaw.com
