EAW JFX88 Specifications

FEATURES
• Minimally sized for smallest venues and lowest profile
applications
• HF compression driver and vented LF for fully professional
performance
• Wave Guide Plate™ optimizes HF pattern for near field
applications
• Asymmetric enclosure provides multiple mounting angles
• Pole mount cup plus U-bracket & Omnimount® Series 100
or similar mounting points
• Passive crossover for easy operation and economical
powering
DESCRIPTION

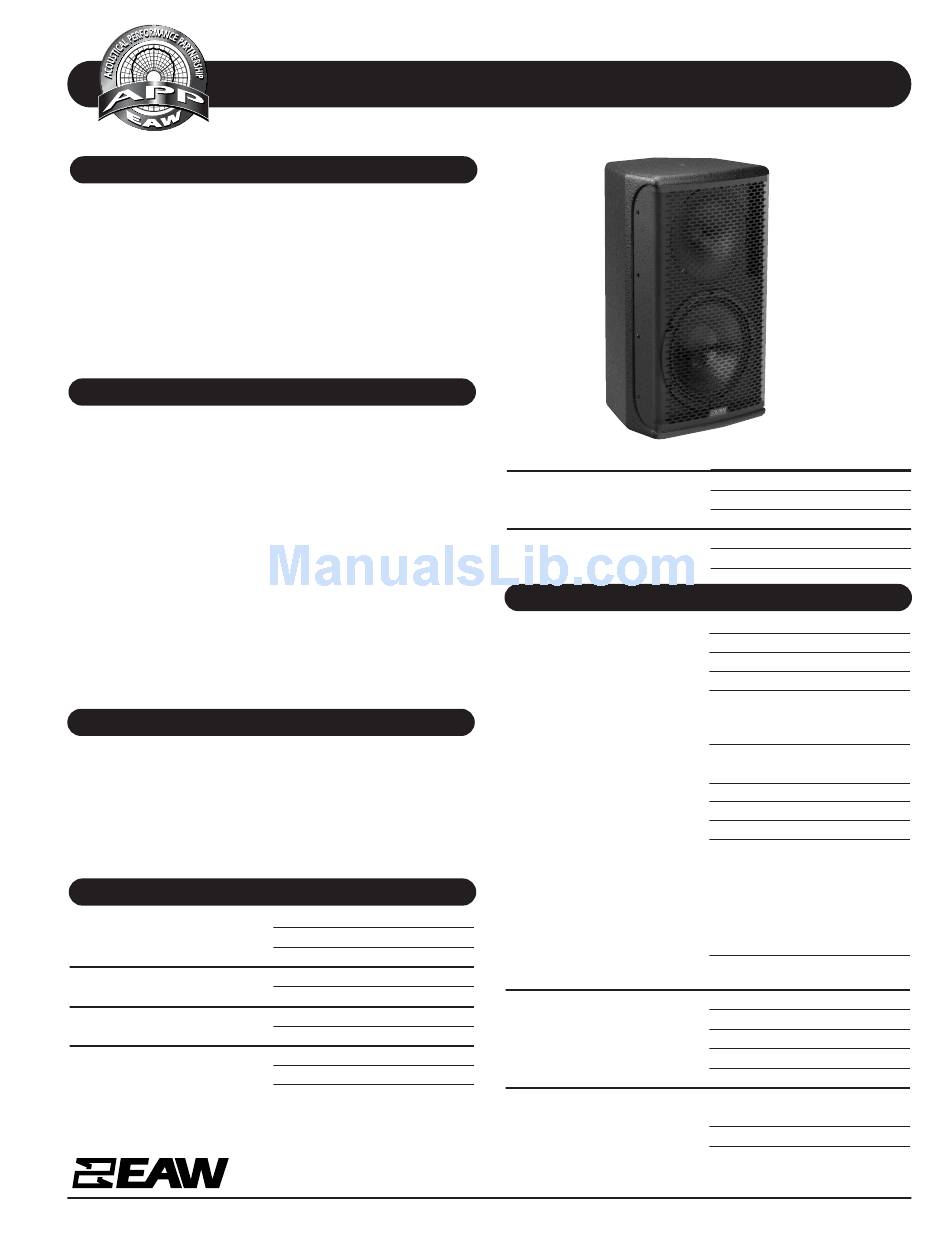

The JFX88 is a 2-way ultra-compact multi-use loudspeaker.
Its multi-functional design adds considerably to its value as a
full-range loudspeaker. Combining high output and natural
reproduction, it is specifically outfitted to serve in a variety
of both portable and permanent applications. The asymmet-
ric enclosure provides typical angles needed for ceiling and
wall mounting as well as for stage monitor operation. For
permanent installation, enclosure hardware includes mount-
ing points for an optional U-bracket and an Omnimount®
Series 100 or similar bracket. A pole mount cup is provided
for portable use. The JFX88 is particularly suitable as a
nearfield main loudspeaker or as a fill/delay element in larg-
er systems. Its wide angle projection makes audience cover-
age easy. While the JFX88 is well suited as is for many appli-
cations, the addition of a subwoofer expands its capabilities
for more demanding applications such as for small houses of
worship, theaters, and band PA. Six year warranty.
APPLICATION
• Portable systems or permanent installations
• Wall and ceiling mountings
• Very low profile appearance
• Main PA reinforcement in small spaces
• Under balcony / stage lip / delay fill
• A/V and/or surround sound installations
• Voice & F/X reinforcement in themed attractions
PERFORMANCE
Frequency Response (1 W @ 1 m)
±3 dB 115 Hz to 20 kHz
-10 dB 70 Hz
Axial Sensitivity (dB SPL, 1 W @ 1 m)
Full Range 94
Impedance (Ohms)
Full Range 8
Power Handling (Watts, continuous)
Full Range 300
One Main Street, Whitinsville, MA 01588
EAW products are continually improved. All specifications are therefore subject to change without notice.
Calculated Maximum Output (dB SPL @ 1 m)
Nominal Coverage Angle / -6 dB points (degrees)
Dimensions
Weights
508 234 6158 Toll Free 800 992 5013
SPECIFICATIONS JFX88
Full Range Peak 125
Full Range Long Term 119
Conical 100
PHYSICAL
Part Number 0001753
System Configuration 2-way, full-range
Powering Passive LF/HF crossover
LF Subsystem 1x 8-in, vented
HF Subsystem 1x 1-in exit/1.4-in voice coil
Recommended High-Pass
Frequency (24 dB/octave) 70 Hz
Enclosure Materials Exterior grade Baltic birch plywood
Finish Wear resistant textured black paint
Connectors 2x Neutrik NL4 Speakon
Hardware Pole mount cup (bottom); 4x
Grille Powder coated perforated steel,
Height 17.46
Width (front) 9.79
Width (rear) 4.42
Depth 9.20
Net Weight 27
Shipping Weight 31
FAX 508 234 8251
JFX88/0004637/2 pp
compression driver on Wave
Guide Plate™
5/16"-18 threaded mounting
points for Omnimount Series 100
(rear); 2x 3/8"-16 threaded
mounting/suspension points (1
each top and bottom) for wall
mount bracket
foam backed
inches millimeters
443
249
112
234
pounds kilograms
12.3
14.1
info@eaw.com www.eaw.com
September 2002 Printed in USA
