CONGRATULATIONS on your choice of an Alarm System by Crimestopper Security Products Inc. This booklet
contains the information necessary for installing, using, and maintaining your alarm system. If any questions
arise, contact your installation dealer or Crimestopper Security Products Inc. at the Tech Support number below.
*IMPORTANT INFORMATION: Primary and Optional Features:
-PRIMARY: These are features that must be connected in order for the system to operate properly; i.e. the Siren,
L.E.D., +12V Power, Ground, Door pin, Flashing lights Override/Program/Valet Button etc.
-OPTIONAL: These are features to be connected if desired or agreed upon by the installing dealer. These
features may also require additional parts and/or labor fees. Consult with your installer beforehand; i.e. Door
Locks, Starter disable, Hood/Trunk trigger, and Auxiliary Remote Outputs etc.
This installation book is designed for the installer or individual with an existing understanding of automotive
electrical systems, along with the ability to test and connect wires for proper operation. To ease installation, we
suggest that you READ THIS MANUAL before beginning your installation. This book is provided as a GENERAL
GUIDLINE and the information contained herein may differ from your vehicle.
TECH SUPPORT
Mon-Fri 8:00 AM-4:30 PM Pacific Time
(800) 998-6880
REV. 12-2008

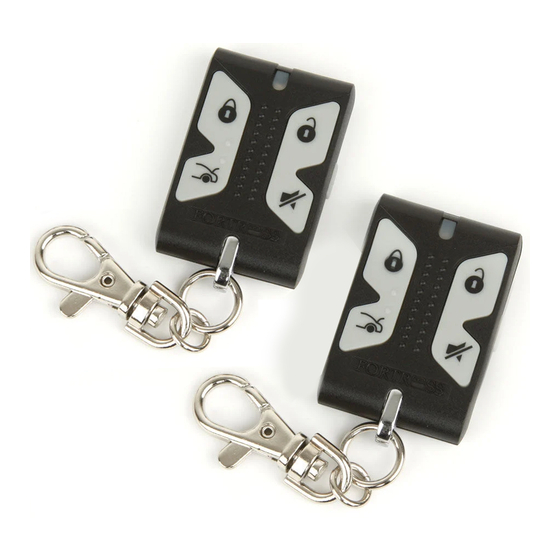

FS-20
REMOTE CONTROL ALARM SYSTEM
INSTALLATION INSTRUCTIONS
INTRODUCTION
This device complies with FCC Rules part 15. Operation is subject to
the following two conditions: 1) This device may not cause interference,
and (2) this device must accept any interference that may be received,
including interference that may cause undesired operation.
manufacturer is not responsible for any radio or TV interference caused
by unauthorized modification to this equipment. Such modification
could void the user's authority to operate the equipment.
The
Advertisement
Table of Contents
Related Manuals for CrimeStopper Fortress FS-20
Summary of Contents for CrimeStopper Fortress FS-20
- Page 1 TECH SUPPORT Mon-Fri 8:00 AM-4:30 PM Pacific Time (800) 998-6880 REV. 12-2008 FS-20 INTRODUCTION This device complies with FCC Rules part 15. Operation is subject to the following two conditions: 1) This device may not cause interference, and (2) this device must accept any interference that may be received, including interference that may cause undesired operation.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Pre-Installation Considerations…..…….……………………………….……………………………………….……2 Cautions & Warning…………………………..……………...……………………..…………………….…….…..…..3 Component Mounting………………..………………………………………………………………………………….3 Wiring………………………………………………………………………..…………………..………….….…….….4-5 SHOCK SENSOR Wiring…….…………….………….….…..…………………………………………………………6 LED and Valet Switch Wiring………………..………………………….……...7 Power Door Lock Wiring……………………………………………………….………………………….…...….…7-8 Transmitter Programming………………………………………………………………………………………………9 Option Programming…………………………………………….…….………………….…….…………...….…10-13 Starter Kill Diagram..……………………………………………..……………………………..……………..………14 Wiring Diagram..…………………………………………………..……………………………..……………..………15 Data Port Diagram …………………………………………………………………………………………………..…16 PRE-INSTALLATION CONSIDERATIONS BEFORE BEGINNING, check all vehicle manufacturer cautions and warnings regarding electrical service (AIR BAGS, ABS BRAKES, ENGINE / BODY COMPUTER AND BATTERY). -
Page 3: Cautions & Warning
CAUTIONS & WARNINGS DAMAGE RESULTING FROM IMPROPER INSTALLATION IS NOT COVERED UNDER WARRANTY!! DO NOT remote start your vehicle in a closed garage. Make sure that the garage door is open or there is adequate ventilation. Failure to observe this rule could result in injury or death from poisonous Carbon Monoxide fumes. -
Page 4: Wiring
WIRING GREEN WIRE: (-) NEGATIVE DOOR TRIGGER Identify the wire that reads ground when any door is open and 12 volts when all doors are closed. Some vehicles may have isolated door triggers. In this case you may need to run additional wires from other doors or go directly to the wire that triggers the vehicle’s interior dome light. - Page 5 WIRING BLACK/WHITE WIRE: (-) NEGATIVE DOME LIGHT ILLUMINATION OUTPUT (Optional, requires a relay) This wire provides a (-) negative ground when the system is disarmed to activate a vehicles dome light circuit. We recommend the use of a relay for this connection. Connect Black/White to terminal #85 of relay. Connect terminal #86 to fused constant +12V.
-
Page 6: Shock Sensor Wiring
WIRING: 4-PIN Shock Sensor (26 Gauge wires) Sensor Adjustment Adjust the main shock sensor with the small White dial. Clockwise will increase sensitivity and counter-clockwise will decrease sensitivity. Adjust Pre-Warning level with small Black dial. GREEN LED (-) TRIGGER (-) PRE-WARN GROUND 12 VOLTS SHOCK SENSOR: The sensor supplied with this system... -
Page 7: Led And Valet Switch Wiring
WIRING: 2-PIN LED / 2-PIN Program-Valet Button (26 gauge wires) Mount Status LED in a visible location on the Dash or Console. Connect the small 2-pin plug from the LED to the control module. Note: Connectors are designed so that they will only plug into their appropriate slots. Mount the Valet/Program/Override button in a suitable location. -
Page 8: Power Door Lock Wiring
POWER DOOR LOCK WIRING NEGATIVE TRIGGER DOORLOCK WIRING GREEN BLUE REVERSE POLARITY DOOR LOCK WIRING GREEN BLUE MASTER SWITCH POSITIVE TRIGGER DOORLOCK WIRING GREEN BLUE FACTORY POWER LOCKING RELAYS AFTERMARKET MOTOR/DOOR LOCK WIRING GREEN FUSED +12V BLUE FUSED +12V FACTORY POWER LOCKING RELAYS... -
Page 9: Transmitter Programming
NOTE: All transmitters must be learned at the time of programming. This system can learn up to 4 remotes. 1. Turn key to the ON position and press program button 4 times. 2. After a short delay, the unit will flash the parking lights 4 times, Siren 4 times, Horn 4 times and status LED will be on solid. -
Page 10: Option Programming
1. Turn the Ignition ON and press the Override/Program button 5 times. 2. After a short delay, the parking lights will flash 5 times, Siren 5 times, Horn 5 times and status LED will be on solid. 3. Within the next few seconds, press the Override/Program button [again] the number of times that corresponds to the options chart below. - Page 11 OPTION PROGRAMMING NOTE: Options can be instantly restored to Factory Default Values. To restore default values: Perform step #1 (See page 10), then press button 3 (trunk). The siren and horn will chirp 4 times and lights will flash 4 times. Turn OFF Ignition. All programming options will be restored to * Default * values (See page 10).
- Page 12 OPTION PROGRAMMING 6. ACTIVE RE-ARMING Active Re-arming allows the system to re-arm itself 30 seconds after disarmed with the transmitter if a door has not been opened. This is handy if the vehicle is accidentally disarmed (via the Transmitter in your pocket) without you knowing it.
- Page 13 OPTION PROGRAMMING Cont. 14. CARJACK FEATURES This option controls the unit’s Car Jack features. Enable or Disable Carjack (Turn ON or OFF) with this option. 15. Lock/Unlock or Arm/Disarm with Ignition ON This option allows you Arm and Disarm the system with the Ignition ON. This is used when there is a remote starter added to the system.
-
Page 14: Starter Kill Diagram
STARTER KILL DIAGRAM Locate the vehicle starter solenoid or relay wiring. Wire up as shown below. Control Sensor Plug Module Not Used Valet / Program Plug Data Port Plug Not Used Antenna Wire STARTER SOLENOID STARTER KILL High Current Plug Door Lock Plug LED Plug IGNITION... -
Page 15: Wiring Diagram
Remote Output # 1 Gray Trunk Pop Relay Factory Car Horn Horn Honk Brown/white (500mA) Dome Light Dome Light Black/White (+) or (-) Remote Output # 2 White/Red AUX 2 Relay Door Switch Purple WIRING DIAGRAM Hood Switch Blue NOTE: All (-) Outputs are 500mA Black Ground... -
Page 16: Data Port Diagram
Bypass Module Module Not Included www.crimestopper.com Phone (800) 998-6880 FAX (805) 581-9500 © 2008 Crimestopper Security Products DATA PORT DIAGRAM Data wire 9 10 11 12 13 14 15 16 OBD connector iDATA LINK CABLE Data Port ONLINE TECHNICAL SUPPORT www.crimestopper.com...
