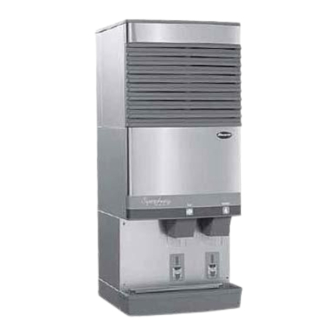

C/E110CT400A/W
Following installation, please forward this manual
110 Series – 220V 60Hz/230V 50Hz
Installation, Operation and Service Manual
C/E110CR400A/W
to the appropriate operations person.
801 Church Lane • Easton, PA 18040, USA
(610) 252-7301 • Fax (610) 250-0696 • www.follettice.com
Ice and Water Dispensers
C/E110FB400A/W
00109520R03
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Follett 110 Series
Summary of Contents for Follett 110 Series
- Page 1 Order parts online www.follettice.com C/E110CT400A/W Following installation, please forward this manual 110 Series – 220V 60Hz/230V 50Hz Ice and Water Dispensers Installation, Operation and Service Manual C/E110CR400A/W to the appropriate operations person. 801 Church Lane • Easton, PA 18040, USA (610) 252-7301 •...
-
Page 2: Table Of Contents
A return authorization number has been issued by customer service within 30 days after shipment. Follett receives the equipment at the factory in Easton, PA within 30 days after issuance of the return authorization number. The equipment must be returned in Follett packaging. If the packaging has been damaged or discarded, Follett will forward, at the customer’s expense, new packaging. -
Page 3: Before You Begin
After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If damage is found, notify your shipper immediately and contact Follett Corporation for help in filing a claim, if necessary. Check your paperwork to determine which model you have. Follett model numbers are designed to provide information about the type and capacity of Follett equipment. -
Page 4: Specifications
Specifications Electrical Models with Satellite-fill icemakers (C/E110CR400A/W) 220V/60Hz/1 phase 230V/50Hz/1 phase Freestanding models and models with integral icemakers (C/E110FB400A/W, C/E110CT400A/W) 220V/60Hz/1 phase 230V/50Hz/1 phase Dispensers and Satellite-fill icemakers are supplied with 7-foot power cord Ambient Air temp 38°C/100° F max. Water temp 32°C/90°F max. -
Page 5: Field Wiring
Field wiring for countertop dispensers with Satellite-fill icemakers Model C110FB400A/W E110FB400A/W C110CT400A/W E110CT400A/W C110CR400A/W E110CR400A/W Electrical connection Current cord provided 220V 60Hz, 6.5 amp 230V 50Hz, 6.5 amp cord provided 220V 60Hz, 6.5 amp 230V 50Hz, 6.5 amp cord provided 220V 60Hz 230V 50Hz dispenser: 1.5 amp... -
Page 6: Installation
Installation procedures Before you begin • All dispensers must be installed level in both directions to ensure proper operation • Required ventilation and recommended service clearances: • Countertop models with Satellite-fill icemaker (C/E110CR400A/W) — none. 305mm (12") at top recommended for service. •... - Page 7 Fig. 1 – Rear connections, freestanding models (B) 3/4” FPT drain (A) 3/8" FPT water inlet (A) (D) 3/8" FPT condenser inlet location (water- cooled only) water inlet (E) 3/8" FPT condenser drain location (water- cooled only) (C) 3/4" MPT icemaker drain location (air- cooled only)
-
Page 8: Installing Countertop Dispensers
2. Drill four 5mm (3/8") holes in counter (Fig. 2) to anchor dispenser to counter. Follett countertop dispensers can have any or all utilities run directly through counter or out rear of dispenser. For dispensers with any utilities exiting through counter, make counter cut-out as shown in Fig. - Page 9 10. Apply a thick bead, approximately. 6mm (1/4") diameter, of NSF listed silicone sealant (Dow- Corning RTV-732 or equivalent) 6mm (1/4") inside marked outline of dispenser. 11. Carefully position dispenser on counter. 12. Remove four screws securing splash panel to front of dispenser and gently lay splash panel on counter.
-
Page 10: Installing Satellite-Fill ™ Icemakers
Installing Satellite-fill icemakers Models C/E110CR400A/W See Icemaker Installation Manual (form #00124453) for critical installation instructions for Satellite- fill icemakers. Failure to comply with these instructions will result in poor performance and void warranty. 1. Install Satellite-fill icemaker following instructions in icemaker manual. 2. - Page 11 1. Remove dispenser top front cover by removing two screws at bottom corners of cover, lifting cover slightly and pulling forward. 2. Remove icemaker compartment top and side panels. 3. Remove icemaker hold-down bracket from front of icemaker compartment. 4. Lift icemaker onto dispenser top and slide icemaker completely into position, compressor end first. Front of icemaker base must be flush with front of dispenser.
-
Page 12: User Information
How the dispenser works Follett’s 110 series automatic load ice and water dispensers receive ice from Follett’s 181kg (400 lb)/day icemaker located in the dispenser base, in the cabinet top or in a remote location up to 6m (20 ft) away. Ice produced is stored in the bin section of the dispenser. - Page 13 Recommended weekly cleaning 1. Wash drain pan and grille with Solution A above. Rinse thoroughly. 2. Slowly pour solution of one cup (237ml/8 oz) household bleach mixed with 3.8L (1 gallon) hot water into drain pan to help prevent algae growth in drain lines. f dispenser is a SensorSAFE unit: 3.
-
Page 14: Service Information
Service information Wiring diagrams How unit works — lever models The dispense wheel motor and dispense solenoid are energized through the power and ice dispense switches. The water solenoid valve is energized through the power and water dispense switches. The icemaker receives the bin signal through the power switch, the normally closed bin thermostat and the icemaker switch. -
Page 15: Wiring Diagram - Sensorsafe ™ Models
How unit works — SensorSAFE models SensorSAFE models provide “touchless” ice and water dispensing. When a container is placed within the actuation zone below the ice or water chute on SensorSAFE dispenser models, an infra-red signal reflects off the container and is detected by the sensor. -
Page 16: Dispenser Troubleshooting
Dispenser troubleshooting Disconnect power to dispenser and icemaker before putting hands or arms in storage area, or attempting any repair or service to equipment. Before calling for service: • Check that there is ice in dispenser bin area • Check that congealed cubes are not causing a jam Symptom 1. -
Page 17: Troubleshooting Sensorsafe Board And Sensors
Troubleshooting SensorSAFE board and sensors Board guide LEDs, when illuminated, indicate the following: (board power) (cleaning, no dispensing cycle) (ice dispensing activated) (water dispensing activated) Problem: Does not dispense ice or water Action Check LEDs on control board Place cup under drop zone Problem: Dispenses ice or water continuously Action... -
Page 18: Disassembly And Replacement Instructions
Lens/sensor troubleshooting 1. Turn dispenser power switch off. 2. Remove splash panel. 3. Disconnect wires from output terminal(s) (WTR, SOL, WM) on board. 4. Gently remove appropriate sensor/mounting block assembly from panel by moving block sideways until edge of block clears retaining tab of panel. -
Page 19: Ice Transport Tube Replacement
Ice transport tube replacement Top mount ice machines, model C/E110CT400A/W Only use tubing supplied by Follett Corporation. Ice transport tube replacement Models C/E110FB400A/W, C/E110CR400A/W Correct installation of ice transport tube is critical to Satellite-fill icemaker performance. Replacement ice transport tubes for Satellite-fill icemakers must be insulated and run continuously from icemaker to dispenser with no dips or bends with a radius of less than 153mm (6"). - Page 20 9. Slip supplied hose clamp onto tube and push tube onto exit port of evaporator. Do not twist hose when securing to evaporator. Only use tubing supplied by Follett Corporation. 10. Fasten tube on port with hose clamp, being sure that clamp is positioned on evaporator side of nozzle flange.
-
Page 21: Thermostat Locations
Thermostat locations Thermostat locations – C/E110CT400A/W ice deflector bracket assembly rubber grommet ice level control stat ice level control stat Hand bend cap tube end to approx. 45° as shown Thermostat locations – C/E110CR400A/W, C/E110FB400A/W well nut rubber grommet ice level control stat ice level control stat bin thermostat... -
Page 22: Parts
Parts Dispenser exterior Part # Description 502756 Cover, top front, 110 countertop (CT) 502703 Cover, top front, 110 countertop unit with Satellite-fill icemaker (CR) & freestanding (FB) 502704 Cover, lower section, 110 freestanding (FB) units 502681 Cover, dispense chute 501100 Knurled screws, front cover 502705 Drain pan... -
Page 23: Dispense Chute And Splash Panel Areas - Lever Models
Dispense chute and splash panel areas — lever models Part # Description 502057 Fastener, dispense chute bracket 502356 Tube, water station 502681 Cover, dispense chute 501829 Switch, dispense, ice, lever actuated (includes 501841) 502359 Switch, dispense, water, lever actuated (includes 501841) 502247 Bracket, chute (includes fasteners 502057) 502358... -
Page 24: Dispense Chute And Splash Panel Areas - Sensorsafe Models
Dispense chute and splash panel areas – SensorSAFE Part # Description 502057 Fastener, dispense chute bracket 502681 Cover, dispense chute (includes labels) 502248 Chute and funnel, ice 502249 Chute, water 502247 Bracket, chute (includes fasteners 502057) 502690 Lens, sensor 502710 Splash panel (includes 2 of 502690) 502927 Solenoid assy, water, 220V, 60Hz/230V, 50Hz... -
Page 25: Wheel Motor And Drive System
Wheel motor and drive system Part # Description 501699 Wheel motor, 220V, 60Hz/230V, 50Hz 501026 Washer, thrust 501607 Fan blade, wheel motor 501619 Drive shaft (includes threaded rod and nut, see #6, page 26) 502691 Chain, 54 link 502692 Sprocket, drive shaft, 35 teeth 501019 Sprocket, wheel motor, 10 teeth 501024... -
Page 26: Hopper Components
Hopper components Top view – top mounted unit Dispense wheel – bottom view all units Part # Description 501802 Baffle, ice 501493 Wheel, dispense (includes drive bar, rotating agitator, threaded bar & rod) 501494 Agitator, rotating 502712 Bracket, ice tube 501100 Screw 501612... -
Page 27: Chilled Water Components
Ice transport tubing Part # Description 502522 Ice transport tube (Satellite-fill units) – 3.1m (10 ft) 502523 Ice transport tube (Satellite-fill units) – 6.1m (20 ft) 501176 Ice transport tube insulation (Satellite-fill units only) – sold by the foot 502327 Ice transport tube assembly (110 freestanding units) 502697 Ice transport tube assembly (110 top mount units) -
Page 28: Solenoid Dispense Assembly
Solenoid dispense assembly Part # Description 501844 Solenoid, dispense, 220V, 60 Hz/230V, 50Hz 502040 Cotter pin 502039 Linkage, solenoid (includes 502054 grommet) 502042 Block, dispense gate 502054 Grommet 502045 Splash pan, gate assembly 502038 Shoulder screw and washer 501824 Spring, gate assembly 00128157 Gate assembly, 220V, 60 Hz/230V, 50Hz (includes reference numbers 1 through 8 above)
