Follett Horizon Chewblet 1000 Series Manual

Horizon
™
Chewblet ice machine
®
Short form specification
Ice machine to be a Follett ® Horizon
Chewblet ice machine
model ________________ [Insert size
from model number guide] without
remote condensing unit (for connection
with rack system) or with remote
air-cooled condensing unit, capable
of producing compressed nugget ice
using an efficient, sanitary horizontal
evaporator/auger system and delivering
ice by a flexible wire reinforced,
transport tube to ice storage bin,
ice and water dispenser, ice and
beverage dispenser, drop-in dispenser or Ice Manager
valve system and provided with a stainless steel frame and exterior,
slide-out evaporator unit with utility docking station, front-mounted
unit status display, automatic self-flush, and semi-automatic cleaning
& sanitizing system, plus all the features listed below and mounting/
performance-enhancing accessories checked:
Horizon performance features
• Produces popular Chewblet nugget ice and 3/8" (9.5 mm) length
Micro Chewblet ice (see Ice production tables on page 8):
1000 series - up to 900 pounds (409 kg) in 24 hours or
1400 series - up to 1333 pounds (605 kg) in 24 hours or
1650 series - up to 1580 pounds (717 kg) in 24 hours
Optional RIDE™ remote ice delivery equipment transports ice
through a flexible tube up to 75 ft (22.9 m) from bin/dispenser
(10' (3 m) for Micro Chewblet ice)
• Horizontal evaporator maximizes ice production
• Uses less water than cube ice machines
• Rejects less heat than a typical cube ice machine
• Quiet operation without noisy batch harvest cycles
Unique Chewblet ice advantages
• Consumer-preferred chewable ice for beverages
• More reliable dispensing compared to other nugget or pellet ice
• Higher liquid displacement than cube ice
• Standard Chewblet ice – approximately 1" (25.4 mm) length,
Micro Chewblet ice approximately 3/8" (9.5 mm) length
Key Horizon design features
• Compact design offers in-cabinet/undercounter, floor stand, wall
bracket, on-fountain dispenser, or on-bin mounting
• Standard slide-out docking-station design allows removal of
evaporator unit without disconnecting utilities
• Unique auger design reduces loads on gearmotor & bearings
• Easy-to-read LED operating status & diagnostic display
• 10 ft (3 m) flexible ice transport tube and insulation standard with
RIDE models
Sanitation and safety features
• Aluminum-bronze evaporator has antimicrobial properties
• Automatic self-flushing reduces water scale buildup
• Floatless, sealed design inhibits formation of biofilms
• Semi-automatic cleaning & sanitizing system
Product warranty
• 3 years, parts & labor
• 5 years parts on compressor
U.S. Patents
7,263,844, 7,469,548,and 7,469,552

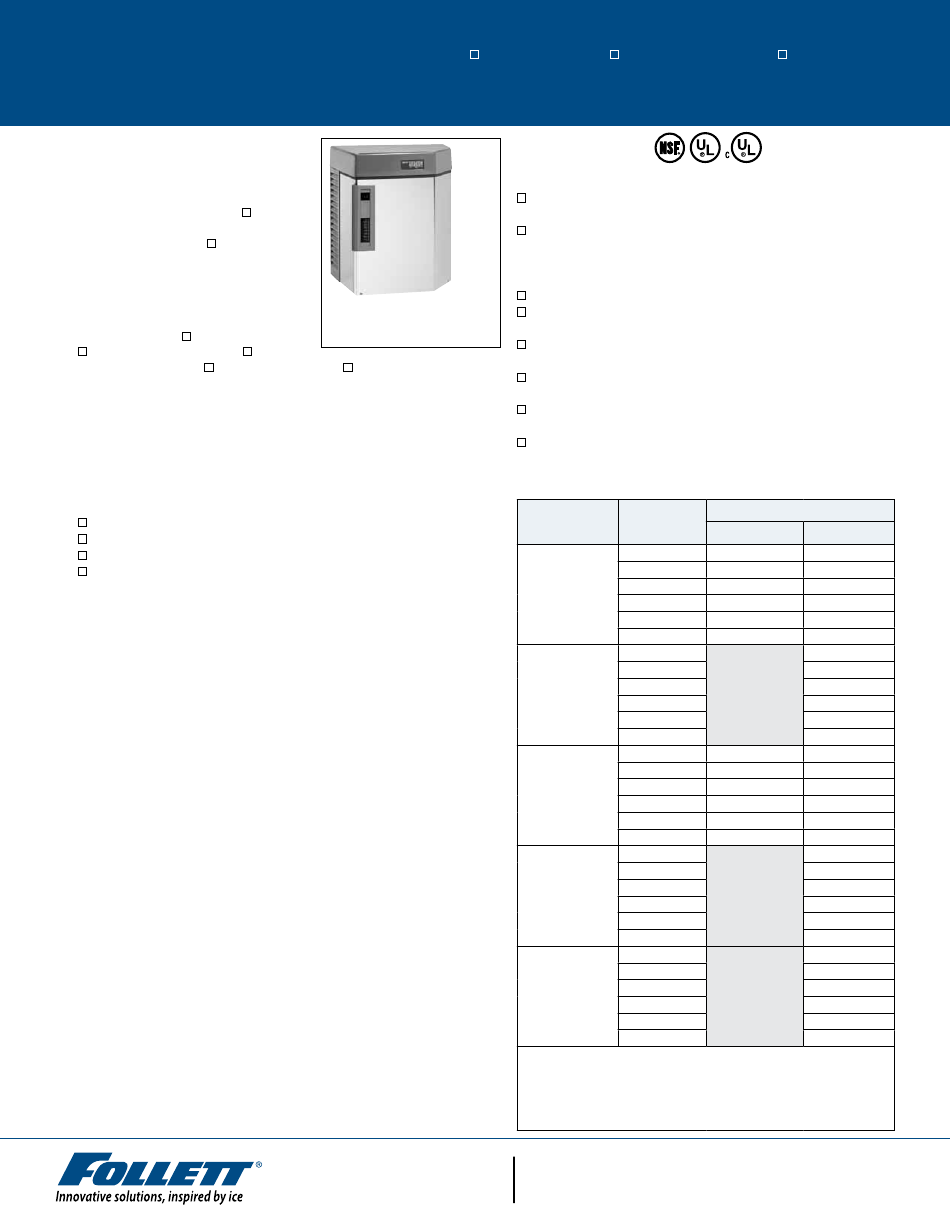

HCD1400RBS shown
™ diverter
Follett Corporation
801 Church Lane • Easton, PA 18040, USA
+1 (610) 252-7301 • Fax +1 (610) 250-0696
www.follettice.com
1000 series 1400 series or 1650 series
with remote air-cooled condensing unit
Agency approvals
Available accessories
Harmony conversion top kit for ice and beverage
™
dispensers
Water filter kit (Item# 00130286 - see form# 9905 for
dimensions)
___ ea. extra primary water filter cartridge
___ ea. extra pre-filter cartridge
Wall mount bracket (see accessory form# 3311)
Ice machine stand, height-adjustable
(see accessory form# 3311)
Longer ice transport tube, specify length: ___ ft/m in
5 ft/1.5 m increments (10 ft/3 m is standard)
35 ft (10.7 m) refrigeration lines (P/N: 00193227 –
not pre-charged) for 1000R and 1400R
35 ft (10.7 m) refrigeration lines (P/N: 00977785 –
not pre-charged) for 1650R
Timer to control one or two Horizon ice machines
(see accessory form# 3311)
Model number guide
Use/
Condenser
application
with
without
with ice with
storage bins
without
with
without
with
without
with Follett
with
Vision™
without
line dispensers
with
without
with
without
with ice/
beverage with
dispensers
without
(by others)
with
without
with
without
with
for drop-In
dispensers
without
with
without
with
without
with
with
Ice Manager
diverter
without
valve system
with
without
* Requires Harmony top kit (see page 3 for part number)
Notes: For Micro Chewblet ice, replace second character (C) with an M
e.g. HMC1000ABT
For three phase remote condensing unit, replace 3rd character
(D) with F.
