USB LED
The USB LED glows green when the Access Point is successfully connected to a
computer with a USB cable.

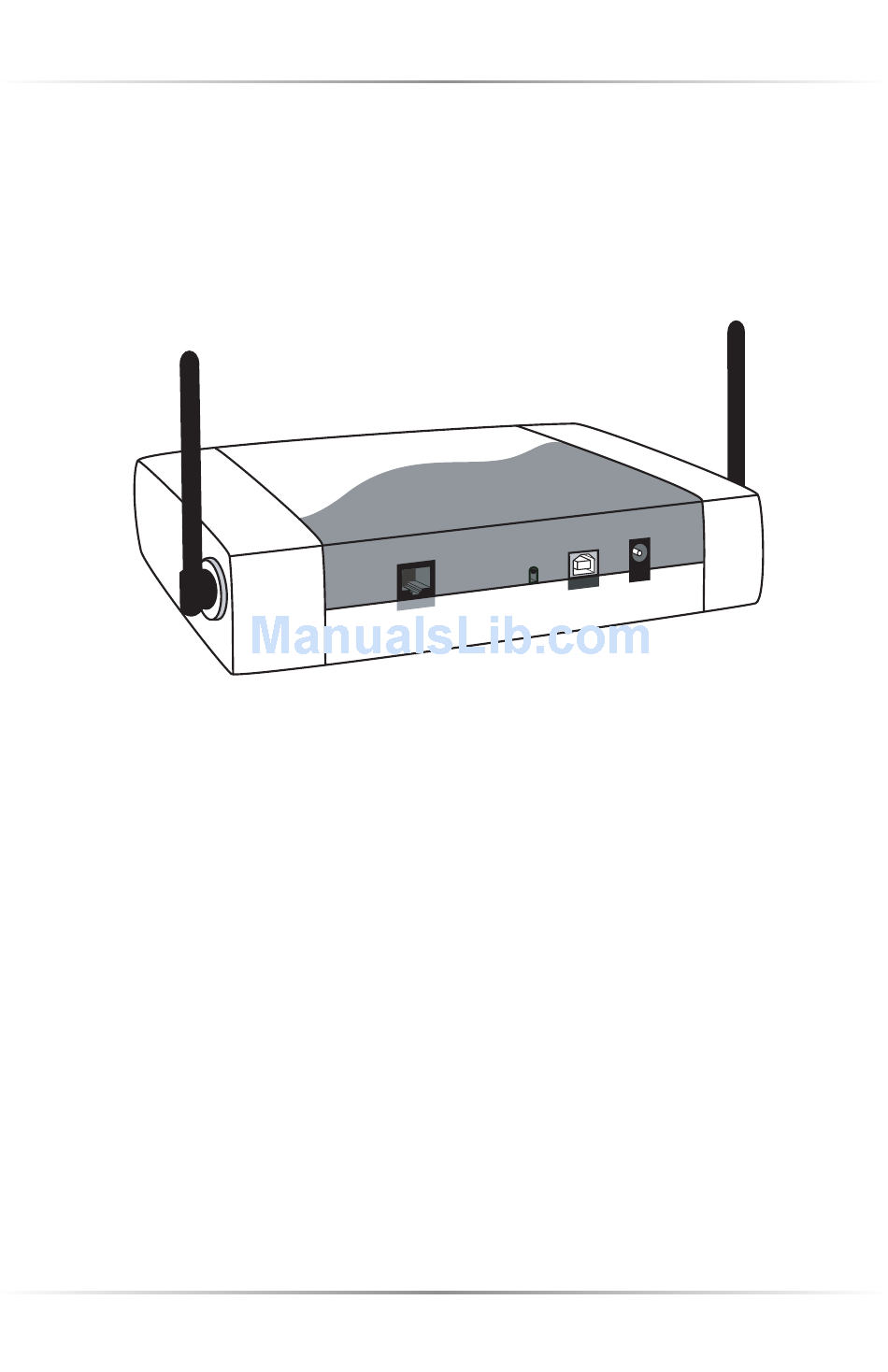

Rear Panel
The Access Point has three ports and a Reset button on its rear panel.
LAN Port
The LAN port is used to connect the Access Point to a hub or computer with the
Ethernet cable.
USB Port
The USB port is used to connect the Access Point to a computer with the USB cable.
Power Port
The Power port is used to connect the Access Point's Power cord.
Reset Button
The Reset button is used to reset the Access Point and restore the factory default
settings.
Chapter 1 Introduction
L A N
5
P o w e r
U S B
R e se t
