Remote Transmitters

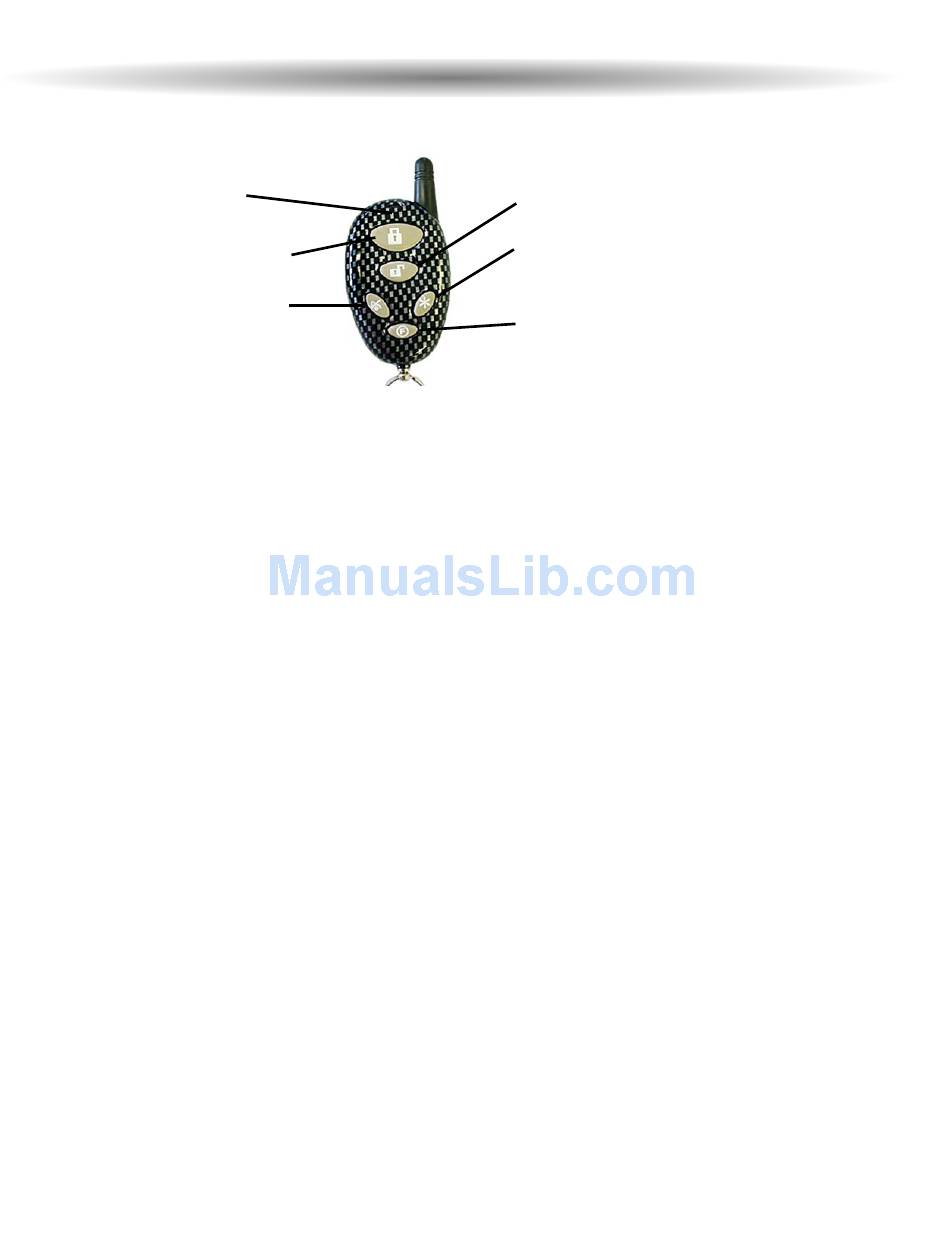

Standard Remote Transmitter Description
LED
Button 2
Button 1 Button 4
Button 3
Button 5
The VisionGuard 6000 is compatible with the optional 5-button Remote Transmitters used to control system
operations.
Note: Using the optional PC or Pocket PC interface with the network software, it is possible to reconfigure
the functionality of the transmitter buttons. The standard (default) setting for operation of the transmitters
is described below.
Button 1 Arms the system and when held for 2 seconds, activates the system's Panic feature. Button 1 also
locks the doors when the system is in Valet Mode.
Button 2 Disarms the system. Pressing Button 2 again operates the Passenger Unlock feature (if installed).
Button 2 also unlocks the doors when the system is in Valet Mode.
Button 3 Activates the Auxiliary 1 output. This output will remain on for as long as the button is pressed.
Button 4 Activates the Remote Start feature.
Button 5 is the Page Shift button. Each time the Shift Button is pressed, the LED on the transmitter will
illuminate and the transmitter functions will shift to the next page, allowing access to another set of
features. Once shifted to another page (there are 4 pages total), the transmitter will remain on that page
for 10 seconds or until a button is pressed, then return to page 1. Each time a transmitter button is pressed
and held, the LED will flash a number of times to indicate from which page it is transmitting. Under
normally operation, only pages 1 and 2 are used. Pages 3 and 4 are usually used for Two Car Operation
(see page 3) or optional expansion modules.
Shift then Button 1 Arms the system silently.
Shift then Button 2 Disarms the system silently.
Shift then Button 3 Activates the Auxiliary 2 output. This output will remain on for as long as the button
is pressed.
Page 2 - VisionGuard 6000
