Option Installation; Opening The Transceiver's Case - Icom IC-i7410 Instruction Manual

Hf/50 mhz transceiver

Table of Contents

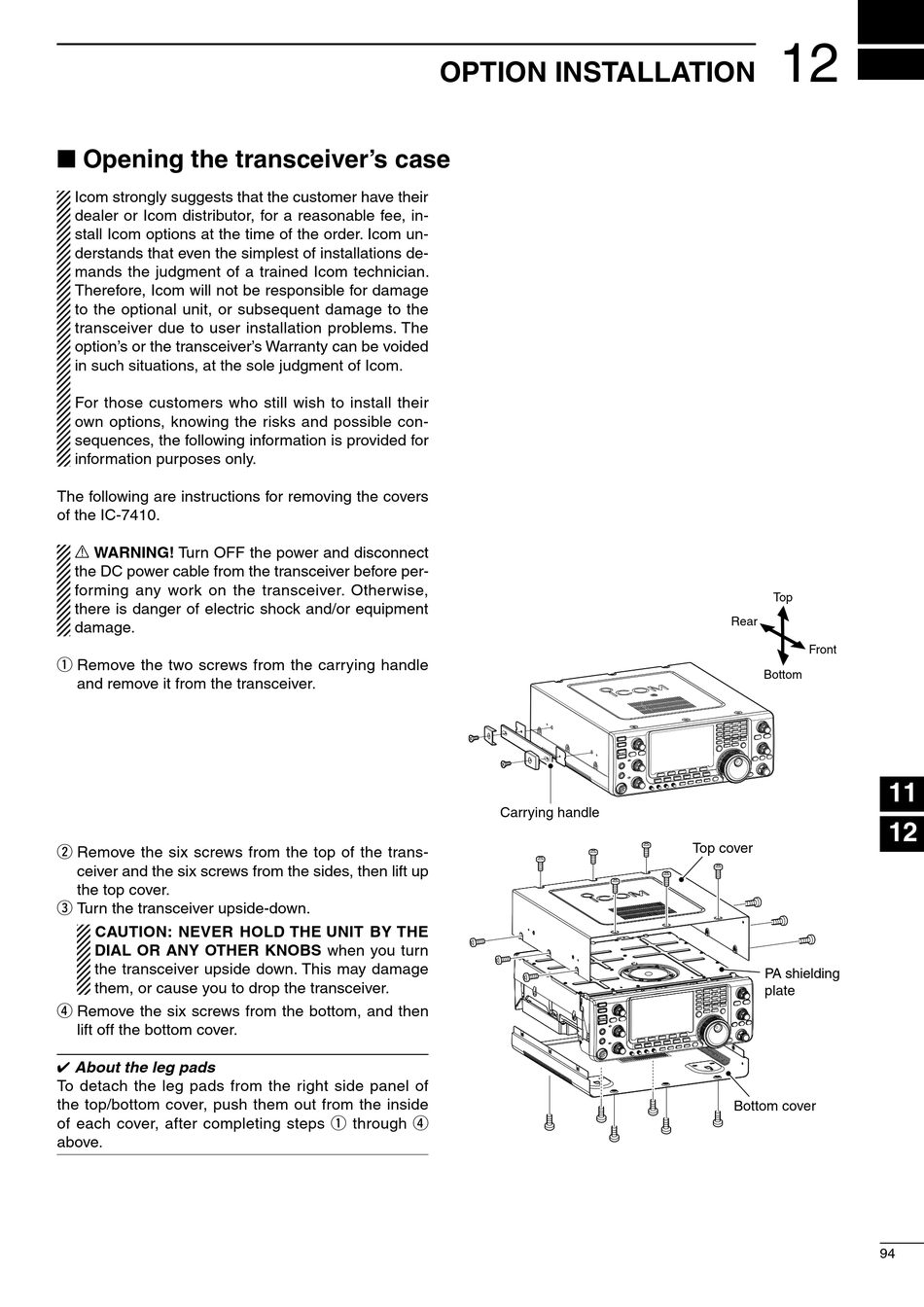

■ Opening the transceiver's case

Icom strongly suggests that the customer have their

dealer or Icom distributor, for a reasonable fee, in-

stall Icom options at the time of the order. Icom un-

derstands that even the simplest of installations de-

mands the judgment of a trained Icom technician.

Therefore, Icom will not be responsible for damage

to the optional unit, or subsequent damage to the

transceiver due to user installation problems. The

option's or the transceiver's Warranty can be voided

in such situations, at the sole judgment of Icom.

For those customers who still wish to install their

own options, knowing the risks and possible con-

sequences, the following information is provided for

information purposes only.

The following are instructions for removing the covers

of the IC-7410.

R WARNING! Turn OFF the power and disconnect

the DC power cable from the transceiver before per-

forming any work on the transceiver. Otherwise,

there is danger of electric shock and/or equipment

damage.

q Remove the two screws from the carrying handle

and remove it from the transceiver.

w Remove the six screws from the top of the trans-

ceiver and the six screws from the sides, then lift up

the top cover.

e Turn the transceiver upside-down.

CAUTION: NEVER HOLD THE UNIT BY THE

DIAL OR ANY OTHER KNOBS when you turn

the transceiver upside down. This may damage

them, or cause you to drop the transceiver.

r Remove the six screws from the bottom, and then

lift off the bottom cover.

✔ About the leg pads

To detach the leg pads from the right side panel of

the top/bottom cover, push them out from the inside

of each cover, after completing steps q through r

above.
