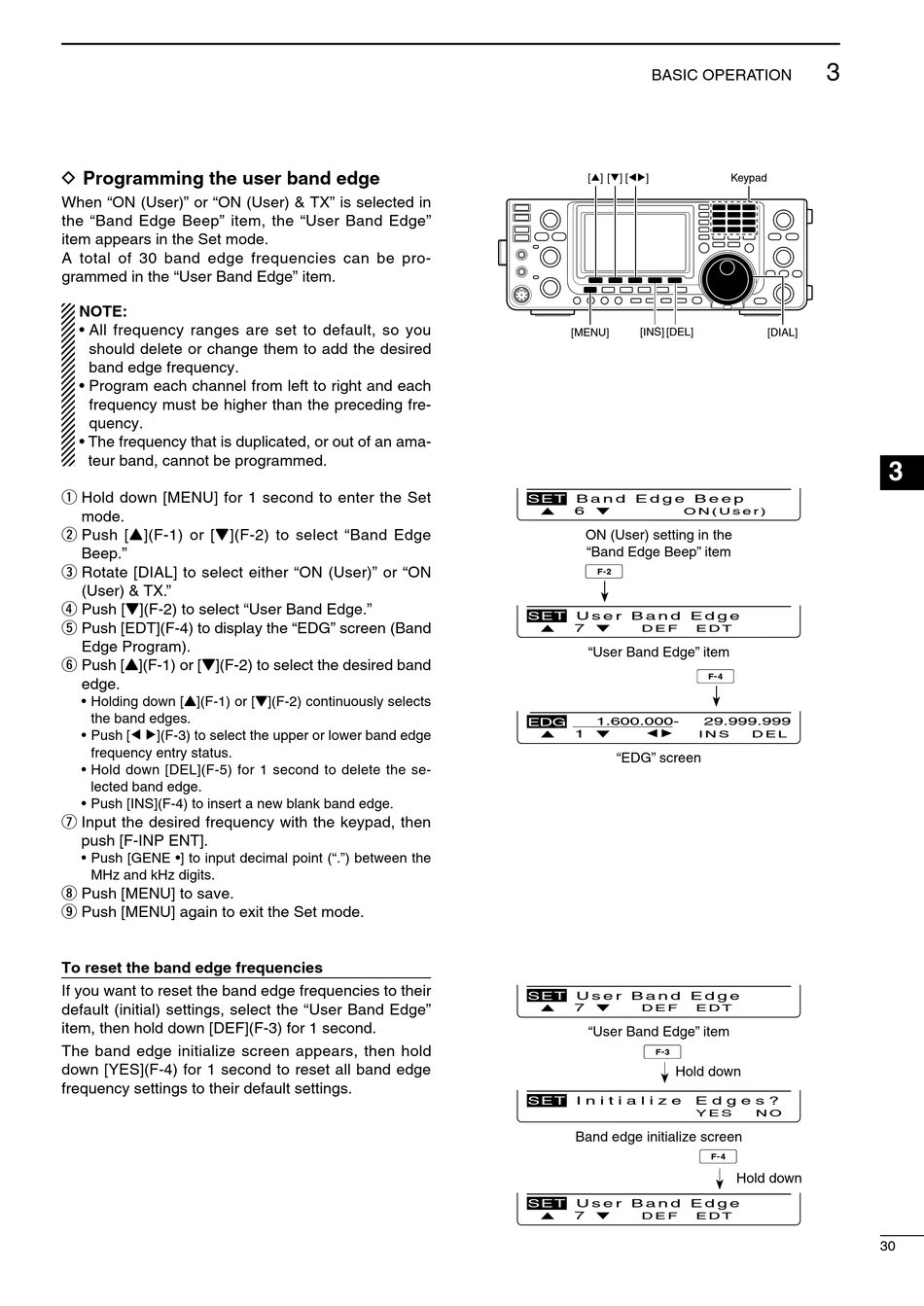

D Programming the user band edge

When "ON (User)" or "ON (User) & TX" is selected in
the "Band Edge Beep" item, the "User Band Edge"
item appears in the Set mode.
A total of 30 band edge frequencies can be pro-
grammed in the "User Band Edge" item.
NOTE:
• All frequency ranges are set to default, so you
should delete or change them to add the desired
band edge frequency.
• Program each channel from left to right and each
frequency must be higher than the preceding fre-
quency.
• The frequency that is duplicated, or out of an ama-
teur band, cannot be programmed.
q Hold down [MENU] for 1 second to enter the Set
mode.
w Push [Y](F-1) or [Z](F-2) to select "Band Edge
Beep."
e Rotate [DIAL] to select either "ON (User)" or "ON
(User) & TX."
r Push [Z](F-2) to select "User Band Edge."
t Push [EDT](F-4) to display the "EDG" screen (Band
Edge Program).
y Push [Y](F-1) or [Z](F-2) to select the desired band
edge.
• Holding down [Y](F-1) or [Z](F-2) continuously selects
the band edges.
• Push [Ω ≈](F-3) to select the upper or lower band edge
frequency entry status.
• Hold down [DEL](F-5) for 1 second to delete the se-
lected band edge.
• Push [INS](F-4) to insert a new blank band edge.
u Input the desired frequency with the keypad, then
push [F-INP ENT].
• Push [GENE •] to input decimal point (".") between the
MHz and kHz digits.
i Push [MENU] to save.
o Push [MENU] again to exit the Set mode.
To reset the band edge frequencies
If you want to reset the band edge frequencies to their
default (initial) settings, select the "User Band Edge"
item, then hold down [DEF](F-3) for 1 second.
The band edge initialize screen appears, then hold
down [YES](F-4) for 1 second to reset all band edge
frequency settings to their default settings.
BASIC OPERATION
[∫] [√] [Ω≈]
[INS] [DEL]
[MENU]
SET B a n d E d g e B e e p
6
Ù Ú O N ( U s e r )
ON (User) setting in the
"Band Edge Beep" item
SET U s e r B a n d E d g e
7
Ù Ú D E F E D T
"User Band Edge" item
1.600.000-
EDG
1 Ω ≈
Ù Ú I N S
"EDG" screen
SET U s e r B a n d E d g e
7
Ù Ú D E F E D T
"User Band Edge" item
Hold down
SET I n i t i a l i z e E d g e s ?
Y E S
Band edge initialize screen
SET U s e r B a n d E d g e
7
Ù Ú D E F E D T
3
Keypad
[DIAL]
29.999.999
D E L
N O
Hold down
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
30
