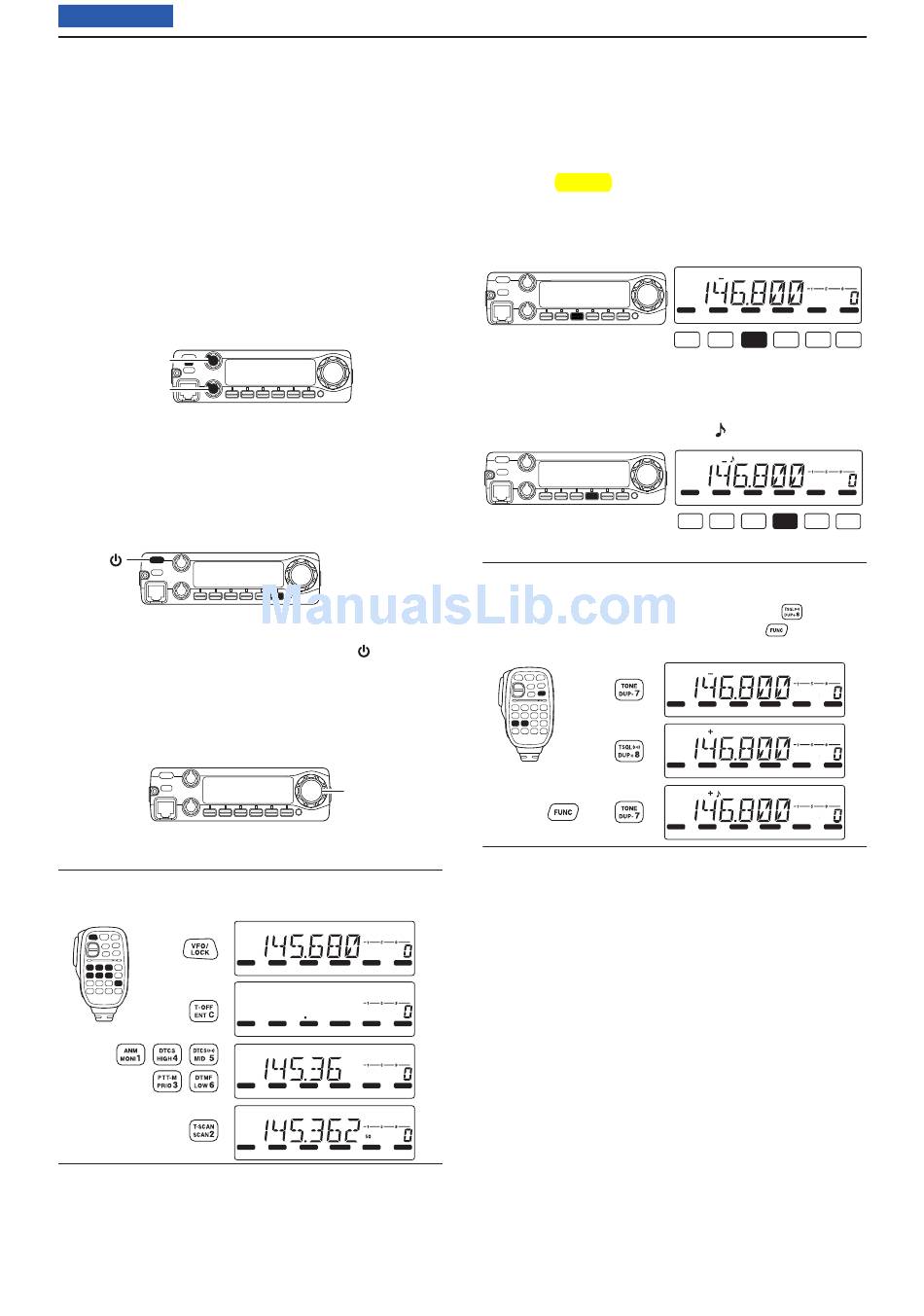

QUICK REFERENCE GUIDE
■ Your fi rst contact
Now that you have your IC-2300H installed in your car
or shack, you are probably excited to get on the air. We
would like to take you through a few basic operation
steps.
1. Turning ON the transceiver
Before turning ON your IC-2300H, make sure the au-
dio volume and squelch level controls are set to 9–10
o'clock.
[VOL]
[SQL]
Set both [VOL] and [SQL] to
the 9–10 o'clock position.
Although you have purchased a brand new transceiver,
some settings may have changed from the factory de-
faults because of the QC process. The Partial Rest is
recommended to start with factory default settings.
[ ]
➥ While holding down [V/MHz], hold down [ ] for 1 sec-
ond to reset the CPU.
2. Tune the desired frequency
[DIAL] will allow you to set the frequency you want to op-
erate on. Page 6 explains how to set the tuning speed.
Using the HM-133V
You can directly enter the frequency with the HM-133V keypad.
[i.e.]: Setting the frequency to 145.3625 MHz.
Push
Push
Push
Push
[SCAN] (V/MHz)
[DIAL]
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET
MONI LOW TONE M/CALL V/MHz

■ Repeater operation

1. Setting duplex
Hold down [DUP] (LOW) for 1 second several times to
select minus duplex or plus duplex.
• The USA version has an Auto Repeater function, therefore, setting
duplex is not required.
2. Repeater tone
If accessing the repeater, requires a subaudible tone,
push [TONE] several times until " " appears.
Using the HM-133V
Plus or minus duplex selection and the repeater tone
setting can easily be made using the HM-133V.
Push [ –] for minus duplex; [
DUP
duplex selection, then push [FUNC]
[ –] to turn ON the repeater tone.
DUP
Push
Push
Push , then
vi
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO
S ET MONI LOW TONE M/CALL V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/MHz
+] for plus
DUP
, and then
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK PRIO SCAN
ANM DUP T-SCAN
S ET MONI LOW TONE M/CALL V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN PRIO SCAN
S ET MONI LOW TONE M/CALL V/MHz
SCAN
