Genie Intelligent Wall Console Manual

Genie Intelligent Wall Console Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
For Answers and Assistance:
1.800.354.3643
or visit www.geniecompany.com
SAVE THIS MANUAL FOR FUTURE REFERENCE.
INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER.
Genie, Genie logo, Intellicode & Safe-T-Beam are registered trademarks
of GMI Holdings, Inc., dba The Genie Company.
© The Genie Company 2011 PN# 37380501691, 6/2012

Advertisement

loading

Related Manuals for Genie Intelligent Wall Console

Summary of Contents for Genie Intelligent Wall Console

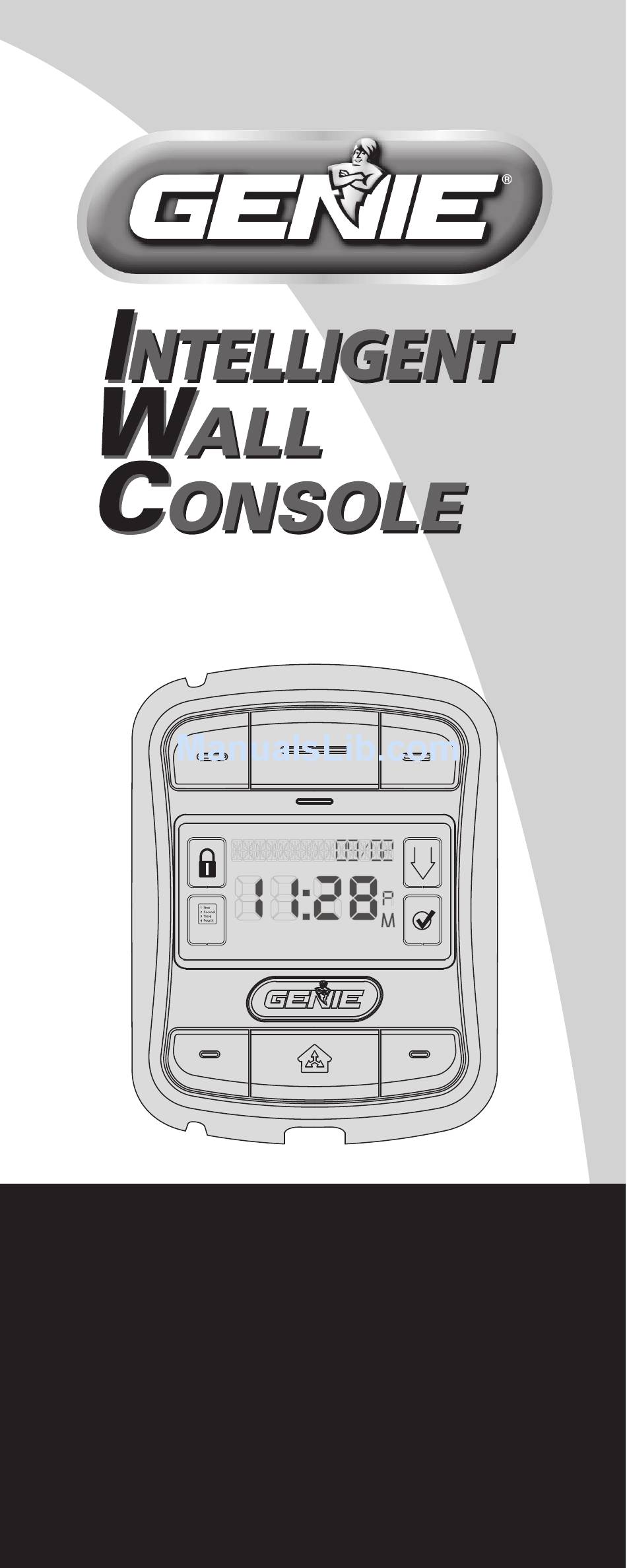

  • Page 1 SAVE THIS MANUAL FOR FUTURE REFERENCE. INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER. Genie, Genie logo, Intellicode & Safe-T-Beam are registered trademarks of GMI Holdings, Inc., dba The Genie Company. © The Genie Company 2011 PN# 37380501691, 6/2012...
  • Page 2 10 most recent operations of the opener. • Safe-T-Beam® system is continuously monitored— if their beam is obstructed, the Intelligent Wall Console (IWC) will display the message—“CHECK BEAMS.” • Includes the SureLock™ security control— When activated, this prevents any remote or keypad operation of the opener.
  • Page 3 Each opener that you wish to operate must be equipped with a Network Adapter in order to receive signals from the Intelligent Wall Console. In order to use the Intelligent Wall Console and Network Adapter equipment—your opener’s powerhead must wear this type of label—...
  • Page 4 Straighten the antenna wire if needed so that it is THE INTELLIGENT WALL CONSOLE The Intelligent Wall Console receives its power through an opener powerhead (powered from only one opener for a group of up to three).

  • Page 5: Mounting Bracket

    Route the wire from the chosen opener powerhead (only one is required to be physically wired to the Console, for a group of up to 3 openers*) to the desired mounting location for the Console, being sure to keep it clear of any moving parts or equipment.
  • Page 6 C Attach the mounting bracket to the garage wall. WALL D Attach wires to terminals on the back of the Console: E Attach the Console to the mounting bracket by sliding it down over the upper edge of the bracket and swinging it against the bracket until the latch engages.
  • Page 7 FAMILIARIZATION WIRE CHANNEL DISPLAY WINDOW POWER DATE TIME WIRE CHANNEL OPENER CONTROL BUTTONS SURELOCK™ ICON/ SCROLL INDICATOR BUTTON MENU SELECT ICON BUTTON WORK LIGHT CONTROL BUTTONS* * The Work Light Control buttons can be used to operate the opener’s Work Light, independently of operating the door opener.
  • Page 8 LEARNING TO THE OPENER(S) “NO NETWORK” will appear on the display if the unit is not correctly paired or wired with the Network Adapter. PRESS & RELEASE the button on the end of the Network Adapter. The GREEN LED will stay on while the BLUE LED ashes on and o .
  • Page 9 PROGRAMMING THE IWC Main Display & Menu The main display will appear like this: MENU ICON To begin settings, press the MENU ICON. Next display is the Console Setup Menu: SCROLL SCROLL BUTTON BUTTON BACK SELECT BUTTON BUTTON Pressing either SCROLL button will cycle through the following categories: Scroll back to “SETTINGS”...

  • Page 10: Setting The Language

    SETTING THE LANGUAGE Pressing the SELECT button to choose “LANGUAGE” will present the following choices: ENGLISH, FRANCAIS or ESPANOL. SCROLL to the desired language & press SELECT. The display will ash “LANGUAGE SET” and return to the “SETTINGS” menu. SETTING THE FORMAT OF THE DATE Pressing the SELECT button to choose “DATE FORMAT”...
  • Page 11 SETTING THE TIME OF DAY Pressing the SELECT button to choose “SET TIME” will present the following display: HOURS ashing. SCROLL to desired HOUR & press SELECT. MINUTES will begin ashing. SCROLL to desired MINUTES & press SELECT . Setting AM/PM corresponds with setting of the hour. The display will ash “TIME SET”...
  • Page 12 OPENER SETTINGS Pressing the SELECT button will present the following sub-menus: Pressing either SCROLL button will cycle through the following choices: CHOOSING THE OPENER TO BE PROGRAMMED Opener 1, 2 or 3. SCROLL to the desired opener. & press SELECT. This determines the opener that is a ected by the rest of the “OPENER SETTINGS.

  • Page 13: Display Speed

    Once you have selected OFF or ON time, the following display appears (hours blinking). Press SCROLL to cycle through the hours then press SELECT to set the desired hour of the day.The minutes will begin blinking. SCROLL to the desired number and press SELECT.
  • Page 14 DISPLAY FORCE Pressing the SELECT button to choose “GET FORCE” will present the choices: Pressing either SCROLL button will cycle between the following choices: Pressing SELECT to choose will display the current force level. Adjusting the force is covered in your owner’s manual. REMOVING OPENER FROM IWC Pressing the SELECT button to choose “REMOVE OPENER”...
  • Page 15 DIAGNOSTICS Pressing the SELECT button will present the following group of sub-menus: Using the SCROLL button to reach the desired function and press SELECT. CYCLE COUNT “MOTOR TEMP ” “CYCLE COUNT, ” “MSG HISTORY” and displays of information and have no user functionality. Selecting CYCLE COUNT presents the following: OPENER 1, 2 or 3.
  • Page 16 (c) Connect the opener into an outlet on a circuit different from that which the receiver is connected, and (d) Consult your local dealer. Any modifications or changes to this equipment which are not expressedly approved by The Genie® Company could void the user’s authority to operate the equipment.
