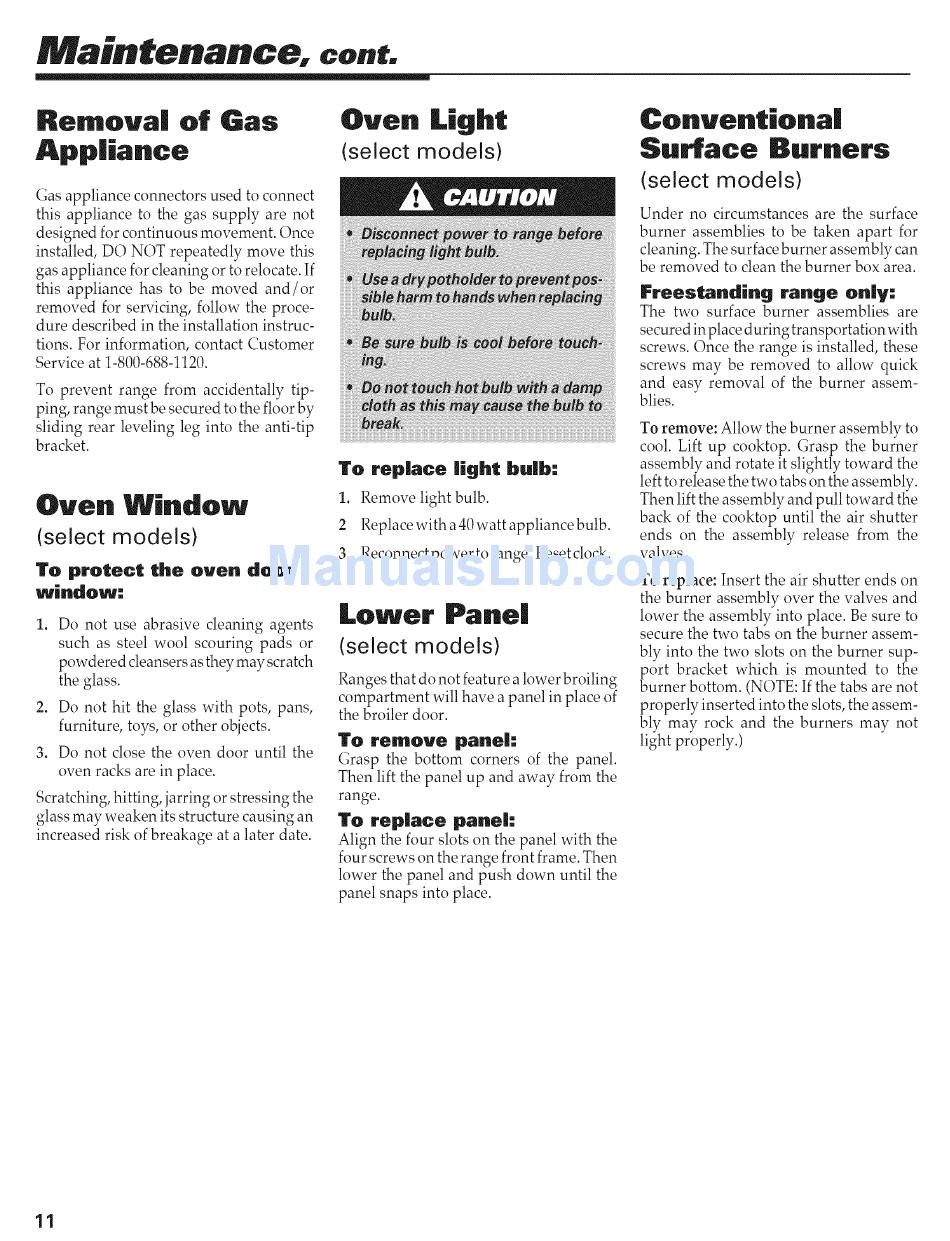

/la tenance, co.t.
Remora| of Gas
App|ia.ce
Gas appliance connectors used to connect
this appliance to the gas supply are not
designed for continuous movement. Once
installed, DO NOT repeatedly move this
gas appliance for cleaning or to relocate. If
this appliance has to be moved and/or
removed for servicing, follow the proce-
dure described in the installation instruc-
tions. For information, contact Customer
Service at 1-800-688-1120.
To prevent range from accidentally tip-
ping, range must be secured to the floor by
sliding rear leveling leg into the anti-tip
bracket.
Ore. Wi.dow
(select models)
To protect the oven door
_indo_:
°
Do not use abrasive cleaning agents
such as steel wool scouring pads or
powdered cleansers as they may scratch
the glass.
2. Do not hit the glass with pots, pans,
furniture, toys, or other objects.
3. Do not close the oven door until the
oven racks are in place.
Scratching, hitting, jarring or stressing the
glass may weaken its structure causing an
increased risk of breakage at a later date.
Ore. Light
(select models)
To replace light bulb:
1. Remove light bulb.
2 Replace with a 40 watt appliance bulb.
3. Reconnectpowertorange. Resetclock.
Lower Pane|
(select models)
Ranges that do not feature a lower broiling
compartment will have a panel in place of
the broiler door.
To rel'lrmove panel:
Grasp the bottom corners of the panel.
Then lift the panel up and away from the
range.
To replace panel:
Align the four slots on the panel with the
four screws on the range front frame. Then
lower the panel and push down until the
panel snaps into place.
Conventiona|
Surface Burners
(select models)
Under no circumstances are the surface
burner assemblies to be taken apart for
cleaning. The surface burner assembly can
be removed to clean the burner box area.
Freestanding range only:
The two surface burner assemblies are
secured in place during transportation with
screws. Once the range is installed, these
screws may be removed to allow quick
and easy removal of the burner assem-
blies.
To remove: Allow the burner assembly to
cool. Lift up cooktop. Grasp the burner
assembly and rotate it slightly toward the
left to release the two tabs on the assembly.
Then lift the assembly and pull toward the
back of the cooktop until the air shutter
ends on the assembly release from the
valves.
To replace: Insert the air shutter ends on
the burner assembly over the valves and
lower the assembly into place. Be sure to
secure the two tabs on the burner assem-
bly into the two slots on the burner sup-
port bracket which is mounted to the
burner bottom. (NOTE: If the tabs are not
properly inserted into the slots, the assem-
bly may rock and the burners may not
light properly.)
11
