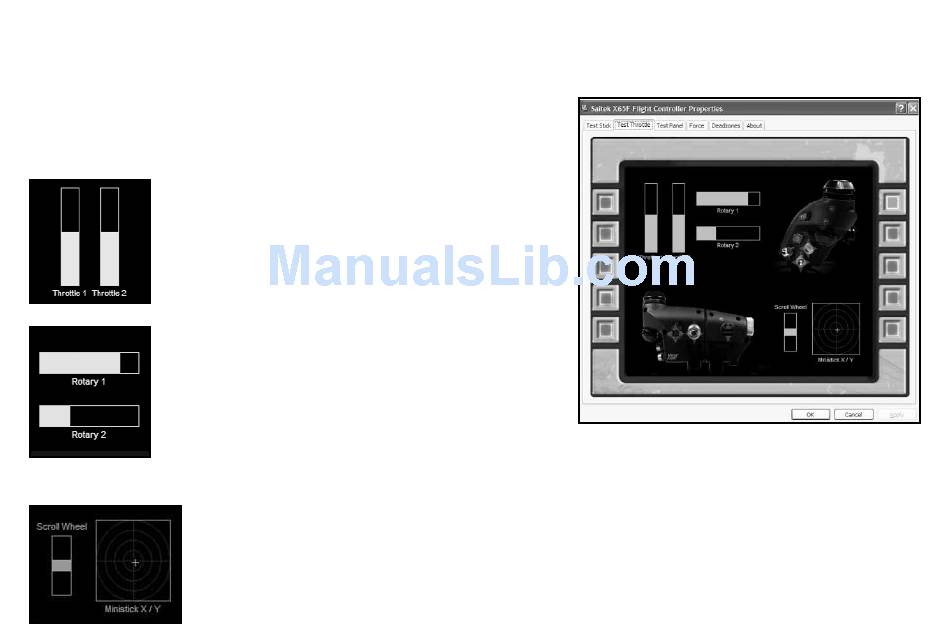

2. Test Throttle
The test throttle tab allows you test all the functions and features of your X65F throttle.
Buttons / Hats
Press any button or use any HAT on your X65F Throttle and the corresponding button or
HAT direction will light up on the page; this will indicate that the buttons and HATs are
working correctly.
Axis
The X65F throttle has 4 axes, the Left Throttle, Right Throttle,
Rotary 1 and Rotary 2.
To test the left and right throttle, either move the twin throttles
together or move them independently. When moving the
throttles the 2 green bars in the top right corner will fill and un-
fill depending on the throttles' position; with the throttles full
forward the bars will be full and with the throttles full back the
bars will be empty; this will indicate that the throttles are
working correctly.
To test the rotaries, move one or both rotaries on the throttle
unit; you will see the green rotary bars fill and un-fill on the test
page; this indicates your rotaries are working correctly.
Mouse
To test the mouse feature, move the mouse nipple on the throttle unit; the green cross hairs in the bottom right corner
should move around the mouse test area; this shows your mouse feature is working correctly.
Scroll Wheel
To test the scroll wheel, move the scroll wheel up and down on your throttle unit; in the scroll wheel test area you will see
the green bar moving up and down, depending on which way you are moving the wheel: this shows the scroll wheel is
working correctly.
