Instruction Manual
Ro o f M o u n t C o l o r M o n i t o r

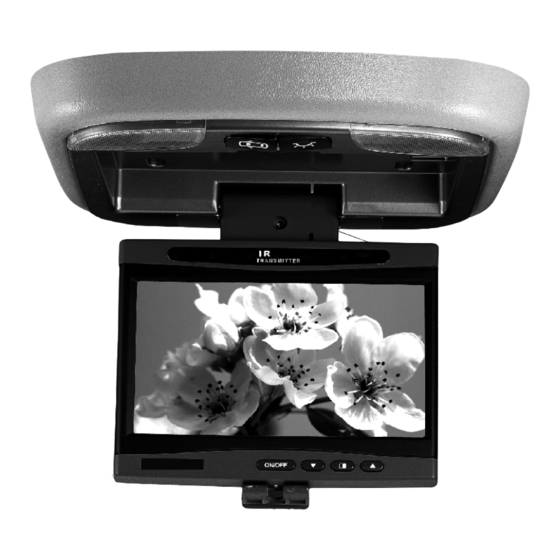

7-inch Wide Screen Roof Mount Color Monitor
7-inch Wide Screen Roof Mount Color Monitor
With IR Audio Transmitter
With IR Audio Transmitter
Before operating the unit, please read these instructions carefully
Before operating the unit, please read these instructions carefully
OT01003512-20011128
Advertisement
Table of Contents
Related Manuals for Rosen Roof Mount Color Monitor
Summary of Contents for Rosen Roof Mount Color Monitor
- Page 1 Ro o f M o u n t C o l o r M o n i t o r 7-inch Wide Screen Roof Mount Color Monitor 7-inch Wide Screen Roof Mount Color Monitor With IR Audio Transmitter With IR Audio Transmitter...
-
Page 2: Table Of Contents
General Information TABLE OF CONTENTS General Information elcome ................Precautions ................ Important Notes ..............2 Installation Guide Precautions ................3 Electrical Connections ............4 Signal Connections ............4 ypical Wiring Diagram ..........5 Main Unit Function K ............6 Remote Control Unit Frequently Used Buttons ........... - Page 3 General Information Courtesy Light ON / OFF .......... 10 Accessories Supplied ..........11 Technical Specifications ..........12 System Configuration ............13...
-
Page 4: Welcome
WELCOME Thank you for the purchase of this Roof Mount Color Monitor. Before operating the unit, please read this manual thoroughly and retain it for future reference. PRECAUTIONS To prevent short-circuiting of the electrical system and cause serious damage to the unit or the vehicle, you are advised to follow the instructions carefully. -
Page 5: Important Notes
* When operating the display unit, do avoid touching or pressing the LCD glass panel. Excessive force may cause irreparable damage to the LCD screen. * Ensure no metal or foreign materials are dropped in between the display screen and enclosure. Obstacles may impeach smooth running of the tray and may cause electrical shorts. -
Page 6: Installation Guide
INSTALLATION GUIDE Precautions: 1. This unit should be install by qualified technician or service personnel. 2. This product is designed to operate with a 12V DC, negative ground battery system. 3. Disconnect the ground wire from the battery terminal before connecting this unit to the electrical system. -
Page 7: Electrical Connections
ELECTRICAL CONNECTION: AD-6865 Color Code Function Black Ground A CC Yellow +12V COURTESY LIGHTS Color Code Function Black Ground Grey Door - Light Sensor Yellow +12V SIGNAL CONNECTION: AUDIO INPUT Color Code Function Red (RCA) Audio - Right White (RCA) Audio - Left (Mono) VIDEO INPUT (AD-6865) Color Code... -
Page 8: T Ypical Wiring Diagram
TYPICAL WIRING DIAGRAMS Audio in PUSH 15 PIN TO MONITOR AD-6865 RED-ACC YELLOW-BATTERY ADAPTORS BLUE-REMOTE OUT INPUT DC-13.2V BLACK-GND FUSE 2A SERIAL NO. 5 5 6 6 6 6 5 7 VIDEO IN 1 IN 2 IN 2 IN 1 I R H eadphone ( O pt i onal ) AD-6865... -
Page 9: Main Unit Function Keys
MAIN UNIT FUNCTION KEYS 1 ¡B 5 ¡B Door Light ON / OFF Button( LCD Display 2 ¡BO N / O FF 6¡B Button (MODE) Courtesy Light 3 ¡B 7¡B UP/DOWN Button ( Remote Sensor 4 ¡B 8¡B MENU Button ( OPEN Button... -
Page 10: Remote Control Unit
REMOTE CONTROL UNIT Frequently used buttons: CH/DISC/SET MODE POWER MENU MEMORY MUTE BAND SCAN SAVE DISP RC-1029A MOBILE AV REMOTE CONTROL 1. CH / DISC / SET ( ) buttons Use these buttons to search for TV channels or to select disc title or to select the desired settings under MENU screen. -
Page 11: Replacement Of Battery
Replacement of battery R em ot e C ont r ol l er Bat t er y Bat t er y H ol der 1. Use a small coin to ply open the battery holder from compartment. 2. Remove old battery and put in a new one with positive sign " + " facing upward. 3. -
Page 12: 2. Keeping The Display Monitor
2. KEEPING THE DISPLAY MONITOR To keep the LCD display back into the enclosure, pull the monitor back to the tray. Monitor lock with a click. 3. Display Format Press ( Menu ) to select Format Press button to select desire screen size. The screen size switches in the following sequence each time the button is activated: ZOOM NORMAL... -
Page 13: Mute Function (Remote Control)
RESET: Reset COLOR, CONTRAST, BRIGHTNESS and TINT to factory preset level. Once the correct function is selected, press the cursor key i.e. ( or ( to the desired setting. If no key is depressed, this function mode will turn OFF in about 5 seconds. 6. -
Page 14: Accessories Supplied
Accessories supplied Item Item Description Quantity Metal plate Adaptor, AD6865 Fastener screws, (Pan head 5 x 6) Fastener screws, (B5 x 8) Remote controller (RC-1029A) Operating manual Power supply cable assembly, 4P, 600mm #18 Interconnecting cable assembly, doom light Source Cable MD 9 pin-15pin... -
Page 15: Technical Specifications
TECHNICAL SPECIFICATIONS Type Roof Mount Color Display Monitor Display System 7.0-inch (18cm) Active Matrix Color TFT LCD NTSC / PAL Selectable Display Format 112,320 pixels Aspect Ratio 16 : 9 Resolution 336,960 dots / 1,440 (W) x 234 (H) dots Front Panel Anti-glare glass Active Area... -
Page 16: System Configuration
SYSEM CONFIGURATION OPTION 1 AD-6865 Color Monitor/One Din DVD Player Digital Sound Processor Unit 15 PIN TO MONITOR AD-6865 RED-ACC YELLOW-BATTERY ADAPTORS BLUE-REMOTE OUT INPUT DC-13.2V BLACK-GND FUSE 2A Video Out SERIAL NO. 5 5 6 6 6 6 5 7 12V Supply VIDEO IN 1...
