Rosen Car Show CS150LCD Installation Manual

15.4” wide-screen overhead lcd monitor
Hide thumbs

Advertisement

Quick Links

Download this manual
15.4" Wide-screen Overhead LCD Monitor
Installation Guide and Owner's Manual
RES PN 9100167-90 Rev A

Advertisement

loading

Related Manuals for Rosen Car Show CS150LCD

Summary of Contents for Rosen Car Show CS150LCD

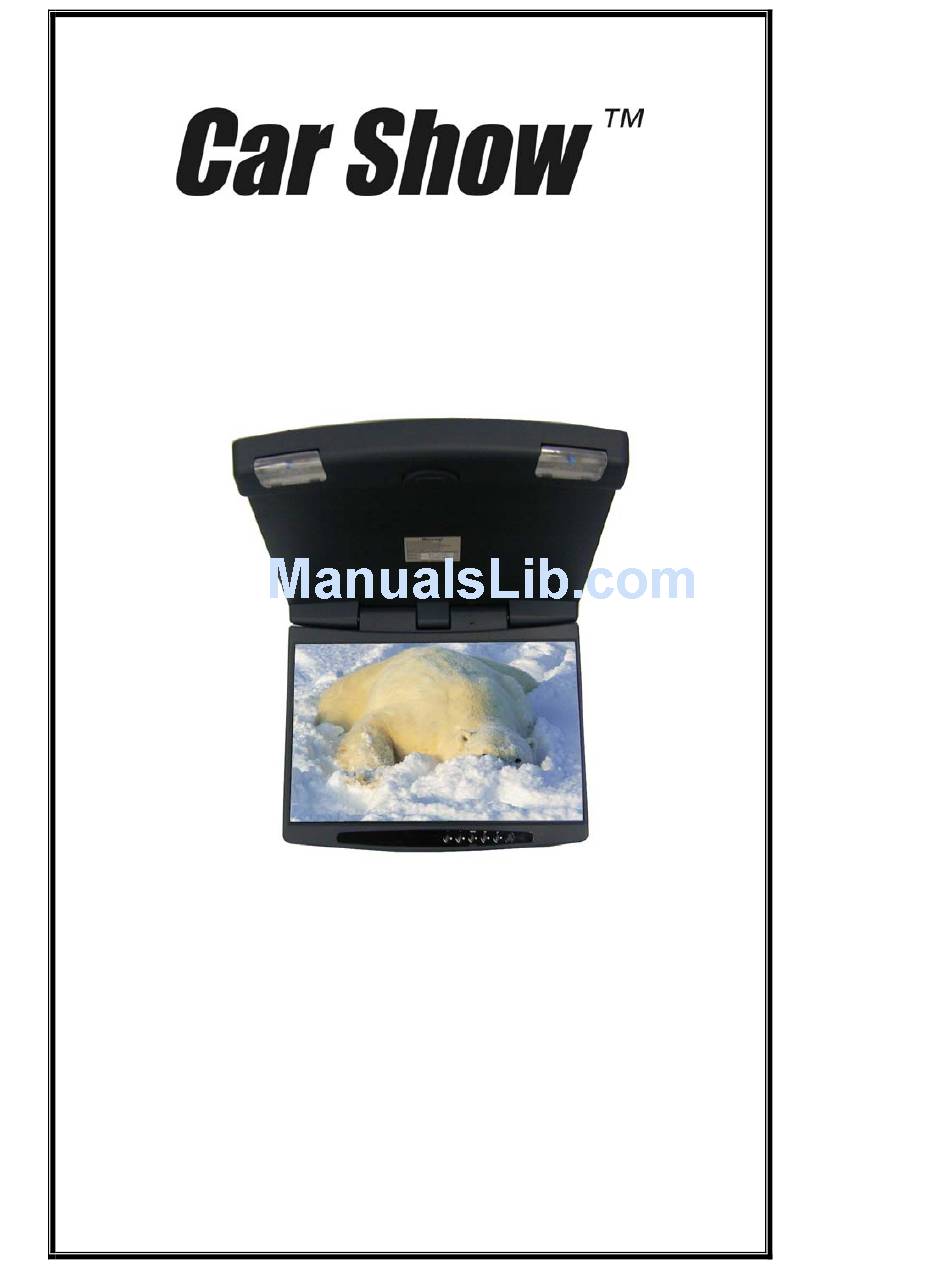

  • Page 1 15.4” Wide-screen Overhead LCD Monitor Installation Guide and Owner’s Manual RES PN 9100167-90 Rev A...

  • Page 2: Table Of Contents

    Table of Contents Section Specification Installation Operation On-Screen Displays (OSDs) Description of wiring Precautions Screws included Title Page...

  • Page 3: Specification

    1. Specifications, 15.4 Inch Monitor Resolution 1280(H) × 800(V) Display area 331.2(W) × 207.0(H) Size 15.4" TFT Composite Video(RCA)(F) ×2 Video input (NTSC,PAL,SECAM) Stereo Sound Input (RCA)(F) ×2 Audio input Stereo Sound output (RCA)(F) ×1 Audio output IR Transmitter 2.3MHz&2.8MHz Composite Video(RCA)(F) ×1 Video output (NTSC,PAL,SECAM)

  • Page 4: Installation

    Step 1: Mount the bracket above the headliner to the roof beam. IMPORTANT! The bracket is directional! Please use screws in the holes indicated to mount the bracket to the vehicle. IMPORTANT! NEVER USE SCREWS THAT COULD DAMAGE THE VEHICLE ROOF IN ANY WAY! Screws Screws 2.
  • Page 5 Step 2: Make sure that the headliner allows the monitor mounting screws to travel from the monitor to the bracket. Screw hole 4 mm Front Rear Screw hole 4 mm...
  • Page 6 Step 2 continued: Car roof Mounting bracket Direction of mounting screws...
  • Page 7 Step 3: Mount the monitor to the bracket using the supplied screws. IMPORTANT! NEVER use any screws except those provided with the unit! NEVER use any screw which would damage the vehicle roof! See step 1 Completed...

  • Page 8: Operation

    VIDEO control keys： 1. Power：When you push this button, it will turn ON or OFF the LCD power. 2. V1：Video input 1. When you push this button, it will show the picture from the source unit connected to video input 1. 3.
  • Page 9 VIDEO remote control function： POWER：When you push this button, the LCD will turn ON or OFF. V1/V2：Pressing this key, switches between Video Inputs 1 and 2. MENU：When you press this key, a menu will appear. Use the + and – keys to highlight menu selections.

  • Page 10: On-Screen Displays (Osds)

    DOWN：When you push this button, you will move down in a menu, or decrease the value of the setting you have selected. 4. On-Screen Displays (OSDs) OSD MENU LIST BRIGHTNESS : Adjust the Brightness of Screen. Adjustment Area：0 ~ 15 CONTRAST : Adjust the Contrast of Screen Adjustment Area: 0 ~ 31...
  • Page 11 MUTE ON : Turn Mute function on and off. DISPLAY MODE: Adjust the display mode to 16:9 (widescreen) , 4:3 (standard television), or 16:9 FULL (pan-and-scan). DEFAULT : Return to the original Setting of LCD. SAVE AND EXIT : Save your Personal Setting and exit to Menu Mode.

  • Page 12: Description Of Wiring

    5. Description of harnesses and wiring Accessories Optional infrared wireless headphones (not included) Description Power input harness: Yellow: ACC 12V(+) switched IMPORTANT! DO NOT CONNECT YELLOW TO CONSTANT 12V(+)! Black: Chassis GND A/V Output harness: Yellow：video output Red：audio output(R) White：audio output(L) Note: This harness is optional and not used in some installations.

  • Page 13: Precautions

    7. Precautions 1. Do not apply pressure to the LCD screen. 2. Do not get LCD wet to clean it! If you need to clean it, please use a clean damp cloth. 3. Please do not add any parts or use any accessory which is not provided from the manufacturer.

  • Page 14: Screws Included

    8. Screws included × 1:M4 0.7 L= 5 mm screw ψ L= 10 mm screw × ×...
