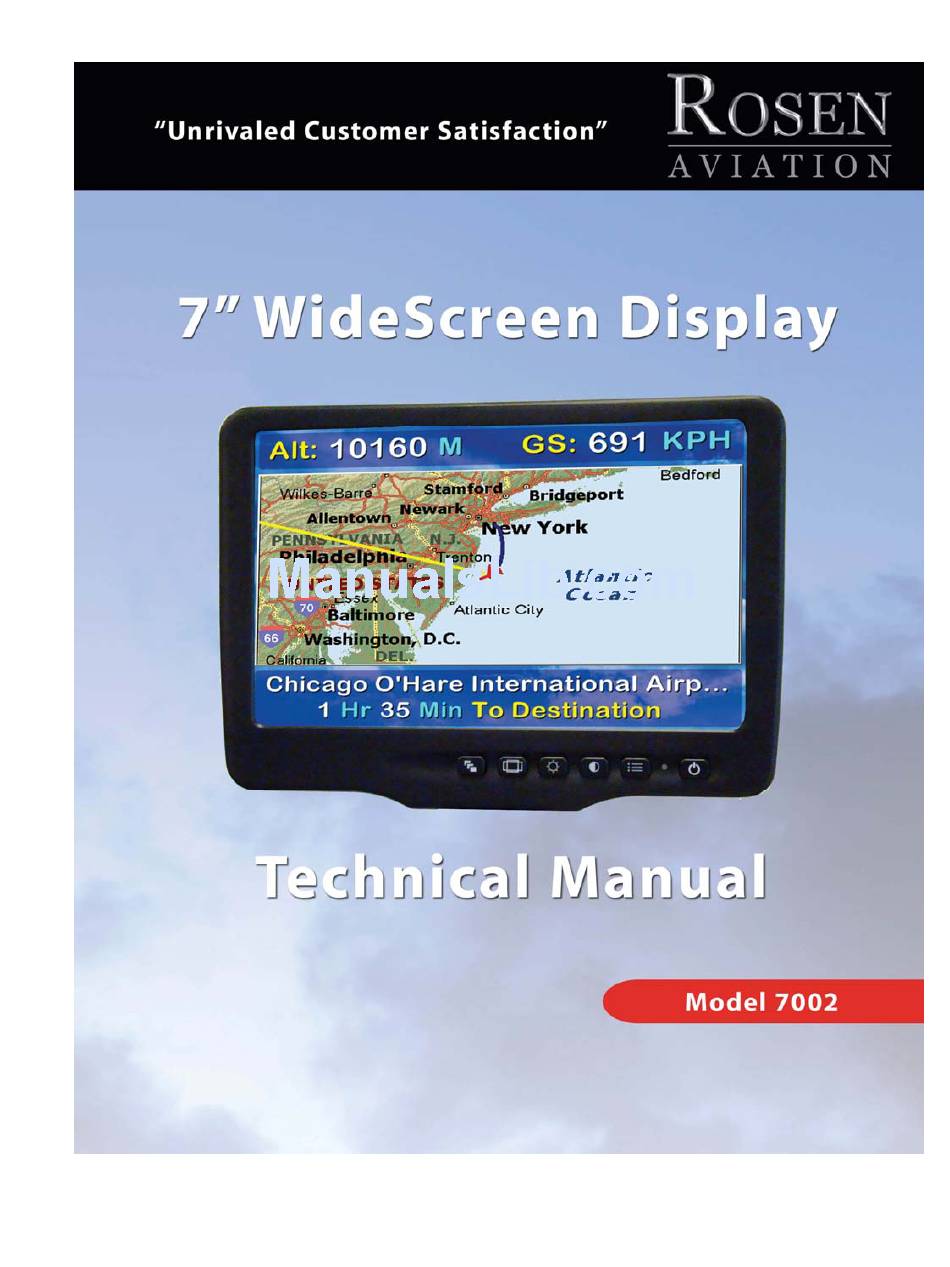

- Page 1 ELECTRONIC REVISION CONTROLLED Document Number 100923 Rev D...
- Page 2 Rosen Aviation Technical Manual, 7002 Series WideScreen © 2008 by Rosen Aviation, LLC All Rights Reserved The information contained herein is proprietary to Rosen Aviation, LLC. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written authorization from Rosen Aviation, LLC, except as allowed under copyright laws.
-
Page 3: Table Of Contents
Rosen Aviation Contents 1. INTRODUCTION ......................... 4 1.1. Unpacking ........................4 2. DISPLAY CONNECTIONS ....................4 2.1. Connection Diagram ..................... 5 3. INSTALLATION GUIDELINES ................... 5 3.1. Installing/Removing SlimLine Arm Assemblies ............. 6 4. FRONT PANEL BUTTONS ....................6 ... -
Page 4: Introduction
Rosen Aviation 1. INTRODUCTION This manual describes how to install the Rosen 7” WideScreen 7002 series display onto your aircraft. It contains everything you need to know to wire the display and confirm that it is functioning correctly. Note: Only trained and qualified personnel should perform installation and service. -
Page 5: Connection Diagram
Rosen Aviation 2.1. Connection Diagram The typical installation of the 7” WideScreen monitor is one or more monitors on an arm mount, sidewall, or bulkhead. The following connection diagram illustrates how to configure the displays to create a complete cabin entertainment system or integrate a display into an existing system. Figure 1 Typical arm mount installation These displays are typically connected to a video distribution unit, which provides a single composite video signal to each monitor. -
Page 6: Installing/Removing Slimline Arm Assemblies
To release a SlimLine locking arm so that it rotates, press in the arm button only half way. 4. FRONT PANEL BUTTONS The 7002 series display has buttons on the front panel as its only control method. Power On/Off Scale... -
Page 7: Navigational Soft Keys
Rosen Aviation 4.1. Navigational Soft Keys The icons on the display buttons indicate basic functions. In addition to the basic functions, the buttons act as soft keys that perform secondary navigational functions to adjust picture quality in dialog boxes and the on-screen menus. When you press a button and see a bar of blue soft keys, as shown below, press the corresponding display button. - Page 8 Rosen Aviation Normal Mode Normal mode displays a standard 4:3 aspect video without alteration. A standard 4:3 source image will appear with vertical black bars on the left and right side of the screen, as shown in Figure 8. If the image source is letterboxed, then there will be horizontal bars at the top and bottom of the image as well.
- Page 9 Rosen Aviation Wide Mode Wide mode displays a standard 4:3 source video in 16:9 aspect ratio by expanding the image horizontally. The expansion maintains normal aspect in the center region while stretching the rest of the image to fill the screen, as shown in Figure 10. Widescreen 16:9 will be displayed full screen with minor central compression, as shown in Figure 11.
-
Page 10: Backlight Brightness
Rosen Aviation Cinema Mode Cinema Mode expands the source video in the vertical and horizontal dimensions to fill the display screen, as shown in Figure 13. Letterbox format DVD disks will have little or no bars showing in this mode, while 4:3 & 16:9 aspect video sources will be expanded beyond the boundaries of the screen, appearing cropped. -
Page 11: On-Screen Menus
Rosen Aviation 4.2. On-Screen Menus To open the Main Menu and access the submenu settings, press the Menu button, as shown below. Press the ▼ and ▲ soft keys to select (highlight) an option, and press the OK soft key to select it. - Page 12 Rosen Aviation Brightness Press the OK soft key to open the Brightness screen, as shown below, and adjust the picture brightness. Press the ◄ or the ► soft keys to change the image on the LCD accordingly. Press the Set soft key to set the brightness and exit the dialog box. Figure 18 Picture brightness settings and soft keys Saturation To adjust the color saturation, press the Menu button and then select Image...
-
Page 13: Advanced Menu
Rosen Aviation Sharpness To adjust the picture sharpness, press the Menu button and then select Image Adjustments Sharpness using the soft keys. Press the ◄ or the ►soft keys to adjust the focus. Press the Set soft key to set the sharpness and exit the dialog box. Figure 21 Sharpness settings and soft keys 4.2.2. - Page 14 Rosen Aviation Restore Factory Defaults Restores the default screen settings. There are two factory color modes: Vivid (default) and Natural. Try both modes to determine which one you like best before adjusting the other picture quality settings. From the Advanced submenu, press the OK soft key to open the Restore Factory Defaults screen, as shown below.
- Page 15 Rosen Aviation Power Up Mode Test different options to turn on the display. From the Advanced submenu, press the ▼ soft key to select Power Up Mode and then OK, as shown below. Press either ◄ or ► soft key to select the mode. Press the Set soft key to set the power-up time and exit the dialog box.
- Page 16 Rosen Aviation Select Switch Repeat Delay Change the time between sources on the display. From the Advanced submenu, press the ▼soft key to choose Select Switch Repeat Delay and then OK, as shown below. Press the ◄ soft key several times to shorten the timing between repeats. Press the ► soft key several times to lengthen the timing.
-
Page 17: Maintenance: Tension Adjustments
Rosen Aviation 5. MAINTENANCE: TENSION ADJUSTMENTS Arm mounting diagrams and the tools required to adjust the tension. 5/64” hex key 1/8” hex key 9/64” or 1/8” hex key 9/64” or 1/8” hex key 7/64” or 5/32” hex key 3/16” hex key Figure 28 Arm assembly maintenance adjustments Document Number: 100923 Revision:... -
Page 18: Technical References And Support
Rosen Aviation 6. TECHNICAL REFERENCES AND SUPPORT The Outline & Installation drawing is also available at www.rosenaviation.com. home page, select Support Drawings and Pinouts, and search for the From the Rosen Aviation drawing by model number or browsing by product category. 6.1. -
Page 19: Do-160E Qualifications
See Restore Factory Defaults on page 14 for more information. 6.2. DO-160E Qualifications Table 3 DO 160E Test Criteria to which we test the 7002 series displays Description DO-160E Section DO-160E Category... -
Page 20: Technical Support
Rosen Aviation 6.3. Technical Support If you need assistance with an installation, please contact Rosen Aviation at 541.342.3802 or 888.668.4955. 6.4. Specifications Table 4 7002 display specifications Size 7” diagonal, 16 : 9 format Resolution 800 x 480 Viewing Angle (U/D/L/R) -
Page 21: Revision History
Rosen Aviation SECAM (Séquentiel couleur à mémoire. French for "sequential color with memory"), an analog color video system first used in France USB Universal serial bus. A high-speed differential signaling serial bus typically used to connect peripheral devices to a personal computer. Vp-p Volts peak-to-peak;...
