M O B I L E
C A R
E N T E R T A I N M E N T
8" ROOF MOUNT
16:9 MONITOR with INTEGRATED DVD
I N S T R U C T I O N S
Before operating the unit, please read these instructions carefully.
OT01007110-0305
S Y S T E M S
General Information

TABLE OF CONTENTS

1.4
5.1 Eject / Open the Display Monitor
5.2 K
6. DVD FUNCTIONS
...................................................................................................
...............................................................................................
.......................................................................................
......................................................................................
.....................................................................
..........................................................................
.................................................................
....................................................................................
.................................................................
...................................................................
......................................................................................
..............................................................................
.................................................................................
...................................................
eeping the Display Monitor
..........................................................
)
..........................................................
.................................................................
......................................................................
...............................................................
.......................................................................
..................................................................
............................................................
........................................................................
...................................................................................
.....................................................................
...................................................................
...............................................................................
10
10
10
10
10
10
11
11
.......................................
11
................................
12
12
12
......................................................
13
................................................
13
13
14
14
14
1
2
2
3
4
4
5
6
7
8
8
9
9

Advertisement

Table of Contents
loading

Related Manuals for Rosen 8" ROOF MOUNT

Summary of Contents for Rosen 8" ROOF MOUNT

  • Page 1: Table Of Contents

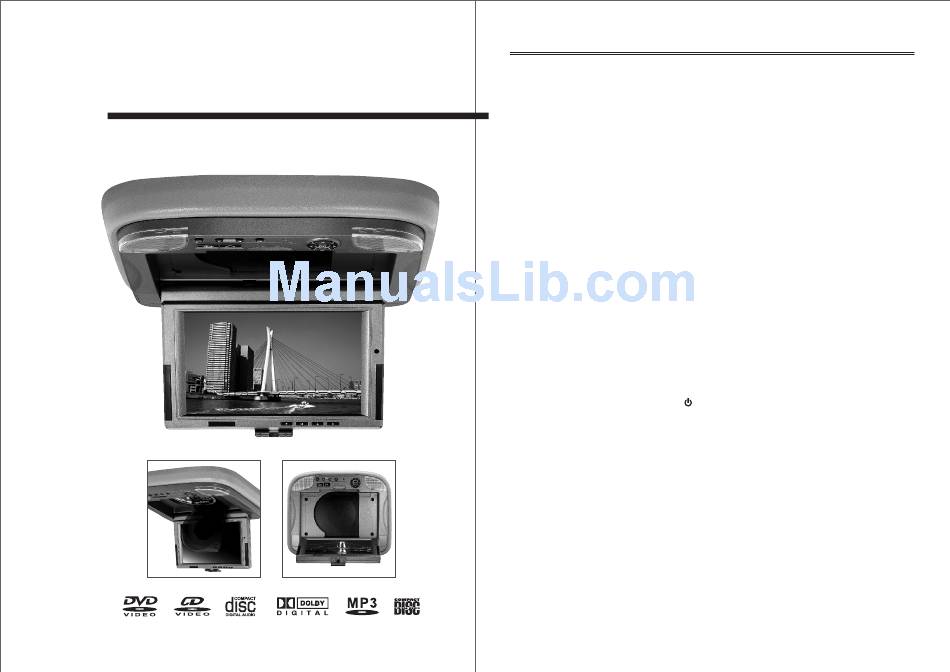

    M O B I L E C A R E N T E R T A I N M E N T S Y S T E M S General Information TABLE OF CONTENTS 8" ROOF MOUNT General Information 16:9 MONITOR with INTEGRATED DVD elcome ....................

  • Page 2: General Information

    General Information GENERAL INFORMATION WELCOME TABLE OF CONTENTS Thank you for your purchase of this Roof Mount Monitor with integrated DVD. Prior 6.7.5 DVD menu (DVD) ................. to operating this unit, please read this instruction manual and retain it for future 6.7.6 Title menu (DVD) ................

  • Page 3: Important Notes

    * Keep unit away from equipment with strong magnets such as large loudspeakers. 1. INSTALLATION GUIDE: * To prevent malfunction, do not play discs other than the ones listed below. 1.1 Precautions: Examples: DVD audio discs, DVD-ROMs, CD-ROMs, Photo CDs and DVDs with region numbers other than this player's region number.

  • Page 4: Electrical Connections

    1.2 Electrical Connection: 1.4 Typical Wiring Diagrams: AD-6871 Color Code Function Black Ground A CC Yellow +12V COURTESY LIGHTS Color Code Function Black Ground Grey Door - Light Sensor AD-6871 1.3 Signal Connection: AUDIO Color Code Function 1 (RCA) Audio - Right (Input) White 1 (RCA) Audio - Left (Input)

  • Page 5: Function Keys

    2. FUNCTION KEYS: 3. REMOTE CONTROL UNITS: 3.1 Frequently Used Buttons: POWER MONITOR MODE VIDEO SETUP DISPLAY MENU LEFT RIGHT TITLE ENTER PREV DOWN NEXT MENU PLAY/ F.REV PAUSE F.FWD STOP SUBTITLE AUDIO MUTE REPEAT 1/ALL GOTO ANGLE 1. POWER Button 13.

  • Page 6: Replacement Of Battery

    3.2 Replacement of battery: 4. LOADING AND UNLOADING DISC: You can use single side and dual layer DVD, VCD, CD-audio & CD-R compatible 12cm disc. Remote Controller 4.1 Loading Discs: Battery 1. Press " " to open the case 2. Load with the recorded side (the shiny side) facing up.With double-sided discs, load with the side you want to watch facing up.Ensure that disc is seated properly before pushing tray back into its locking position.

  • Page 7: Operating The Monitor

    6. BASIC FUNCTIONS: 5. OPERATING THE MONITOR: 6.1 DVD playback (DVD) 5.1 OPEN/CLOSE THE DISPLAY MONITOR (1)Select video source (DVD). (2)Load a disc into the unit. To open/close the display monitor, push & pull the "OPEN" button to the desired (3)DVD playback commences.

  • Page 8: Next Track Or Previous Track (Dvd/Mp3/Cd)

    Note: DVD playback Resume playback function is not available for Audio CDs. FR 2X FR 4X FR 6X FR 8X PLAY Press PLAY button, the speed will go back to standard. 6.6 Search function "GO TO" (DVD/MP3/CD) 6.3.2 Next track or previous track (DVD/MP3/CD) Search function enables you to locate a specific location by entering the Press ( ) during playback...

  • Page 9: Camera Angle (Dvd)

    For DVD Note: When REPEAT button is pressed, (1) The "SUBTITLE" works only for discs that have multiple subtitle. (2) In some cases, the subtitle will not changed immediately to the one selected. CHAPTER REPEATION = The current chapter will be repeated TITLE REPEAT = The current title will be repeated 6.7.5 DVD menu (DVD)

  • Page 10: Setup Menu (Dvd)

    (b-3) ANGLE MARK When the display key is pressed, the following OSD will be shown. TITLE XX/XX CHAPTER XXX/XXX HH : mm : SS (b-4) OSD LANG TITLE REMAIN ENGLISH HH : mm : SS CHINESE (b-5) CAPTIONS SINGLE ELAPSED HH : mm : SS SINGLE REMAIN (b-6) SCR SAVER...

  • Page 11: (F) Preferences Page

    (c-6) REAR DELAY (F) PREFERENCES PAGE (f-1) AUDIO — (1) ENGLISH (2) FRENCH (3) SPANISH (D) AUDIO SETUP (4) CHINESE (5) JAPANESE (d-1) AUDIO OUT (f-2) SUBTITLE — (1) ENGLISH ANALOG (2) FRENCH SPDIF/RAW (3) SPANISH SPDIF/PCM) (4) CHINESE (5) JAPANESE (d-2) OP MODE (6) OFF (e-3) DISC MENU—...

  • Page 12: Region Management Information

    7. REGION MANAGEMENT INFORMATION: 8. ACCESSORIES SUPPLIED: This DVD/CD player is designed and manufactured to respond to the Region Management Information that is recorded on a DVD disc. If the Region number Item Item Description Quantity described on the DVD disc does not correspond to the Region number of this player, Metal plate this player will not be able to play the DVD disc.

  • Page 13: Technicalspecifications

    9. TECHNICAL SPECIFICATIONS: 10. SPECIFICATIONS: GENERAL Type Roof Mount Color Display Monitor Display System 8-inch Active Matrix Color TFT LCD Power Supply : 14V DC Typical NTSC / PAL Auto Switch Current Consumption : 1.7 A Typical Display Format 336,960 pixels Remote control : Infrared remote Aspect Ratio...
