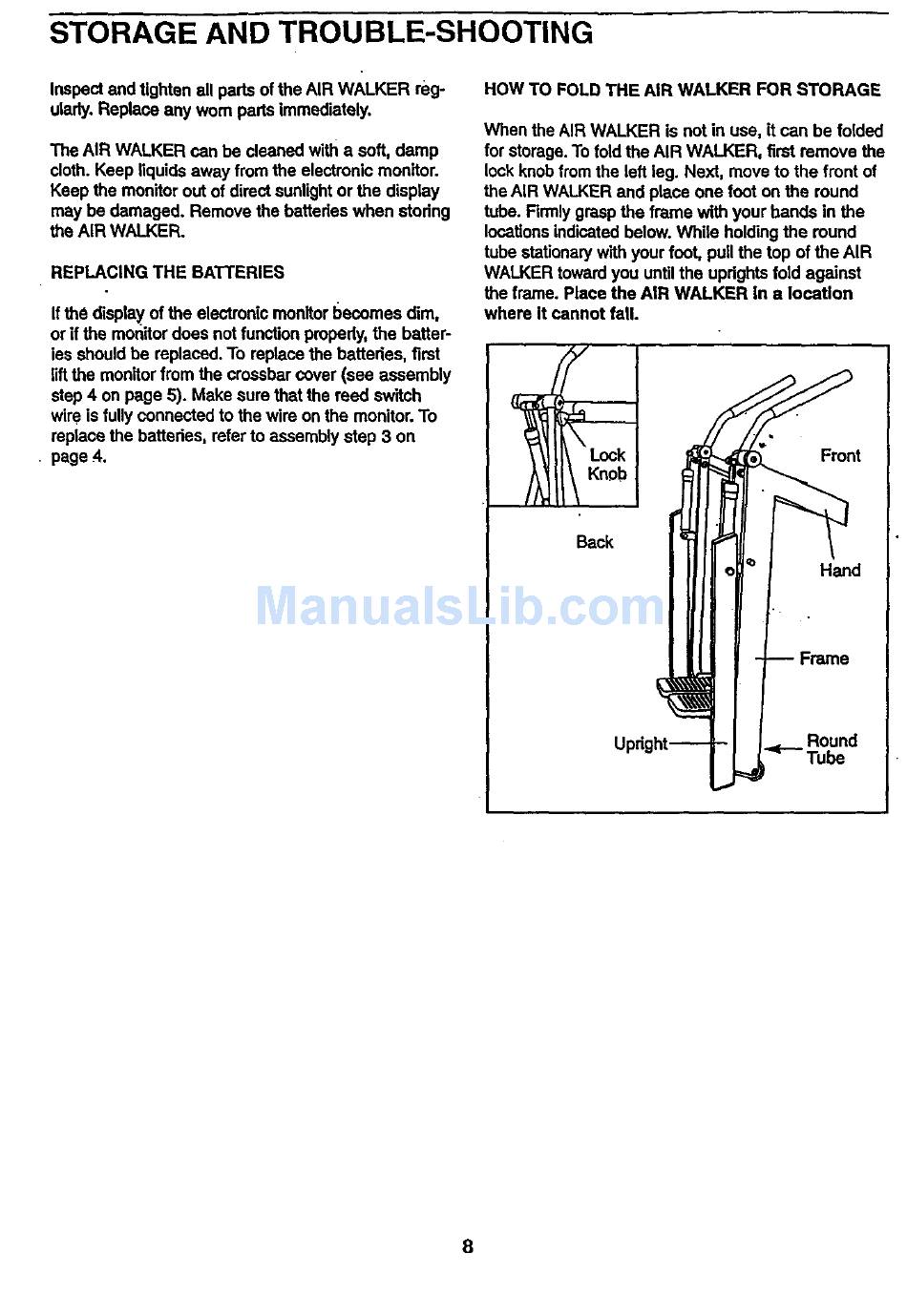

STORAGE AND TROUBLE-SHOOTING
Inspect and tighten all parts of the AIR WALKER reg-
ularly. Replace any worn pads immediately.
The AIR WALKER can be cleaned with a soft, damp
cloth. Keep liquids away from the electronic monitor.
Keep the monitor out of direct sunlight or the display
may be damaged. Remove the bsttedes when stodng
the AIR WALKER.
REPLACING THE BATTERIES
If the display,of the electronic monitor becomes dim,
or if the monitor does not function pmpedy, the batter-
ies should be replaced. To replace the battedes, first
lift the monitor from the crossbar cover (see assembly
step 4 on page 5). Make sure that the reed switch
wire is fully connected to the wire on the monitor. To
replace the batteries, refer to assembly step 3 on
page 4.
HOW TO FOLD THE AIR WALKER FOR STORAGE
When the AIR WALKER is not in use, it can be folded
for storage. To fold the AIR WALKER, first remove the
lock knob from the left leg. Next, move to the front of
the AIR WALKER and place one foot on the round
tube. Rrmly grasp the frame with your bands in the
locations indicated below. While holding the round
tube stationary with your foot, pull the top of the AIR
WALKER toward you until the updghts fold against
the frame. Place the AIR WALKER In a Iocetlon
where it cannot fall.
Y
LOCK
\
Knob
ir]
i
Back
Front
Hand
Fl'_31e
Round
8
