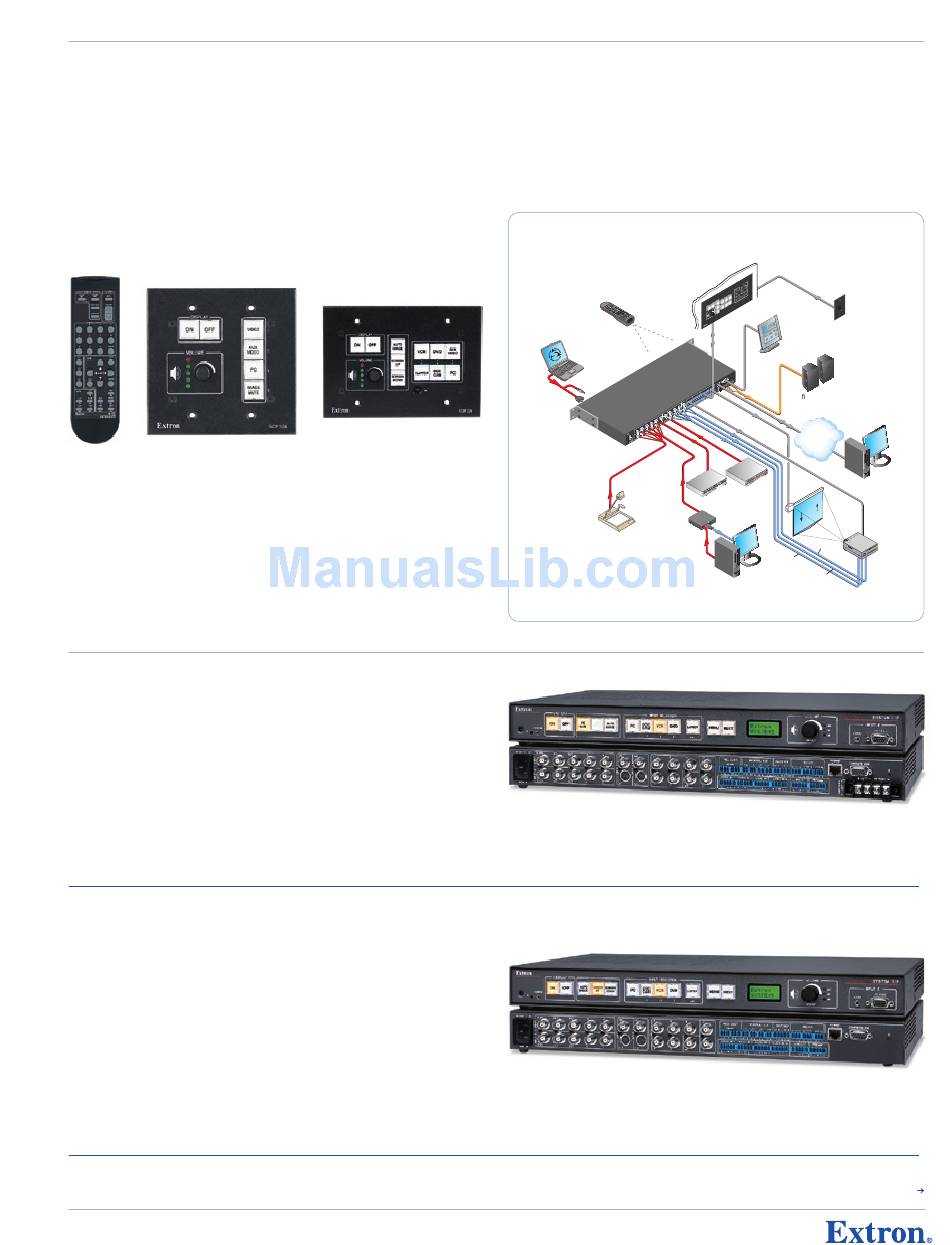

Extron electronics System 5 IP Series Specification Sheet page 2

System 5 IP Series
deScriPtion
(continued)
Global compatibility — All IP Link products use industry standard Ethernet communication
•
protocols, including ARP, DHCP, ICMP (ping), TCP/IP, Telnet, HTTP, and SMTP.
High performance architecture — Web pages are served many times faster, 6 Mbit/sec
•
transfer rate, than similar products.
Multi-user support — Multiple, simultaneous connections enable each IP Link device to
•
support many concurrent users and improve system throughput by sending information
in parallel.
Asset Management — The System 5 IP offers Web-based asset management
•
capabilities, specifically designed to work with products that include IP Link technology.
This includes proactive maintenance, event scheduling, remote technical support, and
theft alerts.
SCP 104
IR 402
Control Options
System switcher control is provided via the front panel backlit buttons, the optional IR 402
remote control, or optional SCP 104 and SCP 226 Secondary Control Panels. The front
panel backlit input buttons of the System 5 IP can be individually labeled to ensure precise
identification of video and audio input settings. In addition, the front panel includes buttons for
display functions such as power, mute, video modes, and room controls — such as lowering or
raising a display screen, or powering lights on or off. As a simplified and cost-effective option,
the System 5 IP is also offered without front panel controls, but still provides the front panel
15-pin HD input connector for RGBHV.
System 5 IP FPC SA
Switcher with Stereo Amplifier and Front Panel Controls
unique FeAtureS
Integrated stereo amplifier provides 40 watts, 2 x 20 watts rms, into 4 or
•
8 ohm speakers — Outputs amplified stereo audio on insulated screw terminals.
Text and icon button labels included for easy identification of button features
•
modeL
System 5 IP FPC SA
System 5 IP FPC
Switcher with Variable Preamp Audio Output and
Front Panel Controls
unique FeAtureS
Variable preamp audio output - no amplifier
•
Text and icon button labels included for easy identification of button features
•
modeL
System 5 IP FPC
europe europe dubai dubai
+31.33.453.4040 / +800.3987.6673 +31.33.453.4040 / +800.3987.6673 +971.4.2991800 +971.4.2991800
+31.33.453.4050 FAX +31.33.453.4050 FAX +971.4.2991880 FAX +971.4.2991880 FAX
SCP 226
VerSion deScriPtion
Switcher w/ Front Panel Control & Amp
VerSion deScriPtion
Switcher w/ Front Panel Control
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Asia Asia
+65.6383.4400 / +800.7339.8766 +65.6383.4400 / +800.7339.8766
+65.6383.4664 FAX +65.6383.4664 FAX
The optional IR 402 remote, SCP 104, and SCP 226 Secondary Control Panels both duplicate
the System 5 IP's front panel functions and enable users to remotely control the switching,
projector, and room functions of the switcher. The SCP 104 and SCP 226 AAP models include
an opening that will accommodate up to four single space AAP - Architectural Adapter Plates.
There are hundreds of AAPs to choose from, some of which offer pass-through connections, as
well as IR control options. Either control panel can be mounted in a wall, podium, or table, and
is available in gray, black, or white to blend in with the environment.
Extron
SCP 226 AAP
Secondary Control Panel
w/ IRCM DV+
Extron
IR 402
Remote Control
Laptop
G
R
VID
Y
VID V
V
H
Extron
H
B/C
G/Y C
C V
ID Y
R/V H
Y
VID
VID B/C
System 5 IP
G/Y
ID
R/V
V 0.2A
100 -240 50-6 0Hz
FPC SA
System Switcher
Extron
RGB 109xi
Document
Camera
Interface
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
china china
+86.21.3760.1568 / +400.883.1568 +86.21.3760.1568 / +400.883.1568
+86.21.3760.1566 FAX +86.21.3760.1566 FAX
S y S t e m S w I t c h e r S
Tx
RO L
CO NT
& VC R
D
DV DVD ER
VCR TUN
U
MEN STO P
ER SE
E ENT PAU D
TITL T/FW
X Y NEX
AU EO EW PLA
VID PRE V/R 6
DV D 6 3 P 22
SC
VC R 2 5
AU TO PC
PL AY IMA GE 1 C IR Link
DIS 4 DO M
F CA
OF EEN TOP
ON SCR UP LAP
ME
VO LU EEN IR AL
SCR WN SIGN
DO
n
Ex tro
RS-232 Control
Extron
SI 28
Surface-mount
32
S-2
NFI G/R
CO HT _
T RIG
ER NE _
ETH LEF T
Speakers
S C
RE LAY B
6
P A C 5 P
/SC E 4 3 EAM
CM C /IR D 2 C PR
A B C 1 UT Ampli ed
OU T 4 LIN EO
IAL 3
IR/ 2 SER IN 4
1 S G DIO
G 3 AU
CO NT G S IN
PR OJ -23 2 G S AU DIO Out
RS S 2
G +V IN
Y G Ps AU DIO
Rx IN 1
Tx DIO
B AU
C
VID
TCP/IP
Network
Screen
Help Desk PC
Control
Combo
VCR/DVD
DVD
/ADSP RGB 109 xi
H. SHIFT INTERF ACE W
ED LOCAL T VGA
BUFFER MONITO R OUTPU
INPUT
S-video
RGBHV
PC
Video
PArt #
60-397-81
PArt #
60-397-83
Japan Japan
+81.3.3511.7655 +81.3.3511.7655
+81.3.3511.7656 FAX +81.3.3511.7656 FAX
Projector
Control
Projector
Continued
