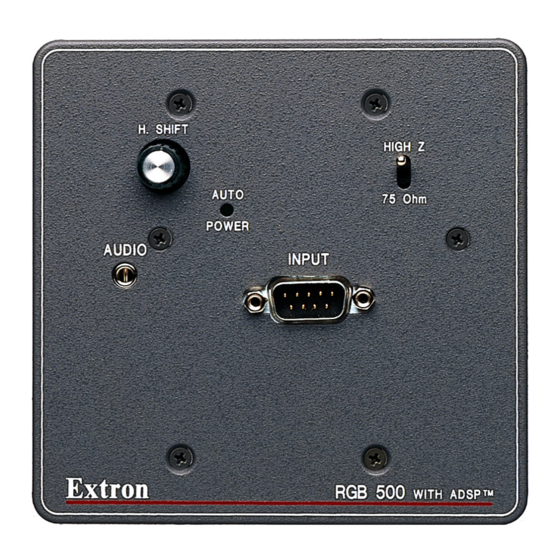

Extron electronics Interfaces RGB 500 Series Specifications

Specifications — RGB 500 Series Interfaces
Video
Gain ............................................... Unity (0.70V p-p), (0.725V p-p) 50% peaking, (0.75V p-p) 100% peaking
Bandwidth .................................... 300 MHz (-3dB)

Video input

Number/signal type ................... 1 analog RGBHV, RGBS, RGsB, RsGsBs
Connectors
RGB 500, RGB 500 Dual, RGB 508
RGB 560, RGB 560 Dual, RGB 568, RGB 560 AKM
Minimum/maximum levels ...... Analog ....... 0.3V to 1.5V p-p with no offset
Impedance .................................... 75 ohms or High Z, switchable (set to 75 ohms if no local monitor is connected)
Horizontal frequency .................. Autoscan 15 kHz to 130 kHz
Vertical frequency ....................... Autoscan 30 Hz to 120 Hz
Return loss .................................... -30dB @ 5 MHz
Maximum DC offset .................... 4.0V

Video output

Number/signal type ................... 1 analog RGBHV, RGBS, RGsB
Connectors
All models ......................... 5 BNC female
RGB 560, RGB 560 Dual, RGB 568, RGB 560 AKM
Minimum/maximum levels ...... 0.70V to 0.75V p-p with no offset and 0.7V p-p input
Impedance .................................... 75 ohms
Return loss .................................... -30dB @ 5 MHz
Sync
Input type ..................................... RGBHV TTL (±), RGBS TTL (-), RGsB 0.3V (-), RsGsBs 1.3V (-)
Output type .................................. RGBHV (±), RGBS(-), RGsB (-)
Input level ..................................... 2V to 5.5V p-p with ±0.3VDC offset (max.)
Output level .................................. 4V to 5V p-p
Input impedance .......................... 10 kohms
Output impedance ...................... 75 ohms
Max. input voltage ...................... 5.7V p-p
Max. propagation delay .............. 48 nS
Max. rise/fall time ....................... 3.5 nS
Polarity
RGB 560 AKM .................... RGBHV ...................... Polarity follows input when RGBHV is input and the sync
All other models ................ RGBHV ...................... Polarity follows input when RGBHV is input and the bottom
Audio
Gain ............................................... Unbalanced 0dB, balanced +6dB
Frequency response ..................... 20 Hz to 20 kHz, ±0.05dB
THD + Noise ................................ 0.03% @1 kHz, 0.3% @ 20 kHz at rated maximum output drive
S/N ................................................ >90dB at rated maximum output (14dBm), balanced
Stereo channel separation .......... >95dB @ 1 kHz to 20 kHz
1-2
RGB 500 Series • Specifications
1 9-pin D male, MBC/LBC cable or buffer
1 15-pin HD female
1 15-pin HD female for buffered local monitor output
polarity switch is set to Off. Sync polarity is negative if the
sync polarity switch is set to On.
RGBS, RGsB .............. Negative
panel sync polarity jumper is set to follow (pin 1 jumpered to
pin 2). Sync polarity is negative if the sync polarity jumper is
set to negative (pin 2 jumpered to pin 3).
RGBS, RGsB .............. Negative
