Extron Electronics, USA
Extron Electronics, Europe
1230 South Lewis Street, Anaheim, CA 92805
Beeldschermweg 6C, 3821 AH Amersfoort
800.633.9876 714.491.1500 FAX 714.491.1517
+31.33.453.4040 FAX +31.33.453.4050
USA
The Netherlands
© 2001 Extron Electronics. All rights reserved.
Extron Electronics, Asia
Extron Electronics Information
135 Joo Seng Rd. #04-01, PM Industrial Bldg.
ExtronWEB
™
: www.extron.com
+65.383.4400 FAX +65.383.4664
ExtronFAX
™
: 714.491.0192
Singapore 368363
24-hour access—worldwide!
User's Manual

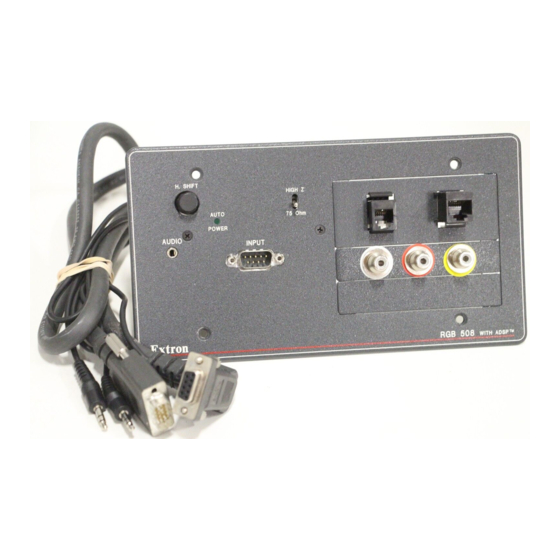

RGB 500/Dual, RGB 508,
RGB 560/Dual, RGB 568
Architectural Series Universal Interfaces with Audio and ADSP
™
68-455-02
Printed in the USA
Advertisement
Table of Contents
Related Manuals for Extron electronics Architectural Series Universal Interfaces with Audio and ADSP RGB 500/Dual
Summary of Contents for Extron electronics Architectural Series Universal Interfaces with Audio and ADSP RGB 500/Dual
- Page 1 Extron Electronics, USA Extron Electronics, Europe Extron Electronics, Asia 1230 South Lewis Street, Anaheim, CA 92805 Beeldschermweg 6C, 3821 AH Amersfoort 135 Joo Seng Rd. #04-01, PM Industrial Bldg. 800.633.9876 714.491.1500 FAX 714.491.1517 +31.33.453.4040 FAX +31.33.453.4050 +65.383.4400 FAX +65.383.4664 The Netherlands Singapore 368363 ©...
-
Page 2: Fcc Class A Notice
Precautions Safety Instructions • English Warning This symbol is intended to alert the user of important Power sources • This equipment should be operated only from the power source indicated on the product. This equipment is intended to be used with a main operating and maintenance (servicing) instructions power system with a grounded (neutral) conductor. -
Page 3: Table Of Contents
Table of Contents Chapter 1 • Introduction ... 1-1 About this Manual ... 1-2 About the RGB 500 Series Interfaces Features ... 1-2 RGB 500 Series features ... 1-2 RGB 500, RGB 500 Dual, and RGB 508 feature ... 1-3 RGB 500 Dual and RGB 560 Dual feature ... -
Page 4: Chapter 1 • Introduction
Table of Contents, cont’d RGB 508 and RGB 568 Faceplates Appendix D • Accessories and Part Numbers Interfaces ... D-2 Power Supply ... D-3 Optional Adapter Plates ... D-3 Single Type Connector Architectural Adapter Plates ... D-4 Multi Type Connector Architectural Adapter Plates ... D-6 Cables ... -
Page 5: About This Manual
Introduction Introduction, cont’d About this Manual This manual contains information about the Extron RGB 500 architectural series universal interfaces (RGB 500, RGB 500 Dual, RGB 508, RGB 560, RGB 560 Dual, and RGB 568) and on how to operate and configure them. About the RGB 500 Series Interfaces The RGB 500 Series interfaces are universal, analog, computer- video interfaces with 300 MHz (-3dB) video bandwidth. -
Page 6: Chapter 2 • Installation And Operation
Introduction, cont’d Local monitor pins — These DIP switches are used for routing local monitor signals for Macintosh 13” monitors and all other Mac/VGA-type monitors. RGB 500 Series • Introduction RGB 500 Series Chapter Two Installation and Operation Installing the RGB 500 Series Interfaces Installation and Setup Overview Installation and Operation Instructions... -
Page 7: Installing The Rgb 500 Series Interfaces
Installation and Operation Installation and Operation, cont’d Installing the RGB 500 Series Interfaces The Extron RGB 500 Series interfaces consist of a faceplate, an interface (or interfaces) in a metal enclosure, and wall mounting brackets. The RGB 508 and RGB 568 series interfaces may also include optional connector adapter plates. -
Page 8: Installing The Mounting Bracket With Clips
Installation and Operation, cont’d injury to yourself or the cables during installation. Installing the mounting bracket with clips Place 1¼” (3.18 cm) long or ¾“ (1.9 cm), #6-32 machine screws (provided) through the holes in each corner of the mounting bracket. Use the shortest screw required. Loosely fasten (using 2-3 turns) a mounting backing clip on the end of each screw. -
Page 9: Bottom Panel Features
Installation and Operation, cont’d Bottom panel features SYNC VERT. POLARITY SYNC 12-24V AC/DC WIDTH Audio output captive screw connector — This 3.5 mm, 5-pole right angle captive screw (Phoenix) connector will be used for balanced/unbalanced audio output. Attach the five wires for audio output of ground, left and right channels to the connector;... -
Page 10: Top Panel Jumper Switches
Installation and Operation, cont’d Polarity is not important: the positive or negative wire may be connected to either of the outer poles. Bottom panel DIP switches — These four DIP switches, numbered 1 to 4 from left to right, control the sync on green, serration pulse, DDSP and composite sync output options. -
Page 11: Attaching Audio Output, Power & Video Output Cables
Installation and Operation, cont’d • Use the right two pins to increase the output signal and add 100% of the maximum peaking to the signal for very long cable runs. Red Adjustment (100% gain/peaking shown) Green Adjustment (Unity shown) Blue Adjustment (50% gain/peaking shown) Attaching audio output, power, and video output cables Once the switches have been set, attach the cables that will be... -
Page 12: Setting Front Panel Switches
Installation and Operation, cont’d Setting front panel switches Set the front panel switches before cabling and testing inputs. These examples will show 2-gang size interfaces, but they apply to both 2- and 4-gang sizes and to the EC models. Front panel features — RGB 500 series, RGB 508 series H. -
Page 13: Connecting Input Cables
Installation and Operation, cont’d 1 & 2 — Local monitor pins — These are used for routing local monitor signals for Macintosh 13” monitors and all other Mac/VGA-type monitors. 1 = ON and 2 = OFF — For Macintosh 13” monitors, set DIP switch 1 to On and 2 to Off for proper sync routing for the 15-pin HD local monitor output. -
Page 14: Pre-Installation Testing/Troubleshooting
Installation and Operation, cont’d Pre-installation testing/troubleshooting Before completing the installation, test the system to make sure that the connections and interface settings are correct. Turn on the input device(s) (computer) and output device(s) (projector and/or monitor). The image should now display on the screen. If the image is not displayed at all, double-check cable connections, and ensure that all devices have power and are turned on. -
Page 15: Attaching The Faceplate
Installation and Operation, cont’d Attaching the faceplate Attach the faceplate to the interface(s) using two 3/8” (0.95 cm) long #4-40 machine screws (provided) per two- gang size (four screws total for the RGB 500 Dual, RGB 508, RGB 560 Dual and RGB 568). Use the illustration on the opposite page as a guide. - Page 16 Specifications Specifications, cont’d Video Gain ... Unity (0.70V p-p), (0.725V p-p) 50% peaking, (0.75V p-p) 100% peaking Bandwidth ... 300 MHz (-3dB) Video input Number/signal type ... 1 analog RGBHV, RGBS, RGsB, RsGsBs Connectors RGB 500, RGB 500 Dual, RGB 508, RGB 500 AKM 1 9-pin D male, MBC/LBC cable or buffer RGB 560, RGB 560 Dual, RGB 568, RGB 560 AKM 1 15-pin HD female...
-
Page 17: Appendix B • Rough-In Templates
Specifications, cont’d Impedance ... 50 ohms unbalanced, 100 ohms balanced Gain error ... ±0.1dB channel to channel Maximum level (600 ohm) ... > +14dBm, balanced at stated %THD+N General Power ... 12 to 24VAC or VDC, 0.35 A, 5 watts, external (Order the power supply separately, part #70-055-01.) - Page 18 This light gray area represents where the interface enclosure (2.50” H x 3.70” W) will be located against the rear of the RGB 500 Dual, RGB 508, RGB 560 Dual or RGB 568 front panel. The dashed line indicates the recommended cut-out area (3.875”...
-
Page 19: Appendix C • Dimensions
Rough-in Templates, cont’d RGB 500 Series • Rough-in Templates RGB 500 Series A ppendix C Dimensions RGB 500 and RGB 560 Faceplates RGB 500 Dual and RGB 560 Dual Faceplates RGB 508 and RGB 568 Faceplates... -
Page 20: Rgb 500 And Rgb 560 Faceplates
Dimensions Dimensions, cont’d Dimensions of the RGB 500 Series faceplates are provided here for those who wish to make their own customized faceplates. The diagrams are shown at 70% of actual size. All dimensions are given in inches. RGB 500 and RGB 560 Faceplates RGB 500 faceplate dimensions HAND SAND TO 0.06"... -
Page 21: Rgb 508 And Rgb 568 Faceplates Rgb 500 Series
Dimensions, cont’d RGB 508 and RGB 568 Faceplates RGB 508 faceplate dimensions HAND SAND TO 0.06" RADIUS AROUND THE TOP OF THESE EDGES. RGB 568 faceplate dimensions HAND SAND TO 0.06" RADIUS AROUND THE TOP OF THESE EDGES. RGB 500 Series • Dimensions RGB 500 Series A ppendix D Accessories and Part Numbers... - Page 22 Accessories and Part Numbers Accessories and Part Numbers, cont’d Interfaces RGB 500 Series • Accessories and Part Numbers Power Supply The RGB 500 Series interfaces require an external power supply with the following specifications: 12 to 24 volts AC or DC, 0.5 A, with a right angle 3.5 mm captive screw connector (3-pole) for connection to the interface.
- Page 23 ¼ " ¼ " . a . . a . . a . . a . ¼ " ¼ "...
-
Page 24: Cables
Accessories and Part Numbers, cont’d RGB 500 Series • Accessories and Part Numbers Cables Male-to-male VGA cables (for RGB 560) VGA M6’ MHR VGA M3’ MHRA (with audio) VGA M6’ MHRA (with audio) VGA M12’ MHRA (with audio) ° Male-to-male 90 VGA cables (for RGB 560) VGAM 90 MHRA 6’... -
Page 25: Other Accessories
Accessories and Part Numbers, cont’d Adapter laptop breakout cables Mac 15-pin HD F adapter cable kit w/audio 13W3 15-pin HD F adapter cable kit w/audio High-resolution cables BNC-5-3’HR BNC-5-6’HR BNC-5-12’HR BNC-5-25’HR BNC-5-50’HR BNC-5-75’HR BNC-5-100’HR BNC-5-3’HRP (plenum) BNC-5-6’HRP (plenum) BNC-5-12’HRP (plenum) BNC-5-25’HRP (plenum) BNC-5-50’HRP (plenum) BNC-5-75’HRP (plenum) - Page 26 Accessories and Part Numbers, cont’d RGB 500 Series • Accessories and Part Numbers D-10...
