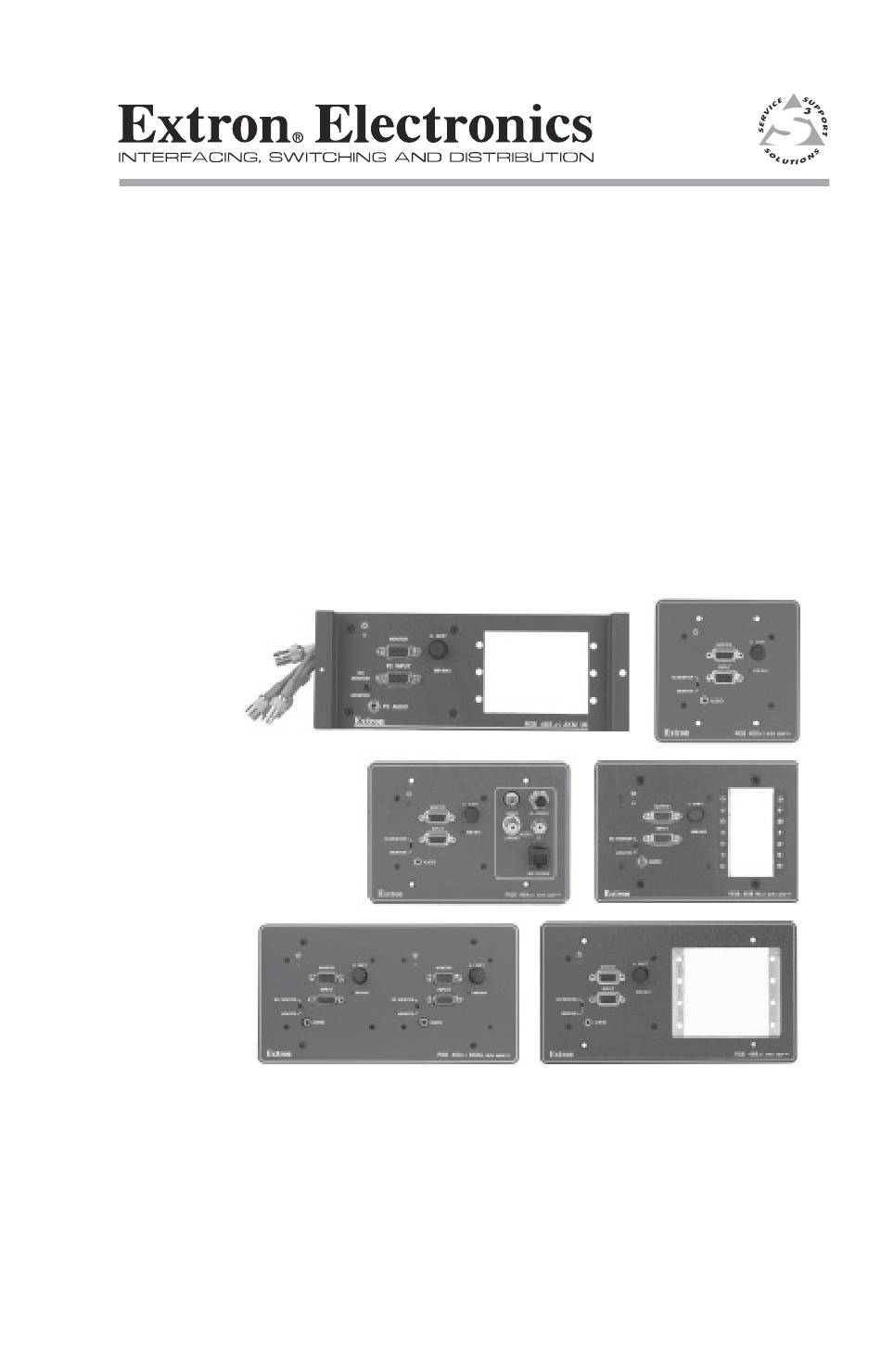

  • Page 1 im Vertrieb von CAMBOARD Electronics User’s Manual RGB 460xi , 460xi Dual, 464xi , 468xi , and 468 Mxi Wall and Floor box Mountable Interfaces with Euro Channel and AKM UK versions 68-542-01 Rev. E Printed in the USA www.camboard.de Tel.
  • Page 2 im Vertrieb von CAMBOARD Electronics Precautions Safety Instructions • English Warning This symbol is intended to alert the user of important Power sources • This equipment should be operated only from the power source indicated on the product. This equipment is intended to be used with a main operating and maintenance (servicing) instructions power system with a grounded (neutral) conductor.

  • Page 3: Table Of Contents

    AAP/MAAP Availability ............A-8 All trademarks mentioned in this manual are the properties of their respective owners. 68-542-01 Rev. E Printed in the USA 11 03 www.camboard.de Tel. 07131 911201 ce-info@camboard.de RGB 460xi Series • Table of Contents Fax 07131 911203...
  • Page 4 Vertrieb von CAMBOARD Electronics www.camboard.de Tel. 07131 911201 ce-info@camboard.de RGB 460xi Series • Table of Contents Fax 07131 911203...

  • Page 5: Chapter 1 • Introduction

    Vertrieb von CAMBOARD Electronics RGB 460 xi xi xi xi xi Series Chapter One Introduction About this Manual About the RGB 460xi Series Features www.camboard.de Tel. 07131 911201 ce-info@camboard.de Fax 07131 911203...

  • Page 6: About This Manual

    Unless otherwise noted, the term “RGB 460xi” or “interface” is used throughout this manual to refer collectively to all models in the RGB 460xi Series. Detailed mounting instructions are available in other Extron documentation: •...

  • Page 7: Features

    Display Sync Processing™ (DDSP™), to ensure proper displays without altering sync pulse timing or width. Stereo audio — Unbalanced stereo audio inputs can be output as balanced or unbalanced unamplified stereo audio. www.camboard.de Tel. 07131 911201 ce-info@camboard.de RGB 460xi Series • Introduction Fax 07131 911203...
  • Page 8 Vertrieb von CAMBOARD Electronics www.camboard.de Tel. 07131 911201 ce-info@camboard.de RGB 460xi Series • Introduction Fax 07131 911203...

  • Page 9: Chapter 2 • Installation And Operation

    im Vertrieb von CAMBOARD Electronics RGB 460 xi xi xi xi xi Series Chapter Two Installation and Operation Installation Overview Front Panel Features and Cabling Rear Panel Features and Cabling Euro Channel and Floor Box Versions Adapter Plate (AAP/MAAP) Mounting Pre-installation Testing Interface Mounting Application Examples...

  • Page 10: Installation Overview

    CAUTION authorized personnel only. UL Listed electrical boxes are recommended. See “UL requirements” in this chapter. To install and set up an RGB 460xi Series interface, follow these steps: Turn off all equipment. Disconnect the computer, the interface, and the output devices (e.g., projector/monitor, speakers, etc.) from the power source.

  • Page 11: Front Panel Features And Cabling

    AUDIO AAPs (MAAPs). RGB 468 xi RGB 468 xi AKM UK H. SHIFT MONITOR PC INPUT MIN/MAX MONITOR MONITOR PC AUDIO RGB 468xi AKM UK www.camboard.de Tel. 07131 911201 ce-info@camboard.de RGB 460xi Series • Installation and Operation Fax 07131 911203...
  • Page 12 ) have been reached. Continually turning the horizontal shift control knob in the same direction after the limit has been reached will cause the LED to continually blink. www.camboard.de Tel. 07131 911201 ce-info@camboard.de RGB 460xi Series • Installation and Operation Fax 07131 911203...
  • Page 13 AAPs from the rear (as shown). 4-gang Wall Box IF T N IT W IT /M A M IN N IT D IO N IT RGB 468xi www.camboard.de Tel. 07131 911201 ce-info@camboard.de RGB 460xi Series • Installation and Operation Fax 07131 911203...

  • Page 14: Rear Panel Features And Cabling

    Attach foil and braided shields to ground connections. Rear Panel Features and Cabling Rear panel of the RGB 464 xi xi xi xi xi interface www.camboard.de Tel. 07131 911201 ce-info@camboard.de RGB 460xi Series • Installation and Operation Fax 07131 911203...
  • Page 15 Off — The interface does not output serration pulses. On — The interface outputs serration pulses in the vertical sync interval. www.camboard.de Tel. 07131 911201 ce-info@camboard.de RGB 460xi Series • Installation and Operation Fax 07131 911203...
  • Page 16 Medium (middle position) — mid-level peaking and gain. Maximum (top position) — maximum amount of peaking and gain. (Select this for use with longer cables.) www.camboard.de Tel. 07131 911201 ce-info@camboard.de RGB 460xi Series • Installation and Operation Fax 07131 911203...
  • Page 17 Network pass-through RJ-45 connector — If this connector is not required, a blank cover is supplied to fill this faceplate opening. www.camboard.de Tel. 07131 911201 ce-info@camboard.de RGB 460xi Series • Installation and Operation Fax 07131 911203...

  • Page 18: Euro Channel And Floor Box Versions

    Mounting an adapter plate (AAP shown) Repeat steps 1 and 2 to mount other AAPs/MAAPs. Cover any openings in the interface with blank AAP/MAAP plates. www.camboard.de Tel. 07131 911201 ce-info@camboard.de 2-10 RGB 460xi Series • Installation and Operation Fax 07131 911203...

  • Page 19: Pre-Installation Testing

    If the picture appears and is stable, but it has ghosting or blooming, verify that the video input is properly www.camboard.de Tel. 07131 911201 ce-info@camboard.de RGB 460xi Series • Installation and Operation 2-11 Fax 07131 911203...

  • Page 20: Interface Mounting

    Once the system has been cabled and tested, the interface can be installed in the wall, furniture, or floor box. To mount the interface, refer to the installation guide that addresses your specific requirements. www.camboard.de Tel. 07131 911201 ce-info@camboard.de 2-12 RGB 460xi Series • Installation and Operation Fax 07131 911203...

  • Page 21: Application Examples

    IF T N IT M IN IN P N IT D IO N IT W IT Extron RGB 460 xi SVGA Compatible Computer w/ Audio www.camboard.de Tel. 07131 911201 ce-info@camboard.de RGB 460xi Series • Installation and Operation 2-13 Fax 07131 911203...
  • Page 22 Vertrieb von CAMBOARD Electronics www.camboard.de Tel. 07131 911201 ce-info@camboard.de 2-14 RGB 460xi Series • Installation and Operation Fax 07131 911203...

  • Page 23: Appendix A • Specifications

    im Vertrieb von CAMBOARD Electronics RGB 460 xi xi xi xi xi Series A ppendix A Specifications, Part Numbers, and Accessories Specifications Ordering Information AAP/MAAP Availability www.camboard.de Tel. 07131 911201 ce-info@camboard.de Fax 07131 911203...

  • Page 24: Specifications

    Minimum/maximum levels ....Analog: 0.7V to 0.9V p-p (switch selectable) w/ peaking and 0.7V p-p input Impedance ..........75 ohms Return loss ........... <-30dB @ 5 MHz www.camboard.de Tel. 07131 911201 ce-info@camboard.de RGB 460xi Series • Specifications, Parts, and Accessories Fax 07131 911203...
  • Page 25 (L), ring (R), sleeve (ground) Impedance ..........>5 kohms unbalanced, DC coupled Nominal level ........-10dBV (316mV) Maximum level ........+8.5dBu (unbalanced) at 1%THD+N www.camboard.de Tel. 07131 911201 ce-info@camboard.de RGB 460xi Series • Specifications, Parts, and Accessories Fax 07131 911203...
  • Page 26 RGB 464xi/468 Mxi faceplate 4.5" H x 6.4" W x 0.1" D (3 gang) (11.4 cm H x 16.3 cm W x 0.3 cm D) www.camboard.de Tel. 07131 911201 ce-info@camboard.de RGB 460xi Series • Specifications, Accessories, Part Numbers Fax 07131 911203...
  • Page 27 Compliances ........CE, FCC Class A, VCCI, AS/NZS, ICES MTBF ............. 30,000 hours Warranty ..........3 years parts and labor Specifications are subject to change without notice. www.camboard.de Tel. 07131 911201 ce-info@camboard.de RGB 460xi Series • Specifications, Accessories, Part Numbers A-5 Fax 07131 911203...

  • Page 28: Ordering Information

    Installation guide 68-904-01 ________________________________________ This manual (#68-542-01) ships with all RGB 460xi Series interface models. Depending on mounting location, one of the following installation guides ships with the interface: RGB 460 MK Installation Guide (#68-636-02), RGB 400xi Series Wall Box Installation Guide (#68-636-03), RGB 460/470 Steel City Box Installation Guide (#68-636-04), or RGB 460xi/472xi FSR Installation Guide (#68-636-05).

  • Page 29: Accessories

    BNC-5-12’HRP (plenum) 26-378-03 BNC-5-25’HRP (plenum) 26-378-04 BNC-5-50’HRP (plenum) 26-378-05 BNC-5-75’HRP (plenum) 26-378-06 BNC-5-100’HRP (plenum) 26-378-07 Bulk installation cable (14-conductor, non-plenum), 500’ HR 22-120-02 www.camboard.de Tel. 07131 911201 ce-info@camboard.de RGB 460xi Series • Specifications, Accessories, Part Numbers A-7 Fax 07131 911203...

  • Page 30: Aap/Maap Availability

    2 - RCA to Solder Cups 2 - RJ-11 3 - RCA to Solder Cups 2 - S-video 1 - D-9 Pass Through Connector Sample architectural adapter plates www.camboard.de Tel. 07131 911201 ce-info@camboard.de RGB 460xi Series • Specifications, Accessories, Part Numbers Fax 07131 911203...
  • Page 31 Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
