Extron electronics Interface RGB 120p User Manual

Specifications
Input Video Signal:
.. Analog: .5 to 1.2 volts p-p
.. ECL: .8 to 1 volt p-p
Input Sync Signal:
.. Sync on Green (RGsB)
.. Sync on Red, Green and Blue (RsGsBs)
.. Composite Sync (RGBS)
.. Separate H&V (RGBHV)
Output Signal:
.. Video: .5 to 1 volt p-p
Frequency Compatibility:
.. Horizontal: 15-125 kHz (automatic)
.. Vertical: 30-170 Hz (automatic)
RGB Video Bandwidth:
.. 200 MHz (2.1 nS Rise Time)
Wall Mount Power Supply:
.. 115 VAC, 60 Hz to 15 VDC/900 mA

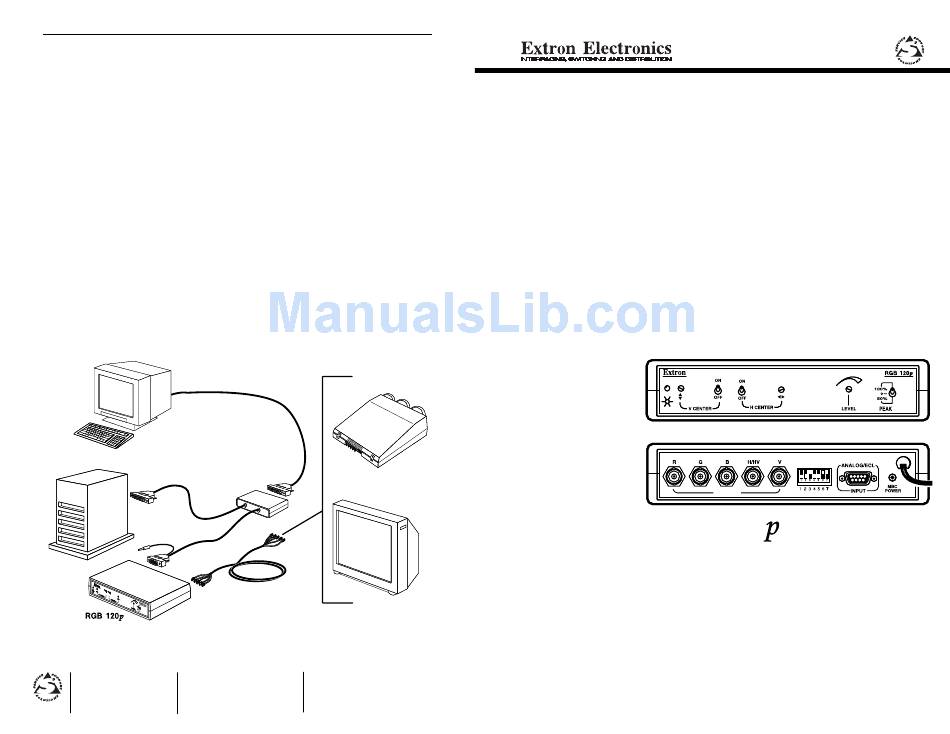

Below is an example of how an RGB 120 p may be connected to a
computer, through an MBC buffer.
Local
Monitor
MBC Buffer
Workstation
Extron Electronics Extron Electronics, Europe
1230 South Lewis Street Beeldschermweg 6C
Anaheim, CA 92805 3821 AH Amersfoort
SM 714-491-1500 FAX 714-491-1517 +31-33-453-4040 FAX +31-33-453-4050
U.S.A. The Netherlands
Specifications
Large Screen Projector
Or
Data Monitor
Extron Electronics, Asia 79-04
68-292-01
41B Kreta Ayer Road
Rev. C
Singapore 089003
+65-226-0015 FAX +65-226-0019
Singapore
User's Guide
OUTPUTS
RGB 120 Interface
(P/N 60-130-01)
