Winding From The Second Spool Pin; Winding From The Third Spool Pin - Pfaff Sewing Machine Instruction Book

2.

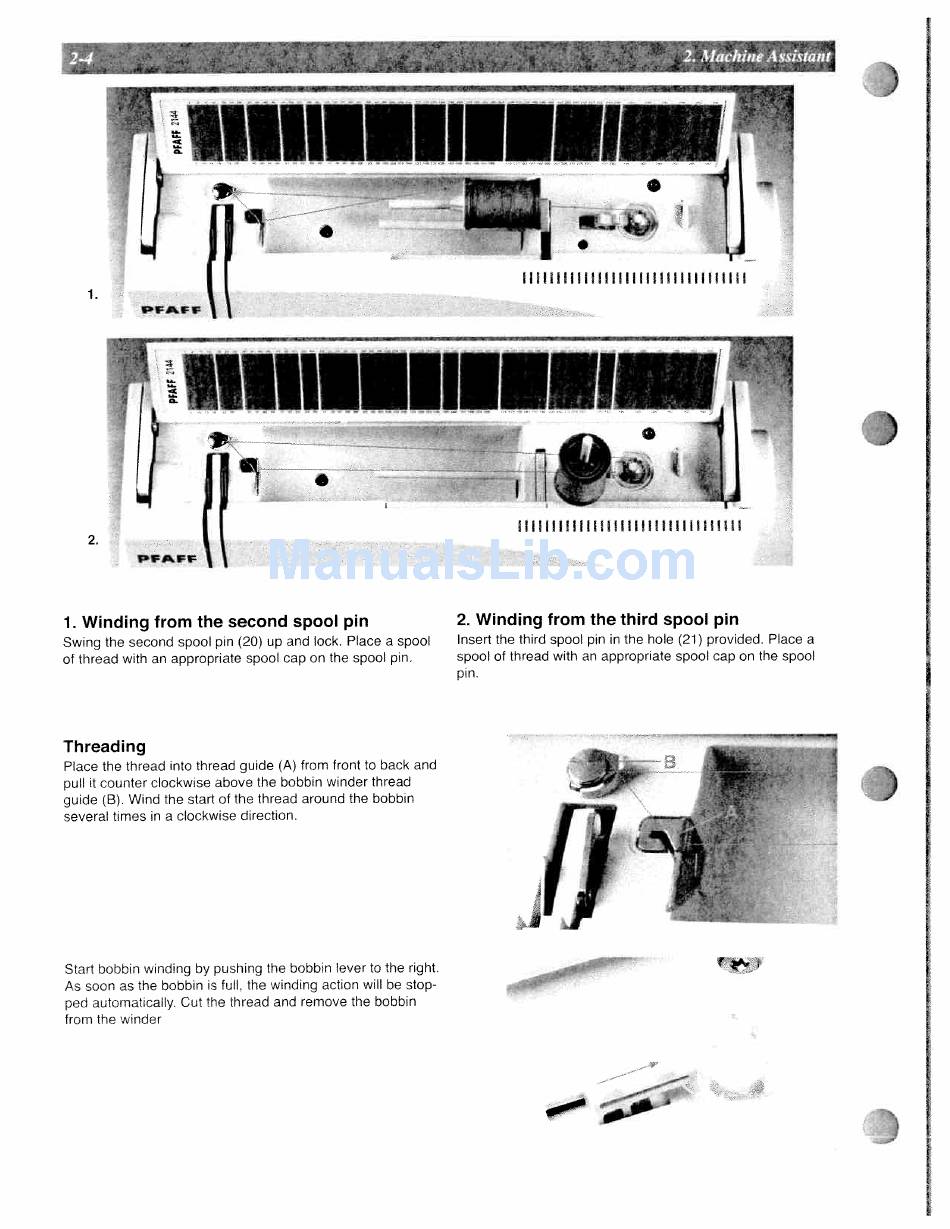

1. Winding from the second spool pin
Swing the second spool pin (20) up and lock. Place a spool
of thread with an appropriate spool cap on the spool pin.
2. Winding from the third spool pin
Insert the third spool pin in the hole (21) provided. Place a
spool of thread with an appropriate spool cap on the spool
pin.
Threading
Place the thread into thread guide (A) from front to back and
pull it counter clockwise above the bobbin winder thread
guide (B). Wind the start of the thread around the bobbin
several times in a clockwise direction.
Start bobbin winding by pushing the bobbin lever to the right.
As soon as the bobbin is full, the winding action will be stop
ped automatically. Cut the thread and remove the bobbin
from the winder
