CONTENTS Introduction ................3 Important safety information .............4 Know your unit ................6 Transferring data to the PC ............7 Care and maintenance ..............8 Troubleshooting tips ..............9 Specifications ................10 About the communication function .........11 Limited warranty ..............12...

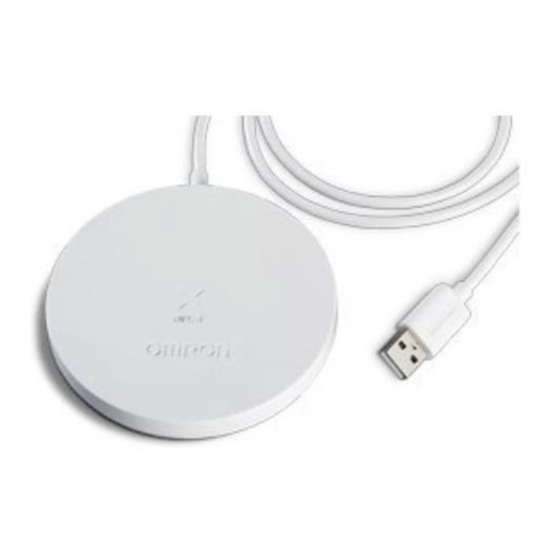

INTRODUCTION Thank you for purchasing the OMRON NFC Communication Tray. Fill-in for future reference DATE PURCHASED: ________ • Staple your purchase receipt here • Register your product online at www.register-omron.com Please read this instruction manual thoroughly before using the unit.
IMPORTANT SAFETY INFORMATION To assure the correct use of the product, basic safety use should always be followed including the warnings and cautions listed in this instruction manual. SAFETY SYMBOLS USED IN THIS INSTRUCTION MANUAL Indicates a potentially hazardous situation which, if not WARNING avoided, could result in death or serious injury.
Page 5
CARE AND MAINTENANCE Do not disassemble or modify the unit. Changes or modifications not approved by Omron Healthcare will void the user warranty. Dispose of the unit and components according to applicable local regulations. Unlawful disposal may cause environmental pollution.
TRANSFERRING DATA TO THE PC In order to transfer the data to computer, software needs to be downloaded first. For more instruction regarding the software, please refer to the communication device’s Instruction Manual.
To keep the unit in the best condition and protect it from damage, follow the directions listed below: CAUTION Do not disassemble or modify the unit. Changes or modifications not approved by Omron Healthcare will void the user warranty. Clean the unit with a soft dry cloth.
PCs. • If the data transfer is still not working after trying the above troubleshooting tips, there may be a product failure occurring. For failure of the product, please contact the Omron Healthcare s Customers Service. ’...
SPECIFICATIONS OMRON NFC Communication Tray Model: HHX-IT3-Z Communication system: Based on NFC-F (ISO/IEC 18092), Based on RFID (ISO/IEC 15693) Power supply: 5VDC (supplied via USB) Operating Temperature/ 41˚F to 95˚F (+5˚C to +35˚C) / 30% to 85%RH Humidity: Weight: Approx. 2 1/4'' oz (65 g) (including USB cable) Dimensions: Approx.
ABOUT THE COMMUNICATION FUNCTION FCC CAUTION: This unit complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This unit may not cause harmful interference, and (2) this unit must accept any interference received, including interference that may cause undesired operation.
LIMITED WARRANTY Your OMRON NFC Communication Tray is warranted to be free from defects in materials and workmanship appearing within 1 year from the date of purchase, when used in accordance with the instructions provided with the unit. The above warranties extend only to the original retail purchaser.
Page 13
LIMITED WARRANTY OMRON SHALL NOT BE LIABLE FOR LOSS OF USE OR ANY OTHER SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT COSTS, EXPENSES OR DAMAGES. This warranty provides you with specific legal rights, and you may have other rights that vary by jurisdiction. Because of special local requirements, some of the above limitations and exclusions may not apply to you.
