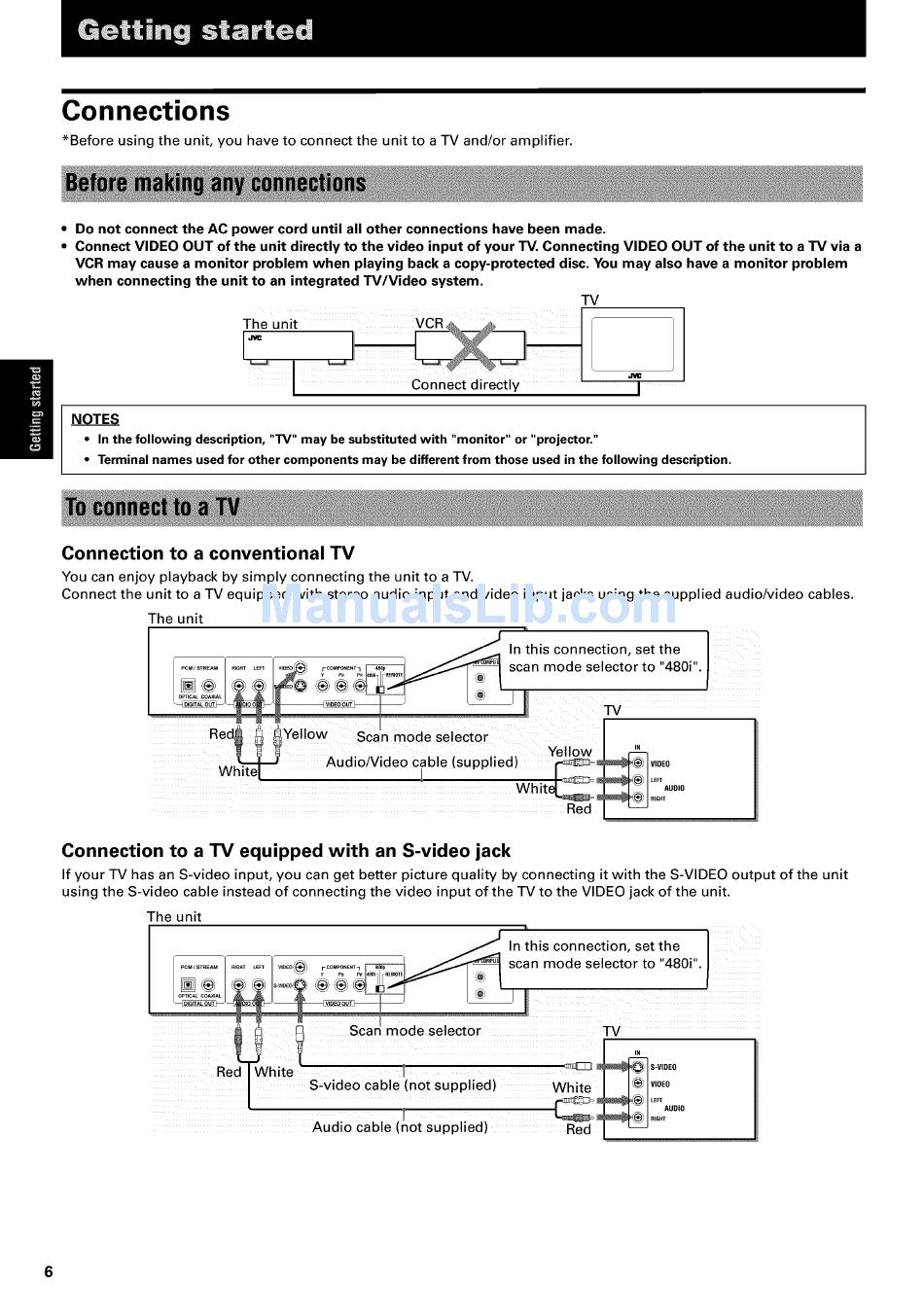

Connections
*Before using the unit, you have to connect the unit to a TV and/or amplifier.
• Do not connect the AC power cord until all other connections have been made.
• Connect VIDEO OUT of the unit directly to the video input of your TV. Connecting VIDEO OUT of the unit to a TV via a
VCR may cause a monitor problem when playing back a copy-protected disc. You may also have a monitor problem
when connecting the unit to an integrated W/Video system.
TV
Jvc
I
NOTES
• In the following description, "TV" may be substituted with "monitor" or "projector."
• Terminal names used for other components may be different from those used in the following description.
Connection to a conventional TV
You can enjoy playback by simply connecting the unit to a TV.
Connect the unit to a TV equipped with stereo audio input and video input jacks using the supplied audio/video cables.
The unit
In this connection, set the
......... scan mode selector to "480i".
Y PB PR
TV
Red_ _ _Yellow Scan mode selector
Audio/Video cable (supplied) Y__ V,0EO
....
Connection to a TV equipped with an S-video jack
If your TV has an S-video input, you can get better picture quality by connecting it with the S-VIDEO output of the unit
using the S-video cable instead of connecting the video input of the TV to the VIDEO jack of the unit.
The unit
In this connection, set the
........... scan mode selector to "480i".
_ I
I scar mode selector TV
te i _ s-v,oE0
S,video cable (not supplied)White I .1_1 v'°E°
Audiocable(notsupplied) Red J _
