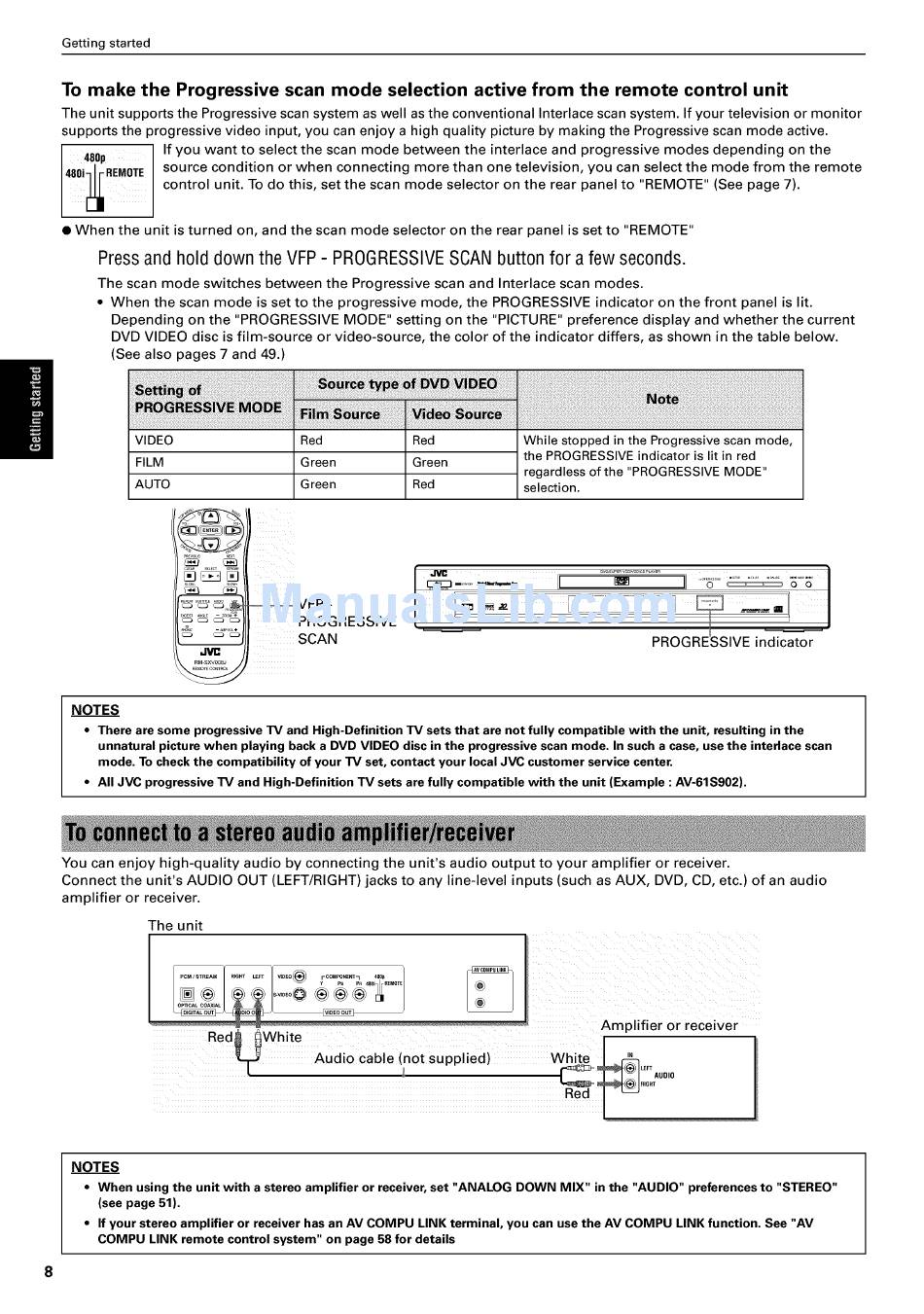

JVC XV-S5OOBK Instructions Manual page 10

Getting started
To make the Progressive scan mode selection active from the remote control unit
The unit supports the Progressive scan system as well as the conventional Interlace scan system. If your television or monitor
supports the progressive video input, you can enjoy a high quality picture by making the Progressive scan mode active.
480p If you want to select the scan mode between the interlace and progressive modes depending on the
480i_lr_ R eM_ OTE source condition or when connecting more than one television, you can select the mode from the remote
control unit. To do this, set the scan mode selector on the rear panel to "REMOTE" (See page 7).
• When the unit is turned on, and the scan mode selector on the rear panel is set to "REMOTE"
Press and hold down the VFP - PROGRESSIVE SCAN button for a few seconds.
The scan mode switches between the Progressive scan and Interlace scan modes.
• When the scan mode is set to the progressive mode, the PROGRESSIVE indicator on the front panel is lit.
Depending on the "PROGRESSIVE MODE" setting on the "PICTURE" preference display and whether the current
DVD VIDEO disc is film-source or video-source, the color of the indicator differs, as shown in the table below.
(See also pages 7 and 49.
VIDEO
FILM
AUTO
Red Red
Green Green
G ree n Red
While stopped in the Progressive scan mode,
the PROGRESSIVE indicator is lit in red
regardless of the "PROGRESSIVE MODE"
selection.
_J tz_
t_ E_
-ivc
_VFP -
PROGRESSIVE
SCAN
PROGREISSIVE indicato_-r-
NOTES
• There are some progressive TV and High-Definition TV sets that are not fully compatible with the unit, resulting in the
unnatural picture when playing back a DVD VIDEO disc in the progressive scan mode. In such a case, use the interlace scan
mode. To check the compatibility of your TV set, contact your local JVC customer service center.
• All JVC progressive TV and High-Definition TV sets are fully compatible with the unit (Example : AV-61S902).
You can enjoy high-quality audio by connecting the unit's audio output to your amplifier or receiver.
Connect the unit's AUDIO OUT (LEFT/RIGHT) jacks to any line-level inputs (such as AUX, DVD, CD, etc.) of an audio
amplifier or receiver.
The unit
Audio cable (not supplied)
Amplifier or receiver
I
White I _
Red
NOTES
• When using the unit with a stereo amplifier or receiver, set "ANALOG DOWN MIX" in the "AUDIO" preferences to "STEREO"
(see page 51).
• If your stereo amplifier or receiver has an AV COMPU LINK terminal, you can use the AV COMPU LINK function. See "AV
COMPU LINK remote control system" on page 58 for details
